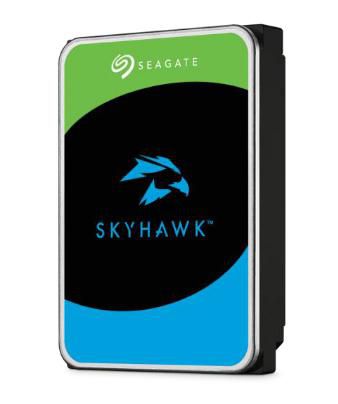

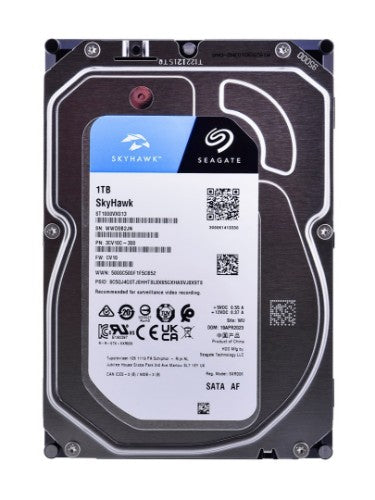

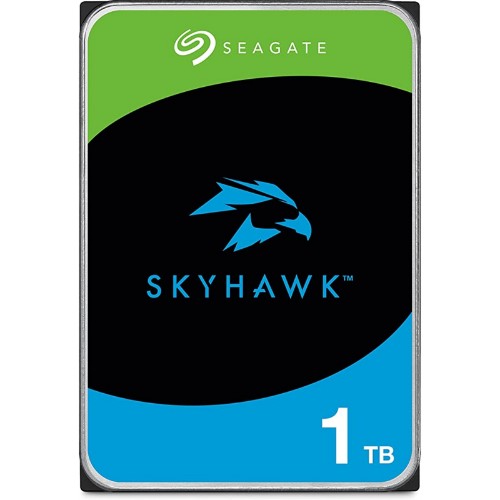

Seagate SkyHawk internal hard drive 1 TB 256 MB 3.5" Serial ATA III

1TB, 256MB, 3.5", SATA 6 Gb/s, CMR

Description

SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.

ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras.

SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.

Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate's in-house data recovery services.

RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.

ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.

1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.

Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability

Specifications

Hard drive
Component for	PC
HDD sustained transfer rate	180 MiB/s
HDD interface transfer rate	6 Gbit/s
Workload rate limit	180 TB/year
Mean time between failures (MTBF)	1000000 h
Start/stop cycles	600000
HDD size	3.5"
HDD capacity	1 TB
Features
Type	HDD
Component for	PC
HDD sustained transfer rate	180 MiB/s
HDD interface transfer rate	6 Gbit/s
Workload rate limit	180 TB/year
Interface	Serial ATA III
Mean time between failures (MTBF)	1000000 h
Start/stop cycles	600000
HDD size	3.5"
HDD capacity	1 TB
Storage drive buffer size	256 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^14 bits read
Rotational Vibration (RV) sensors	Yes
24/7 operation	Yes
RV sensor(s)	Yes
Maximum number of cameras supported	64
Power
Power consumption (typical)	3.7 W
Power consumption (off)	0.25 W
Power consumption (idle)	2.5 W
Start-up current	1.8 A
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Technical details
Interface	Serial ATA III
Mean time between failures (MTBF)	1000000 h
Weight & dimensions
Width	101.6 mm
Weight	415 g
Height	147 mm
Depth	20.2 mm
Other features
Interface	Serial ATA III
Maximum number of cameras supported	64
