StarTech.com

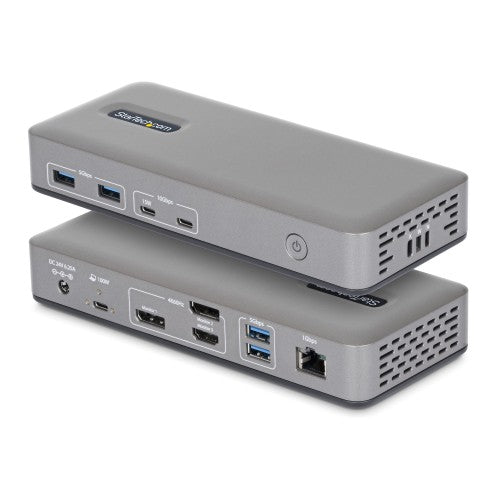

StarTech.com 199UE-USBC-DOCK laptop dock/port replicator Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Grey

SKU 199UE-USBC-DOCK
£99.81
£99.81
Excluding taxes
StarTech.com 199UE-USBC-DOCK, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 10,100,1000 Mbit/s, Grey, 10 Gbit/s, 4K Ultra HD

Description

StarTech.com 199UE-USBC-DOCK. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 24 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Linux operating systems supported: Ubuntu 24.04 LTS

Specifications

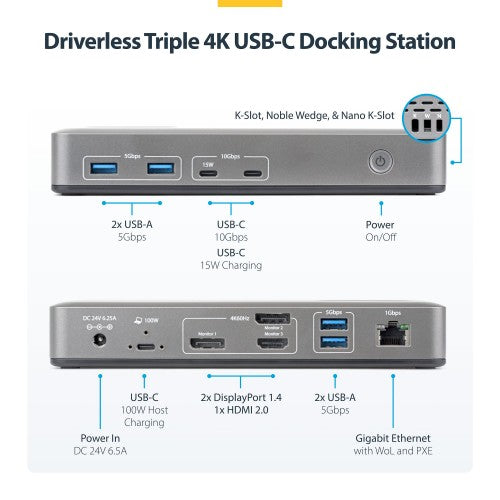

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity 0
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.0
DisplayPorts quantity 1
Microphone in No
Headphone outputs 0
DC-in jack Yes
Connectivity technology Wired

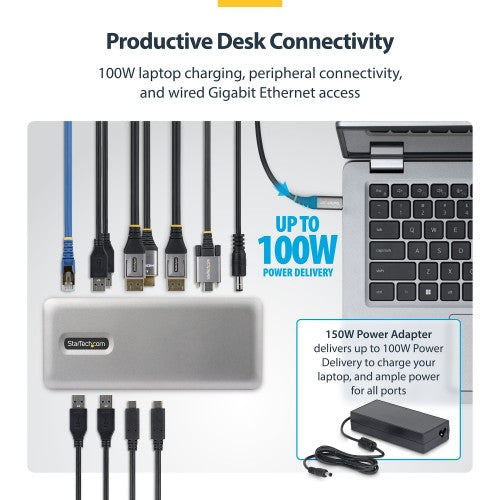

USB Power Delivery (USB PD) Yes
USB Power Delivery revision 3.0
DisplayPort version 1.4
Network
Full duplex Yes
Wake-on-LAN ready Yes
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports 1
Performance
Maximum digital resolution 4096 x 2160 pixels
Full duplex Yes

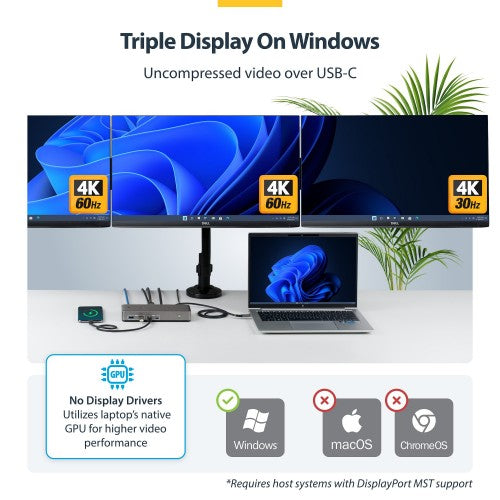

Number of displays supported 2
On/off switch Yes
Product colour Grey
Card reader integrated No
Cable lock slot Yes
LED indicators Yes
Data transfer rate 10 Gbit/s

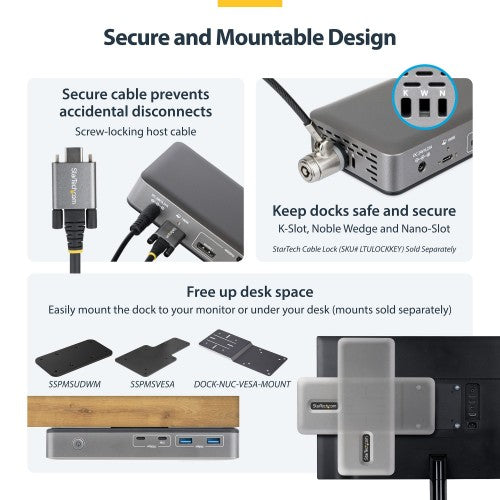

Cable lock slot type Kensington, Nano, Wedge, Noble
HD type 4K Ultra HD
Mean time between failures (MTBF) 84290 h
Technical details
Product colour Grey
Cable lock slot Yes
Data transfer rate 10 Gbit/s
Compliance certificates RoHS, Federal Communications Commission (FCC)
Products per master (outer) case 10 pc(s)
Master (outer) case width 430 mm
Master (outer) case length 270 mm
Master (outer) case height 280 mm
Storage
Card reader integrated No
Power
Input current 2.5 A
Compatible power plug types EU, UK
AC input voltage 100 - 240 V
Power consumption (typical) 150 W
Output voltage 24 V
Output current 6.25 A
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported Ubuntu 24.04 LTS
Indication
LED indicators Yes
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) 10 - 70 °C
Operating relative humidity (H-H) 10 - 85%
Weight & dimensions
Weight 300 g
Width 79 mm
Depth 190 mm
Height 27 mm
Package weight 1 kg
Package width 250 mm
Package depth 205 mm
Package height 50 mm
Design
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Product colour Grey
Cable lock slot Yes
LED indicators Yes
Cable lock slot type Kensington, Nano, Wedge, Noble
Packaging data
Package weight 1 kg
Package width 250 mm
Package depth 205 mm
Package height 50 mm

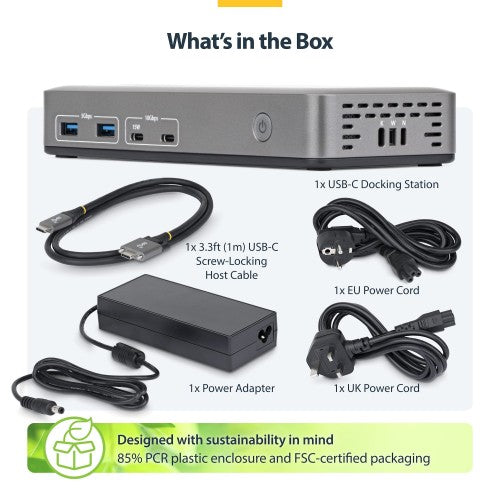

Packaging content
Cables included USB Type-C
AC adapter included Yes
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case width 430 mm
Master (outer) case length 270 mm
Master (outer) case height 280 mm
Other features
Chipset VMM5320, VL103R, VL171, VL822, VP226, VL817, RTL8153E
