StarTech.com 1m DisplayPort 2.1 Cable, VESA Certified DP40 DisplayPort Cable w/UHBR10/HDR/HDCP 2.2, 8K 60Hz/4K 144Hz w/DSC 1.2a, 40Gbps, DP 2.1 Cable, UHD Monitor Cord, M/M

StarTech.com 1m DisplayPort 2.1 Cable, VESA Certified DP40 DisplayPort Cable w/UHBR10/HDR/HDCP 2.2, 8K 60Hz w/DSC 1.2a

Key Features

• HIGH PERFORMANCE: DP 2.1 Cable is designed for UHBR10-enabled DisplayPort devices; DP40 supports 40Gbps for 8K 60Hz video w/DSC and 32-channel audio; Latching DP connectors; Flexible TPE jacket routes easily through tight spaces

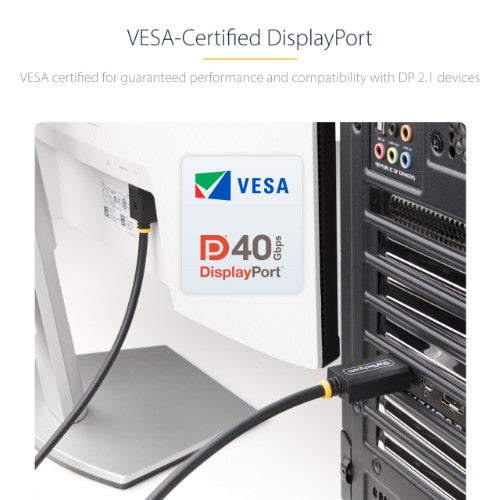

• FULL DP COMPATIBILITY: DP 2.1 Cable is VESA certified for guaranteed performance and compatibility with DP 2.1 devices, ensuring reliable signal consistency and smooth video playback on any DisplayPort display; Backward compatible with DP 2.0/1.4/1.2

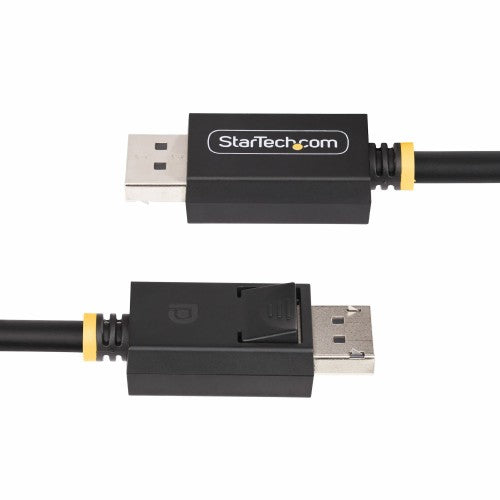

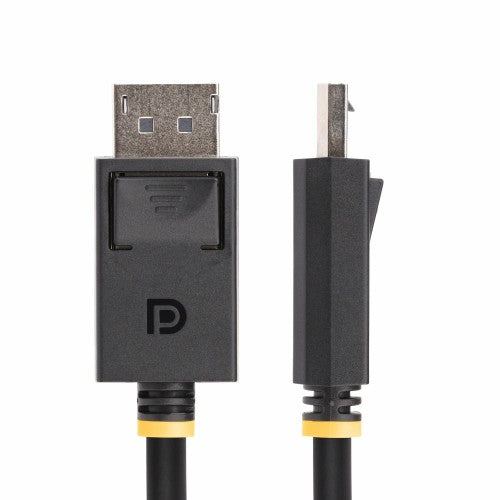

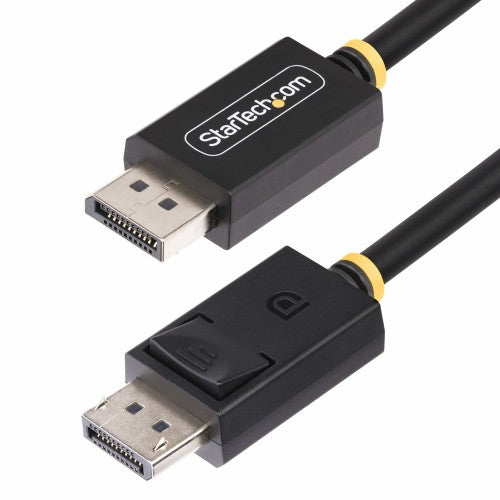

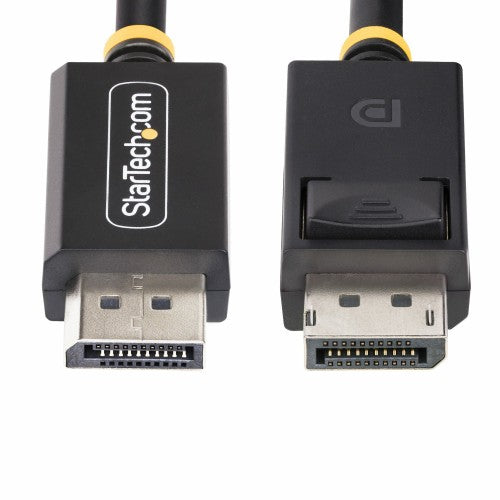

• QUALITY CONSTRUCTION: Nickel-plated ends rated beyond 10,000 insertions; Latching DP connectors prevent accidental disconnections; Aluminum mylar shield for enhanced EMI protection; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant
• APPLICATIONS: Ideal for high resolution 8K displays; Up to 144Hz refresh rate at 4K resolution; Suitable for high performance GPUs and AV workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a UHD docking station
• SPECS: Black; 1-meter; VESA-Certified DisplayPort 2.1; DP40 (40Gbps); Supports UHBR10/HDR/MST/DSC 1.2/HDCP 2.2; 8K 60Hz w/DSC, 4K 144Hz, 1440p 240Hz; 32-ch Audio; Backward Compatible w/DP 2.0/1.4/1.2; 30AWG; 6.5mm (0.26in) O.D.

Description

Facilitate higher refresh rates and 8K 60Hz video on UHBR10-enabled DisplayPort devices

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP40 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.

Durable Design

This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.

Supported DisplayPort 2.1 Features:

This DP40 DisplayPort cable supports the following DP 2.1 features:

• Resolutions up to 8K 60Hz w/DSC, using a compatible DP source and display
• UHBR10 supports high refresh rates including 4K 120Hz and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions

This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

The StarTech.com Advantage

Specifications

Features
Cable shielding	Aluminum mylar foil
Latching connectors	Yes
Product colour	Black
Cable length	1 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel
Cable material	Copper
Jacket material	Thermoplastic elastomer (TPE)
AWG wire size	30
DisplayPort version	2.1
Data transfer rate	40 Gbit/s
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	3840 x 2160, 7680 x 4320
HDCP	Yes
High Dynamic Range (HDR) supported	Yes
Maximum refresh rate	144 Hz
Fire-resistance rating	VW-1
Multi-Stream Transport (MST)	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDCP version	2.2
Display Stream Compression (DSC)	Yes
Display Stream Compression (DSC) version	1.2a
Channels quantity	32 channels
Cable type	Round cable
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Doesn't contain	Halogen
Weight & dimensions
Cable diameter	6.5 mm
Weight	66 g
Package weight	70 g
Package width	128 mm
Package depth	220 mm
Package height	21 mm
Packaging data
Cable diameter	6.5 mm
Package weight	70 g
Weight	66 g
Package width	128 mm
Package depth	220 mm
Package height	21 mm
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Sustainability compliance	Yes
Doesn't contain	Halogen
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	80 pc(s)
Master (outer) case width	500 mm
Master (outer) case length	320 mm
Master (outer) case height	210 mm
