StarTech.com 2m (6.6ft) VESA Certified DisplayPort Cable - 10 Pack - DisplayPort 1.2 Cord with Latches, 4K 60Hz UHD, DP to DP Cable for Monitor, Latching DP Connectors

StarTech.com 2m (6.6ft) VESA Certified DisplayPort Cable - 10 Pack - DisplayPort 1.2 Cable/Cord, 4K60Hz, Latching DP Connectors

Key Features

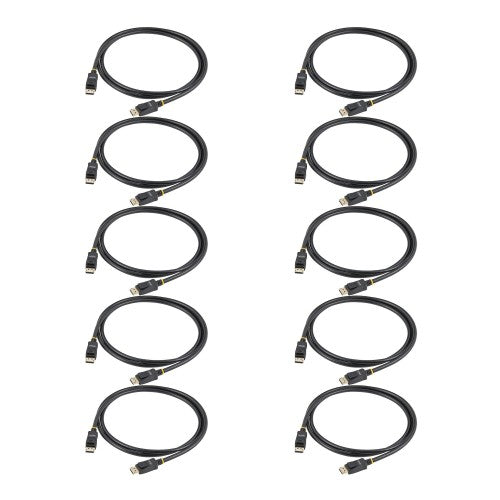

• PRACTICAL 10 PACK: These VESA Certified DisplayPort 1.2 cables come in a practical 10-pack to facilitate larger deployments and multi-monitor workstation setups; Supports 4K 60Hz video with HBR2, 8Ch Audio, Multi-Stream Transport (MST), and 3D stereo audio
• QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Al-Mylar foil with copper braid for enhanced EMI protection; Backward compatible with DP 1.1
• APPLICATIONS: Convenient 10-pack is ideal for offices/boardroom/conference room/classroom setups and professional multi-display installations w/high-performance GPUs; Use with 4K UHD or 1080p docking stations/monitors/projectors/video walls
• RELIABLE DESIGN: Durable ABS connectors with flexible TPE strain reliefs & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
• SPECS: 2-meter (6.6-foot) Cable; 10 Pack; Black; DisplayPort v1.2; 4K 60Hz w/HBR2/MST/GTC; DP Latching Male to Male; 28AWG; 0.29in (7.3mm) O.D.; TPE Jacket; ABS Connector Shell; Al-Mylar Foil/Braided Shield; Single SKU available (DISPL2M)

Description

Set up multiple 4K UHD connections using this DisplayPort Cable 10 Pack

Faciliate multi-monitor setups using this DisplayPort 1.2 Cable 10-Pack. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 4K workstations, docks, and high performance GPUs. Connect a 4K 60Hz UHD DisplayPort monitor to a host computer or MST hub.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility with DP 1.1.

Durable Design

This DisplayPort cable features a flexible TPE outer jacket and can be routed around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching gold-plated DP connectors attach securely to prevent accidental disconnection.

Supported DisplayPort 1.2 Features:

The Certified DisplayPort Cable supports the following DP 1.2 features:

• Resolutions up to 4K 60Hz, using a compatible DP source and display
• Supports high refresh rates including 1080p 120Hz and 1440p 75Hz
• High-Bandwidth Digital Content Protection (HDCP) for a secure connection between source and display
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 8 Uncompressed Digital Audio Channels
• Backward compatible with DP 1.1

This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

The StarTech.com Advantage

Specifications

Features
Cable shielding	Aluminum mylar foil
Latching connectors	Yes
Cable rating	CMG (CM)
Number of conductors	19
Product colour	Black
Cable length	2 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel
Jacket material	Thermoplastic elastomer (TPE)
AWG wire size	28
Data transfer rate	21.6 Gbit/s
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Maximum refresh rate	120 Hz
Multi-Stream Transport (MST)	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable type	Round cable
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Packaging data
Cable diameter	7.3 mm
Package weight	1.4 kg
Weight	134 g
Package width	350 mm
Package depth	460 mm
Package height	100 mm
Quantity per pack	10 pc(s)
Weight & dimensions
Cable diameter	7.3 mm
Package weight	1.4 kg
Weight	134 g
Package width	350 mm
Package depth	460 mm
Package height	100 mm
Packaging content
Quantity per pack	10 pc(s)
Technical details
Compliance certificates	CE, RoHS
Logistics data
Products per master (outer) case	5 pc(s)
Master (outer) case width	320 mm
Master (outer) case length	500 mm
Master (outer) case height	210 mm
