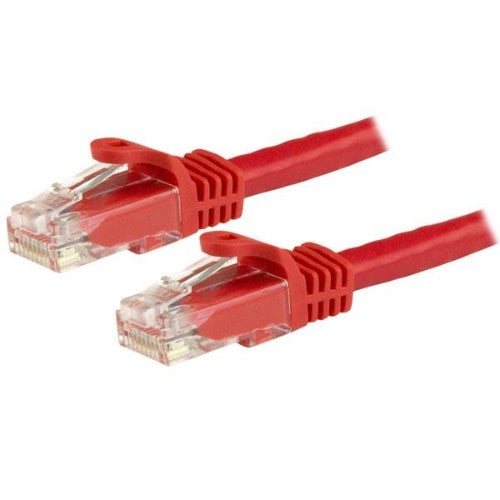

StarTech.com 3m CAT6 Ethernet Cable - Red CAT 6 Gigabit Ethernet Wire -250MHz 100W PoE RJ45 UTP Network/Patch Cord Snagless w/Strain Relief Individually Tested

StarTech 3m CAT6 Ethernet Cable - Red CAT 6 Gigabit Ethernet Wire -250Mhz 100W PoE RJ45 UTP Network Patch Cord Snagless with Strain Relief (N6PATC3MRD)

Key Features

• Rated performance for up to 250Mhz
• HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 50m; Individually Tested to comply w/ANSI/TIA-568-2.D Category 6
• POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
• QUALITY CONSTRUCTION: UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
• EASY INSTALLATION: Snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
• SPECS: Length: 3m (10ft) / Color: Red / 250 MHz Rated / Structure: 4 Pair UTP / RJ45 / Jacket: PVC / Wire Gauge: 24 AWG Copper / Wiring: ANSI/T568B/ Warranty: Lifetime

Description

Make Power-over-Ethernet-capable Gigabit network connections

The N6PATC3MRD Cat 6 Patch Cable (3m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable red PVC jacket that enables you to color code your network cable runs as needed.

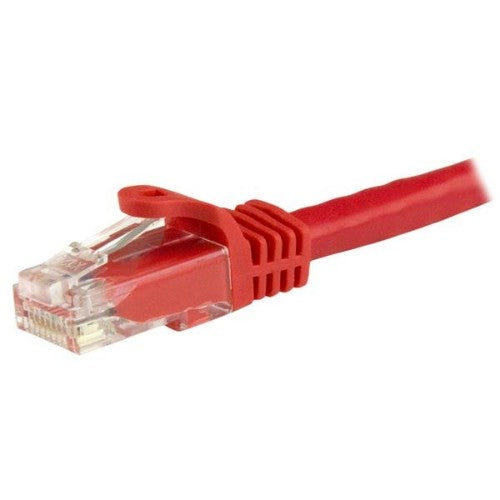

To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.

Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.

100% copper for outstanding value

Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.

24-gauge wire for high-performance network connection

Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

50-micron gold connectors provide peak conductivity

Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

Specifications

Features
Product colour	Red
Cable rating	CMG (CM)
Snagless cable boot	Yes
Conductor material	Copper
Frequency	650 MHz
AWG wire size	24
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	3 m
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE)	Yes
Connector 2 gender	Male
Connector 1 gender	Male
Certification	ETL, CE, REACH
Harmonized System (HS) code	84733080
Certificates
Certification	ETL, CE, REACH
Compliance certificates	RoHS
Weight & dimensions
Weight	126 g
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	200 mm
Package depth	225 mm
Package height	23 mm
Package weight	135 g
Quantity per pack	1 pc(s)
Technical details
Product colour	Red
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	3 m
Cable rating	CMG (CM)
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	80 pc(s)
Master (outer) case width	370 mm
Master (outer) case length	415 mm
Master (outer) case height	275 mm
Harmonized System (HS) code	84733080
