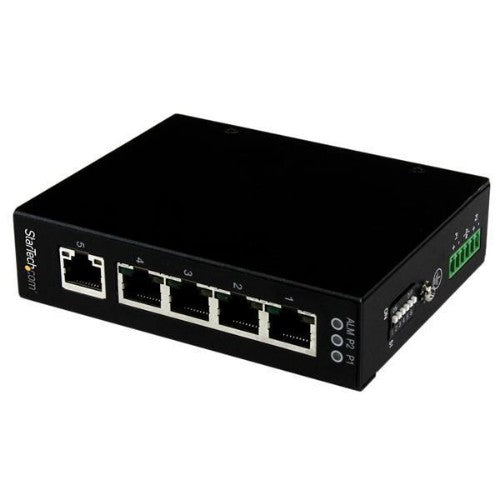

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30 Gigabit Switch

Description

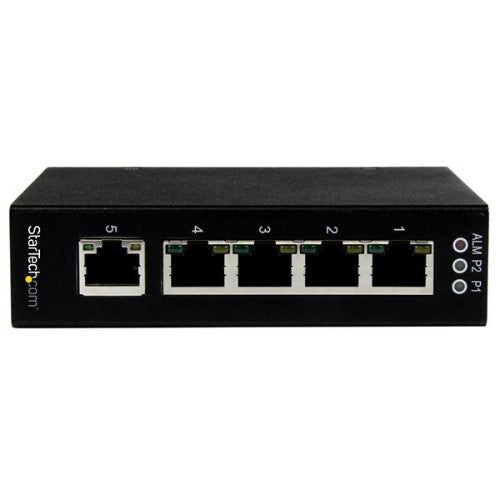

Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable

The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.

Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.

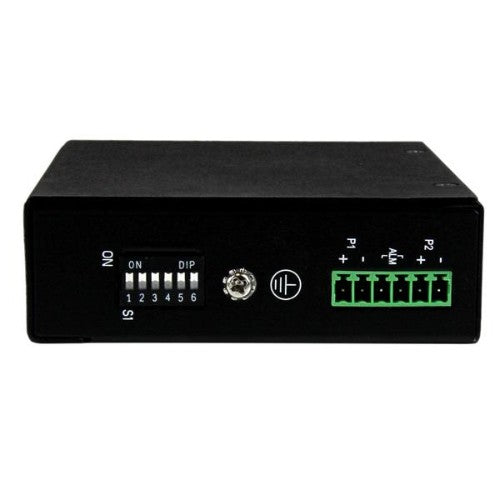

Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.

For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Seamless performance even in harsh industrial conditions, with an extended temperature range and an IP30-rated enclosure
- Maintain device operation during power disruptions, with redundant power inputs
- Install the switch exactly where you need it, using the included DIN Rail & wall-mount brackets

Specifications

Power
Power connector	DC-in jack
Power consumption (typical)	3.63 W
Input voltage	12 - 58 V
Technical details
Product colour	Black
Housing material	Steel
Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u
Full duplex	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Switching capacity	2 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Certificates
Certification	CE, FCC, RoHS, REACH
Design
Wall mountable	Yes
International Protection (IP) code	IP30
Product colour	Black
LED indicators	Activity, Link, Power
Housing material	Steel
Certification	CE, FCC, RoHS, REACH
Performance
Maximum cable length	100 m
Buffer size	128 KB
Harmonized System (HS) code	85176990
Indication
LED indicators	Activity, Link, Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	89 mm
Depth	111 mm
Height	28 mm
Weight	328 g
Packaging data
Terminal block included	Yes
Wall mounting kit	Yes
Mounting brackets included	Yes
Screws included	Yes
DIN rail included	Yes
Package width	139 mm
Package depth	176 mm
Package height	83 mm
Package weight	523 g
Manual	Yes
Logistics data
Harmonized System (HS) code	85176990
Other features
Input voltage	12 - 58 V

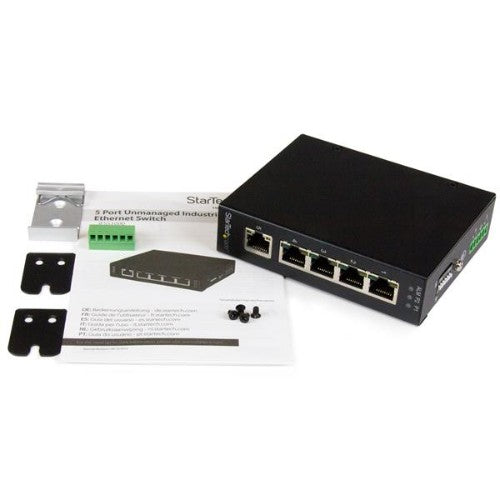

Packaging content
Terminal block included	Yes
Wall mounting kit	Yes
Mounting brackets included	Yes
Screws included	Yes
DIN rail included	Yes
Manual	Yes
