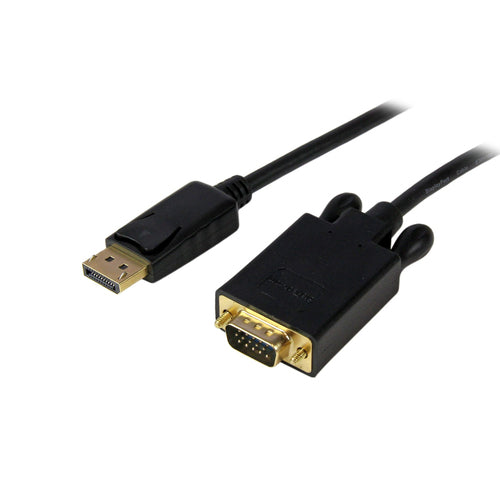

StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector

StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector (DP2VGAMM6B)

Description

Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 6ft cable

The DP2VGAMM6B 6ft active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.

The DP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Active video converter
Chipset	Analogix - 9832
DisplayPort version	1.2
Product colour	Black
Cable length	1.8 m
Connector 1	DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	2048 x 1280 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280
Supported video modes	1080p
Plug and Play	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Other features
Width	35 mm
Height	15 mm
Depth	1840 mm
Weight & dimensions
Width	35 mm
Height	15 mm
Depth	1840 mm
Weight	103.67 g
Package width	195 mm
Package depth	220 mm
Package height	20 mm
Package weight	128 g
Packaging data
Package width	195 mm
Package depth	220 mm
Package height	20 mm
Package weight	128 g
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	415 mm
Master (outer) case height	435 mm
Products per master (outer) case	120 pc(s)
Harmonized System (HS) code	84733080
