StarTech.com Mini-SAS Adapter - Dual SFF-8643 to SFF-8644 - with Full and Low-Profile Brackets - 12Gbps

StarTech.com Mini-SAS Adapter - Dual SFF-8643 to SFF-8644 - with Full and Low-Profile Brackets - 12Gbps

Description

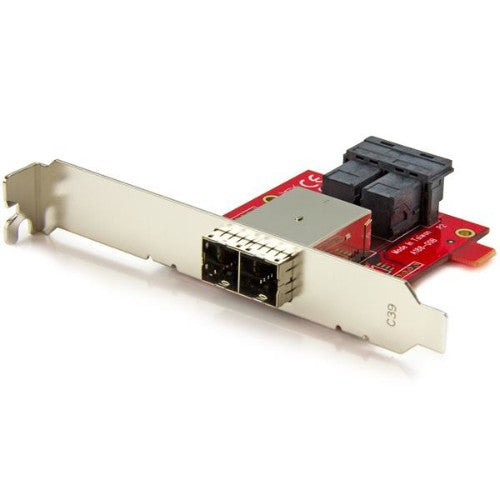

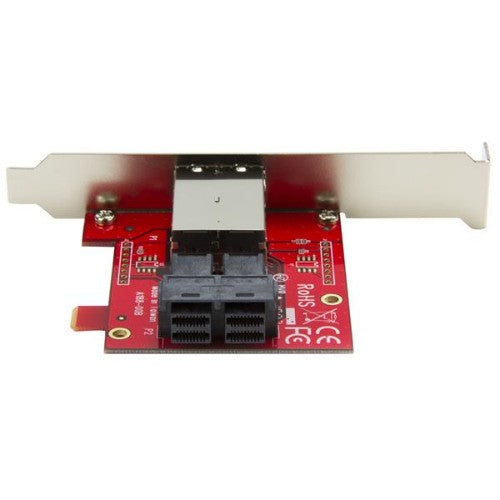

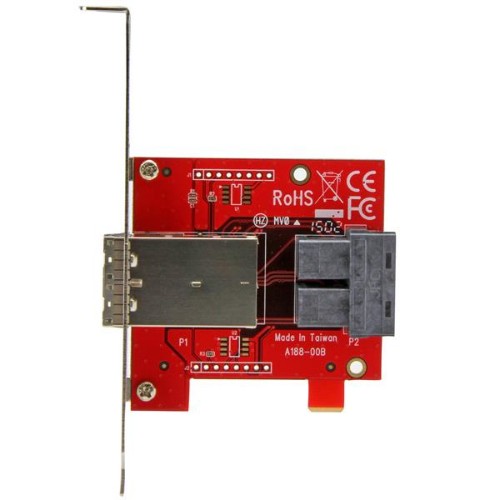

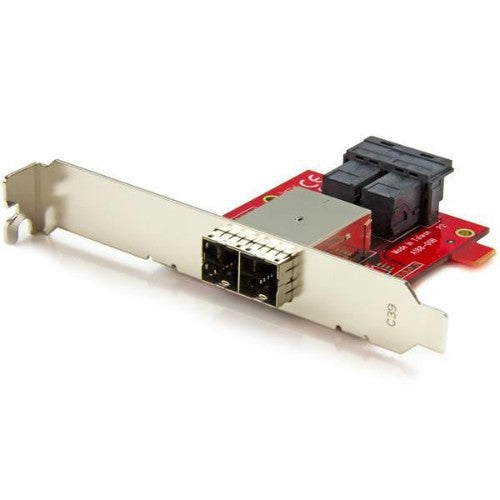

This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage.

The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives. For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included.

The SFF86448PLT2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Output interface	Mini-SAS HD
Host interface	Mini SAS
Internal mini-SAS HD ports	2
External mini-SAS HD ports	2
Performance
Product colour	Red
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FCC, TAA, REACH
Colour
Product colour	Red
Design
Internal	Yes
Product colour	Red
Certification	CE, FCC, TAA, REACH
Features
Harmonized System (HS) code	84733020
Technical details
Quantity per pack	1 pc(s)
Sustainability certificates	RoHS
Compliance certificates	RoHS
Weight & dimensions
Width	120 mm
Depth	74 mm
Height	22 mm
Weight	54 g
Package width	173 mm
Package depth	145 mm
Package height	33 mm
Package weight	112 g
Packaging data
Package width	173 mm
Package depth	145 mm
Package height	33 mm
Package weight	112 g
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733020
Quantity per pack	1 pc(s)
