StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length

StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length

Description

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.

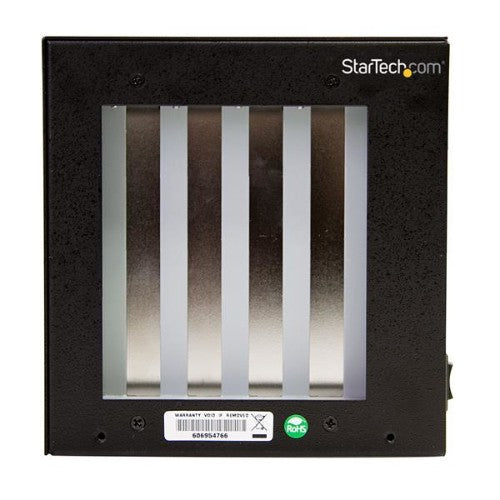

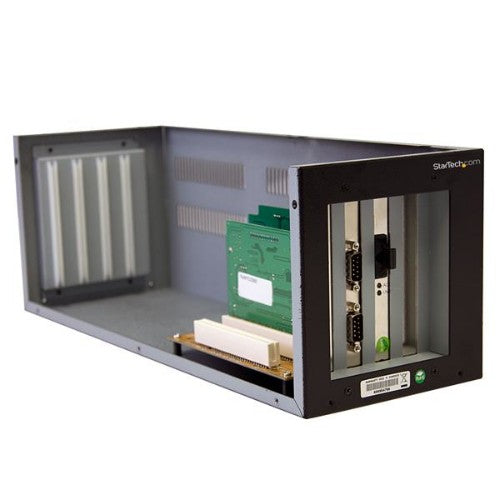

The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

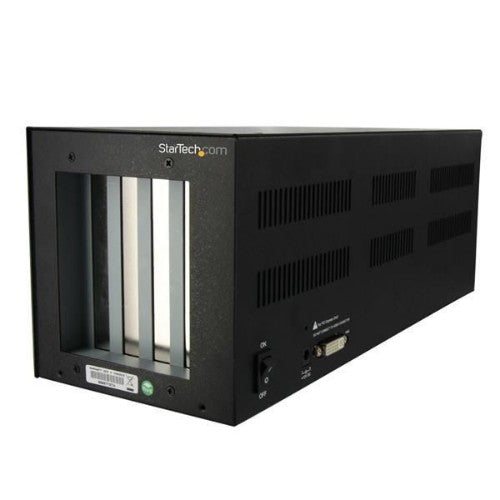

Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
Install additional cards without opening your computer with the provided external expansion card slots
Easy installation and support for small form-factor computers with an included low-profile/half-height bracket

Specifications

Technical details
Cable length	0.9 m
Network
Data transfer rate	250 Mbit/s
Performance
Harmonized System (HS) code	84719000
Certificates
Certification	ROHS, CE, FCC
Design
Certification	ROHS, CE, FCC
Features
Harmonized System (HS) code	84719000
Power
Output voltage	12 V
Output current	3 A
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	137 mm
Depth	382 mm
Height	143 mm
Weight	2 kg
Package width	208 mm
Package depth	436 mm
Package height	254 mm
Package weight	2.1 kg
Packaging data
Manual	Yes
Package width	208 mm
Package depth	436 mm
Package height	254 mm
Package weight	2.1 kg
Cables included	AC, DVI
Logistics data
Harmonized System (HS) code	84719000
Other features
Data transfer rate	250 Mbit/s
Ports quantity	4
Cable length	0.9 m
Power requirements	115 - 230 AC
Compatible operating systems	Win 2000/XP/2003/ Vista Linux Mac OS X

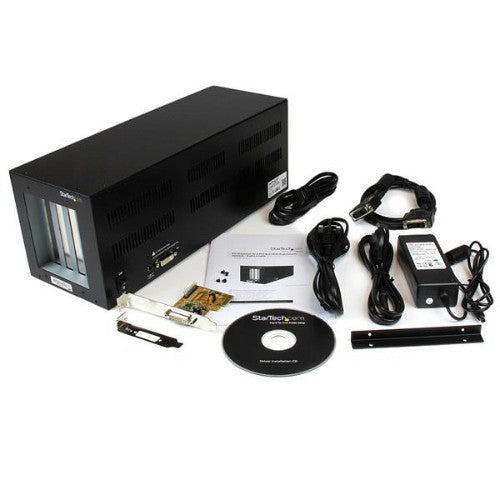

Packaging content
Manual	Yes
Cables included	AC, DVI
