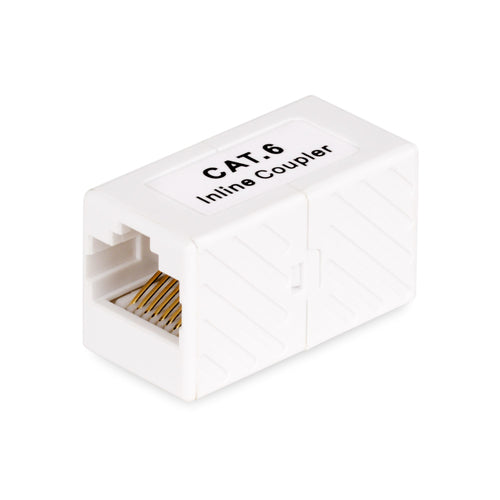

StarTech.com RJ45 Coupler 5-Pack, Inline Cat6 Coupler, Female to Female (F/F) T568 Connector, Unshielded Ethernet Cable Extension

StarTech.com RJ45 Coupler 5-Pack, Inline Cat6 Coupler, Female to Female (F/F) T568 Connector, Unshielded Cat6 Cable Extension

Key Features

• CONVENIENT 5-PACK: The RJ45 Coupler features a compact design with straight-through T568B pinouts; 5 Pack, ideal for IT professionals managing multiple setups in offices, server rooms, and LANs; Connect two Cat6 cables in tight spaces
• ROBUST CONSTRUCTION: Cat6 Ethernet Coupler with durable polycarbonate housing enhances wear protection in tough environments; Female RJ45 contacts made from gold-plated phosphor bronze for improved conductivity and corrosion resistance
• RELIABLE DATA TRANSMISSION: Supports 10Gbps, 1Gbps, and 10/100 Ethernet speeds with PoE for versatile and reliable transfer rates between devices; Insertion Loss margin of 35.4dB with 17.5dB Headroom exceeds TIA-568-C.2 standards
• COMPATIBILITY: Compatible with Cat 6 and Cat 5/5e cables, 10/100/1000 and 2.5G/5G/10G networks; Compatible Standards: 10BASE-T/100BASE-TX/100BASE-T4/1000BASE-T, 2.5GBASE-T/5GBASE-T, ATM-25/ATM-51/ATM-155, TR-16 Active/Passive, TR-4, 100VG-AnyLan
• QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; No additional software or configuration required; This RJ45 Coupler 5-Pack is available as a single SKU (IN-CAT6-COUPLER-U1)

Description

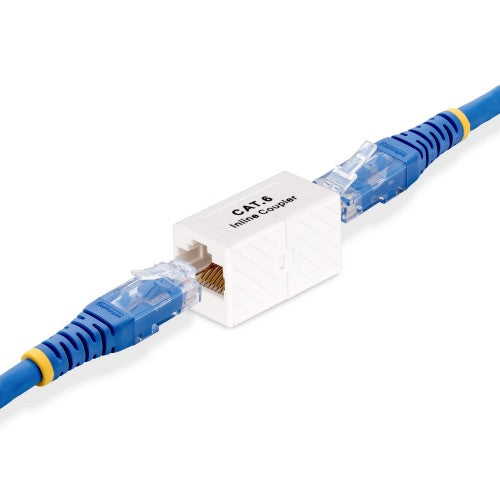

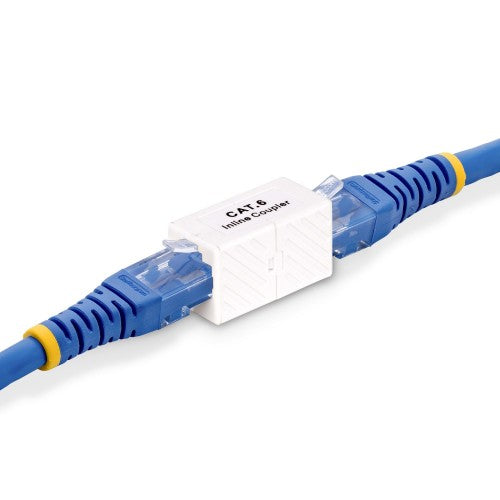

Join two RJ45 cables conveniently using this Inline Coupler 5-Pack

The RJ45 Coupler 5-Pack is a convenient solution for multiple installations. Connect two Cat 6 cables to extend a network connection. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.

Wide Compatibility

The Cat6 Coupler facilitates 10Gbps, 1Gbps, and 10/100 speeds and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T

Durable Construction

The RJ45 Coupler features a durable polycarbonate housing and gold-plated phosphor bronze RJ45 contacts for dependable, long-lasting performance and reliability.

The StarTech.com Advantage

Specifications

Ports & interfaces
Connector 2	RJ-45
Connector 1	RJ-45
Connector 2 gender	Female
Connector 1 gender	Female
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Technical details
Networking standards	IEEE 802.3, IEEE 802.3ae, IEEE 802.3bz
Product colour	White
Housing material	Polycarbonate (PC)
Sustainability compliance	Yes
Compliance certificates	CE
Design
Housing material	Polycarbonate (PC)
Product colour	White
Performance
Housing material	Polycarbonate (PC)
Cable types supported	Cat5, Cat5e, Cat6
Networking standards	IEEE 802.3, IEEE 802.3ae, IEEE 802.3bz
Product colour	White
Data transfer rate	10 Gbit/s
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Relative humidity	15 - 65%
Operating temperature (T-T)	0 - 70 °C
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	15 mm
Height	17 mm
Packaging data
Package width	220 mm
Package height	30 mm
Package depth	128 mm
Package weight	104 g
Packaging content
Quantity per pack	5 pc(s)
Logistics data
Products per master (outer) case	200 pc(s)
Master (outer) case width	460 mm
Master (outer) case length	300 mm
Master (outer) case height	280 mm
Other features
Networking standards	IEEE 802.3, IEEE 802.3ae, IEEE 802.3bz
