StarTech.com S-Video or Composite to HDMI Converter with Audio - 720p - NTSC and PAL

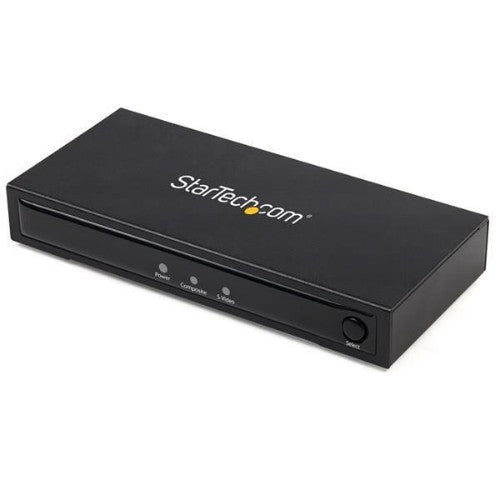

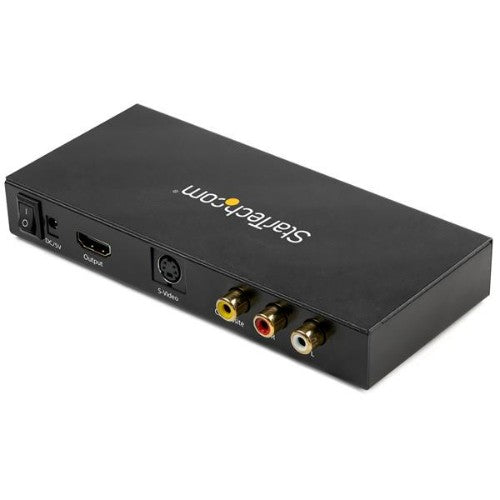

StarTech.com S-Video or Composite to HDMI Converter with Audio - 720p - NTSC & PAL - Analog to HDMI Upscaler - Mac & Windows (VID2HDCON2)

Key Features

• "Convert and upscale S-Video or analog composite input to HDMI video output
• Features on-screen display for simple setting selections
• Supports standard high-definition resolutions up to 720p
• Offers a pure hardware design, with no software installation required
• Video upscaler accepts NTSC or PAL input"

Description

Analog to HDMI® Upscaler| Mac & Windows® | On-Screen Display

This S-Video or composite to HDMI® converter with audio lets you connect an S-Video or analog composite device, along with supporting RCA L/R audio, to your HDMI monitor or television.

Hassle-Free Setup and Easy to Use

Equipped with an on-screen display (OSD) menu and convenient selector switches for easy configuration, this compact S-Video or composite to HDMI video converter installs quickly and easily, for a true plug-and-play experience.

Save on Upgrade Costs

This HDMI upscaler is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 720p to seamlessly integrate with almost any display.

By using this analog to HDMI converter you’ll be able to continue using your legacy equipment (video camera, DVD player, etc.) with your HDMI display or monitor, ultimately saving the costs of upgrading your equipment. It's ideal for boardroom settings, medical imaging and watching old home videos on your HD display or television.

Support for Audio

This AV (audio video) converter box features an integrated RCA L/R audio connection that combines the audio and video inputs into a single HDMI output, avoiding the hassle of running a separate audio cable to your destination display.

VID2HDCON2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Convert and upscale S-Video or analog composite input to HDMI video output
- Features on-screen display for simple setting selections
- Supports standard high-definition resolutions up to 720p

Specifications

Technical details
Converter type	Active video converter
Housing material	Plastic
Video out	HDMI/S-Video/2 x RCA
Video in	Composite
Maximum video resolution	1280 x 720 pixels
Supported video modes	720p
Analog signal format system	NTSC 3.58, PAL
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Colour
Product colour	Black
Other features
Converter type	Active video converter
Housing material	Plastic
Product colour	Black
Certification	CE, FCC, REACH
Windows operating systems supported	Yes
Mac operating systems supported	Yes
LED indicators	Yes
Features
Converter type	Active video converter
Housing material	Plastic
Product colour	Black
Certification	CE, FCC, REACH
Windows operating systems supported	Yes
Mac operating systems supported	Yes
LED indicators	Yes
Video
Maximum video resolution	1280 x 720 pixels
Supported video modes	720p
Analog signal format system	NTSC 3.58, PAL
Maximum refresh rate	60 Hz
Certificates
Certification	CE, FCC, REACH

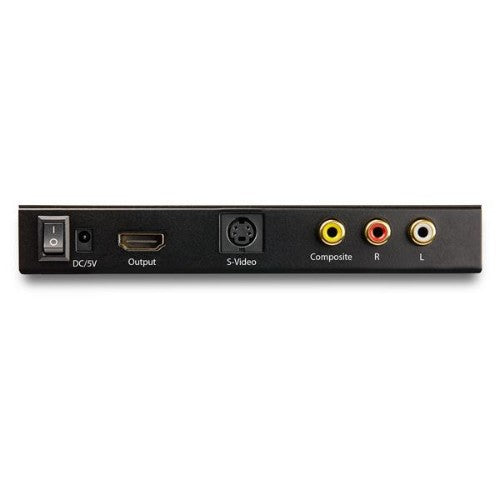

Ports & interfaces
Video out	HDMI/S-Video/2 x RCA
Video in	Composite
Power
Power consumption (typical)	2.5 W
Power plug type	Type M
Input current	1 A
Operating voltage	5 V
Input voltage	100 - 240 V
External power adapter	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Width	71 mm
Depth	155 mm
Height	23 mm
Weight	251 g
Packaging data
AC adapter included	Yes
Quick installation guide	Yes
Package width	200 mm
Package depth	255 mm
Package height	60 mm
Package weight	578 g
Logistics data
Harmonized System (HS) code	85176990

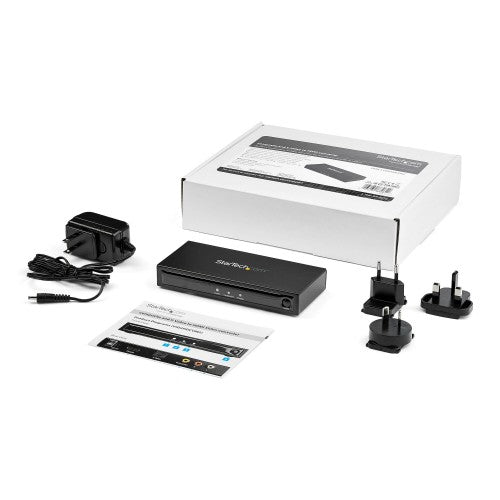

Packaging content
AC adapter included	Yes
Quick installation guide	Yes
