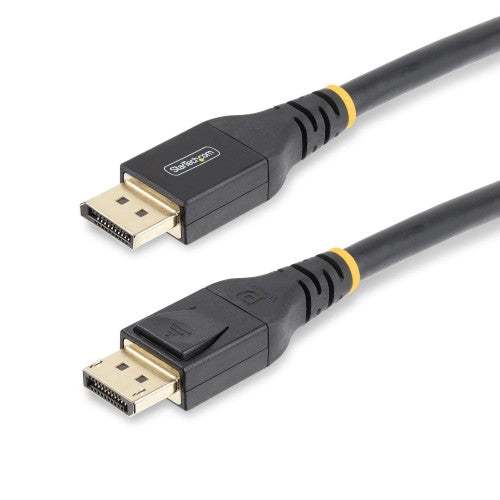

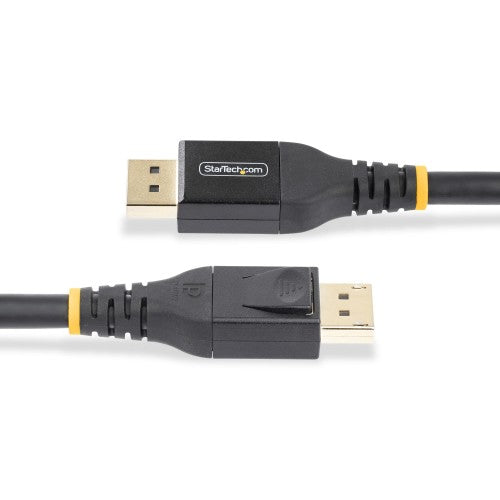

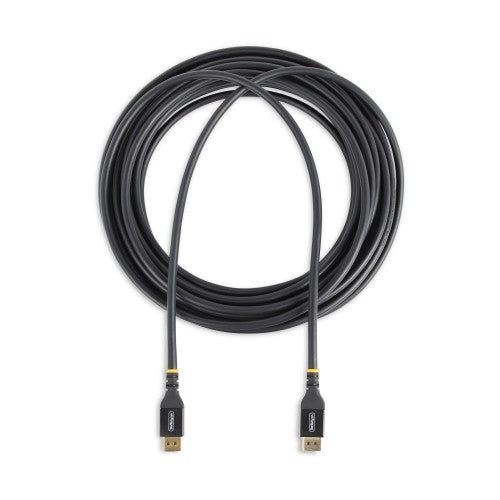

StarTech.com 10m (33ft) Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M

StarTech.com 10m (33ft) Active DisplayPort 1.4 Cable, 8K DP Cable with HBR3, HDR10,8K 60Hz, 4K 120Hz - M/M DP Cord

Key Features

• DESIGNED FOR LONG RANGE: 10m (32.8ft) Active DisplayPort 1.4 Cable delivers 8K video beyond the length of passive cables; Integrated self-powered signal booster enables consistent performance without the need for a DP booster or external power source
• DURABLE CONSTRUCTION: Latching gold-plated connectors with robust strain reliefs to prevent accidental disconnects; TPE outer cable jacket is flexible, non-toxic, halogen-free, and RoHS compliant; Shielded cable and connector for enhanced EMI protection
• VERSATILE INSTALLATION: This active DP 1.4 cable is unidirectional, with conveniently labeled connectors for source and display; 7.5mm Cable O.D. is identical to passive cables and improves flexibility; VW-1 Fire rated jacket enhances flame resistance

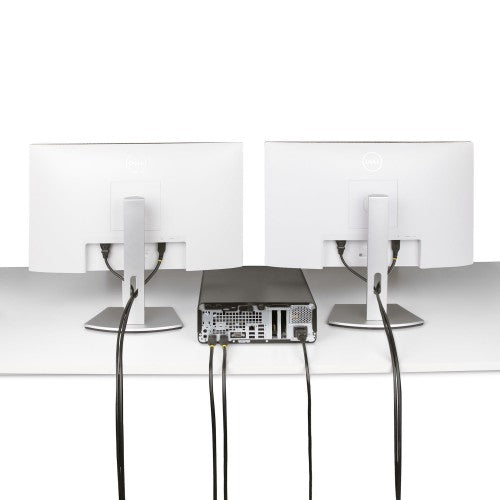

• APPLICATIONS: Ideal for high resolution 8K displays; Up to 120Hz refresh rate at 4K resolution; Suitable for high performance GPUs and AV workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a UHD docking station
• SPECS: Black; 10m (32.8ft); Unidirectional cable; DP8K supports HBR3/HDR10/MST/DSC 1.2/HDCP 2.2; 8K 60Hz, 4K 120Hz, 1440p 240Hz w/DSC; Backward Compatible w/ DP 1.3/1.2; Cable O.D.: 7.5mm; Gold-Plated Connectors; Rugged TPE Jacket w/Aluminum Mylar Shield

Description

Facilitate a longer 8K connection without requiring an external power source

Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 32.8ft (10m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.

Durable Design

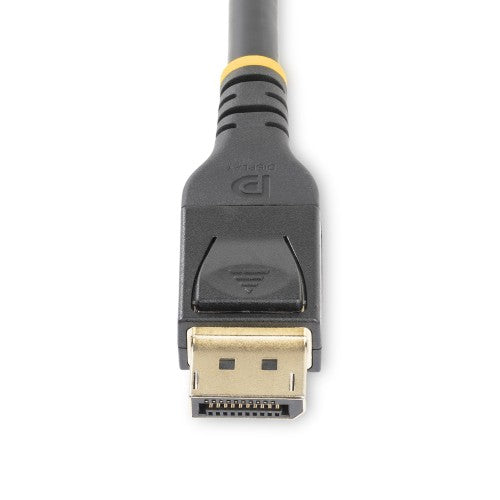

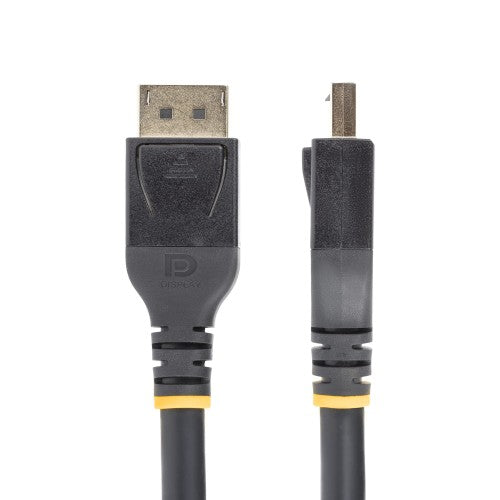

This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.

Supported DisplayPort 1.4 Features:

This 8K DisplayPort cable supports all DP 1.4 features:

• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
• HDCP 2.2 support
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10)
• Display Stream Compression 1.2 (DSC 1.2)
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions

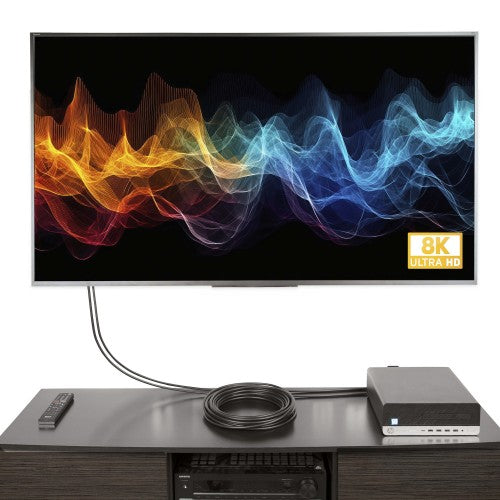

The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.

The StarTech.com Advantage

Specifications

Features
Cable shielding	Aluminum mylar foil
Product colour	Black
Cable length	10 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Cable material	Copper
Jacket material	Thermoplastic elastomer (TPE)
AWG wire size	24/28
DisplayPort version	1.4
Data transfer rate	25.92 Gbit/s
Bandwidth	32400 MB/s
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	3840 x 2160, 7680 x 4320
HDCP	Yes
Maximum refresh rate	144 Hz
Fire-resistance rating	VW-1
Multi-Stream Transport (MST)	Yes
HBR3 support	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDCP version	2.2
Display Stream Compression (DSC)	Yes
Display Stream Compression (DSC) version	1.2
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Cable diameter	7.5 mm
Package weight	700 g
Package width	330 mm
Package depth	252 mm
Package height	120 mm
Packaging data
Cable diameter	7.5 mm
Package weight	700 g
Package width	330 mm
Package depth	252 mm
Package height	120 mm
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	16 pc(s)
Master (outer) case width	430 mm
Master (outer) case length	380 mm
Master (outer) case height	290 mm
