StarTech.com HP J8177C Compatible SFP Transceiver Module - 1000BASE-T~HPE J8177C Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 1810, 1820, 2530

StarTech.com HPE J8177C Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 1810, 1820, 2530 (J8177CST)

Key Features

• 100% HPE J8177C COMPATIBLE: Works with HPE switches like 1810, 1820, 2530, 2610, 2620 and others
• TECHNICAL SPECS: 1000BASE-T / 1Gbps / Copper / RJ-45 Connector / Distances up to 100m (328ft)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

Description

1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

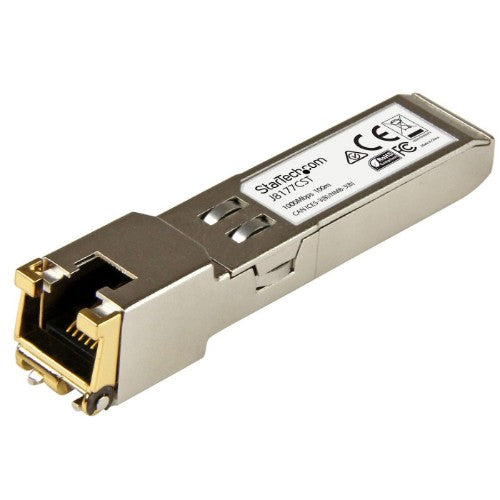

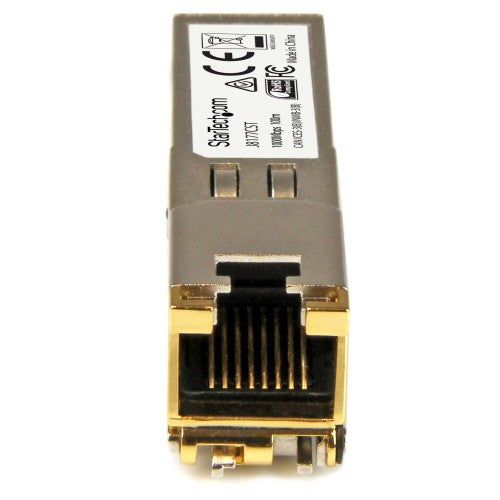

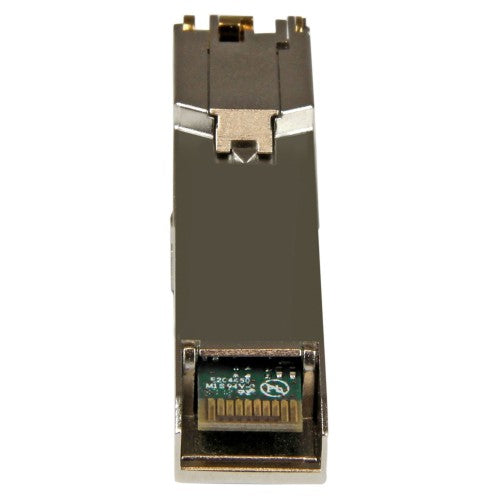

The J8177CST is an HPE J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Copper
Digital Diagnostics Monitoring (DDM)	No
Auto-negotiation	Yes
Fiber optic connector	MiniGBIC
Networking standards	IEEE 802.3ab
Auto MDI/MDI-X	Yes
Ethernet LAN (RJ-45) ports	1
Maximum transfer distance	100 m
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Mean time between failures (MTBF)	4655371 h
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Mean time between failures (MTBF)	4655371 h
Country of origin	China
Certification	CE, FCC
Power
Power consumption (typical)	1.3 W
Certificates
Certification	CE, FCC
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	30 - 75%
Network
SFP transceiver type	Copper
Fiber optic connector	MiniGBIC
Networking standards	IEEE 802.3ab
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Weight & dimensions
Width	14 mm
Depth	68 mm
Height	14 mm
Weight	25 g
Package depth	92 mm
Package width	118 mm
Package height	34 mm
Package weight	53 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	118 mm
Package height	34 mm
Hot-swap	Yes
Auto MDI/MDI-X	Yes
Maximum transfer distance	100 m
Compliance certificates	RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Packaging data
Package depth	92 mm
Package width	118 mm
Package height	34 mm
Package weight	53 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	355 mm
Master (outer) case length	410 mm
Master (outer) case height	340 mm
Products per master (outer) case	100 pc(s)
Harmonized System (HS) code	85369010
