StarTech.com Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - Compact mDP 1.2 to DVI Single-Link Adapter Dongle

StarTech.com Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - Compact mDP 1.2 to DVI Single-Link Adapter Dongle (MDP2DVI3)

Key Features

• MINI DISPLAYPORT TO DVI ADAPTER: mDP 1.2 (HBR2) to DVI-I (digital only DVI-D) single-link adapter connects a DVI display/projector supporting 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display
• HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
• INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle / Compact design makes it ideal for travel / 5"" (13cm) attached cable

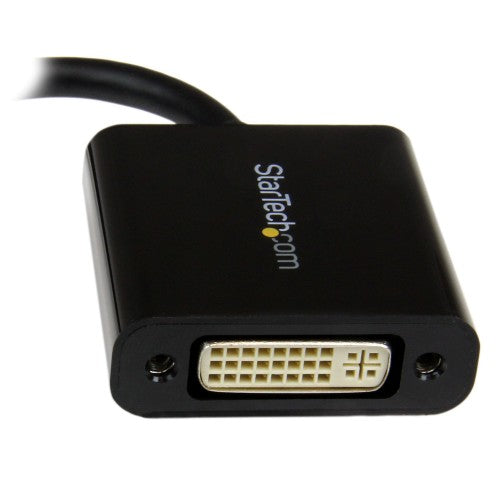

• SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors / Tested with DVI cables up to 25ft / mDP male to DVI female connector
• EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort

Description

Connect a DVI Display to a Mini DisplayPort Video Source

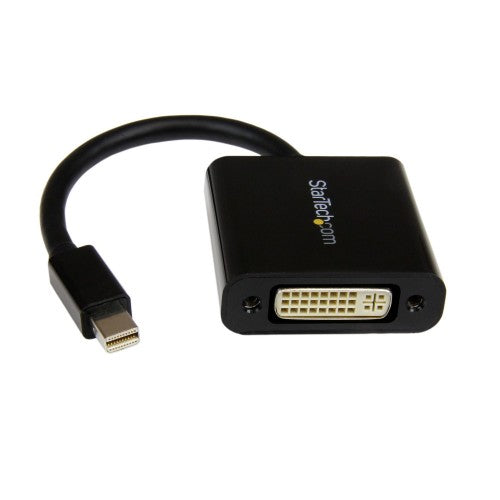

The MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.

MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Passive video converter
DisplayPort version	1.2
Product colour	Black
Cable length	0.13 m
Connector 1	Mini DisplayPort
Connector 2	DVI-I
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	1920 x 1200 pixels
Supported video modes	1080p
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Other features
Width	40 mm
Height	15 mm
Depth	185 mm
Weight & dimensions
Width	40 mm
Height	15 mm
Depth	185 mm
Weight	26.5 g
Package width	160 mm
Package depth	240 mm
Package height	20 mm
Package weight	51 g
Packaging data
Package width	160 mm
Package depth	240 mm
Package height	20 mm
Package weight	51 g
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS, CE
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	270 mm
Master (outer) case length	455 mm
Master (outer) case height	355 mm
Products per master (outer) case	200 pc(s)
Harmonized System (HS) code	84733080
