StarTech.com PCI Express to PCI Adapter Card

StarTech.com PCI Express to PCI Adapter Card - PCIe to PCI Converter Adapter with Low Profile / Half-Height Bracket

Description

Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot

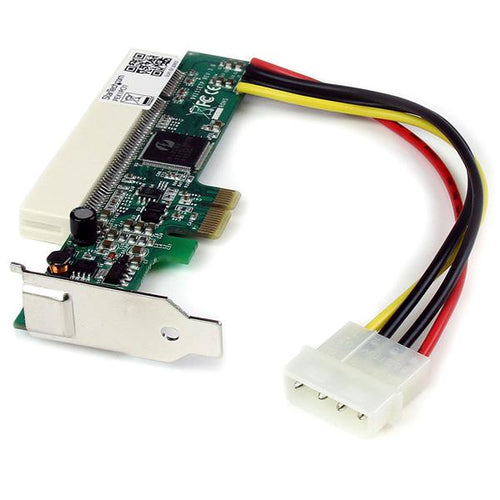

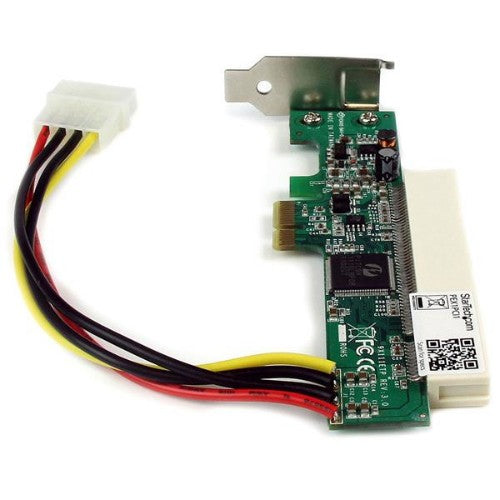

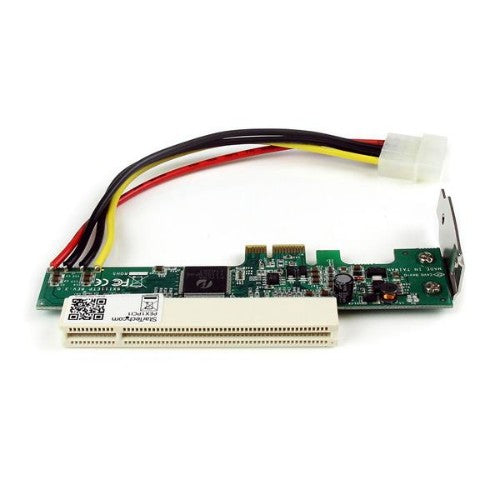

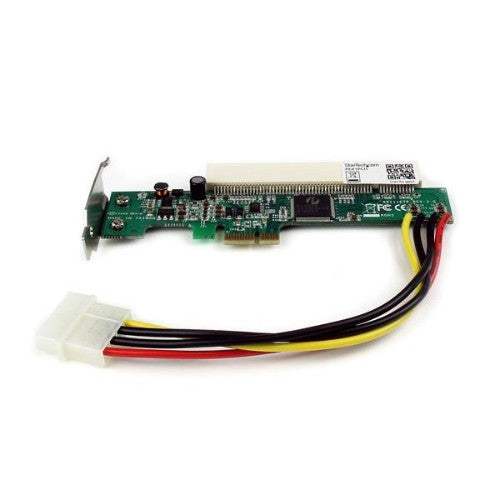

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.

A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).

The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.

To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.

The StarTech.com Advantage

Specifications

Ports & interfaces
I/O ports	1x PCI 32-bit
Output interface	PCI 32-bit
Host interface	PCIe
Technical details
Chipset	PERICOM PI7C9X110BNBE
Performance
Chipset	PERICOM PI7C9X110BNBE
Product colour	Red
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FC, ROHS
Colour
Product colour	Red
Design
Product colour	Red
Certification	CE, FC, ROHS
Features
Chipset	PERICOM PI7C9X110BNBE
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Weight & dimensions
Width	70 mm
Depth	135 mm
Height	20 mm
Weight	52 g
Package width	175 mm
Package depth	144 mm
Package height	32 mm
Package weight	121 g
Packaging data
Package width	175 mm
Package depth	144 mm
Package height	32 mm
Package weight	121 g
Logistics data
Harmonized System (HS) code	84733020
Other features
Ports quantity	1
Platform	PC
Connectivity technology	Wired
Form factor	LP/ST
Power requirements	3.3V
Mac compatibility	No
Compatible operating systems	Windows 2000/XP/Vista
I/O ports	1x PCI 32-bit
Chipset	PERICOM PI7C9X110BNBE
