StarTech.com TR-M2-REMOVABLE-PCIE drive bay panel Storage drive tray Black, Silver

StarTech.com M.2 NVMe SSD Drive Tray for use in PCIe Expansion Product Series - Drive Tray for an Additional Hot Swappable Drive

Description

A spare drive tray to add and/or swap a 2230, 2242, 2260, or 2280 M-Key NVMe M.2 SSD

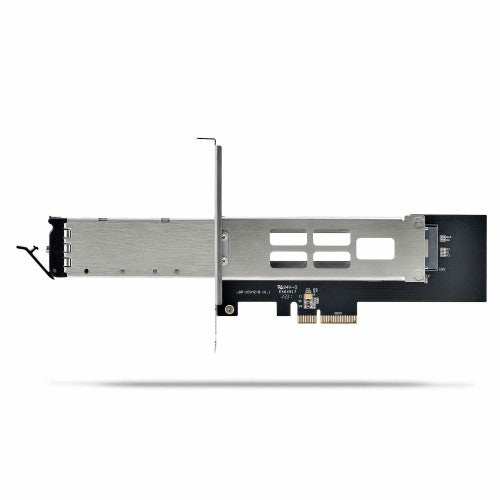

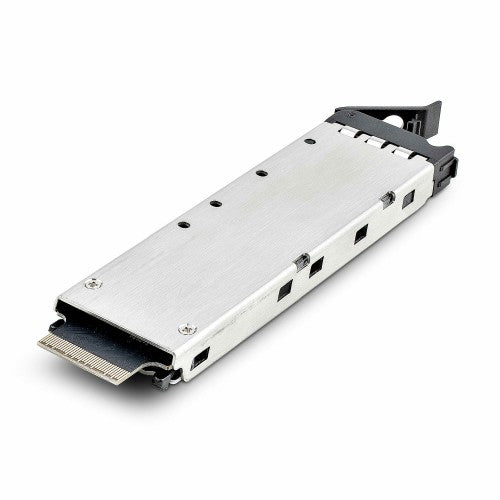

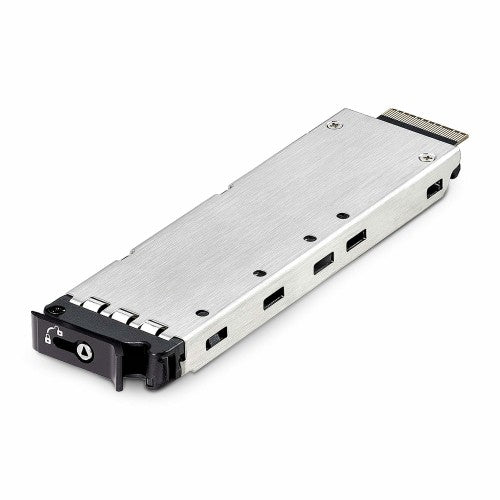

A spare drive tray for M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE, to add or swap a compatible drive. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.

Toolless Installation

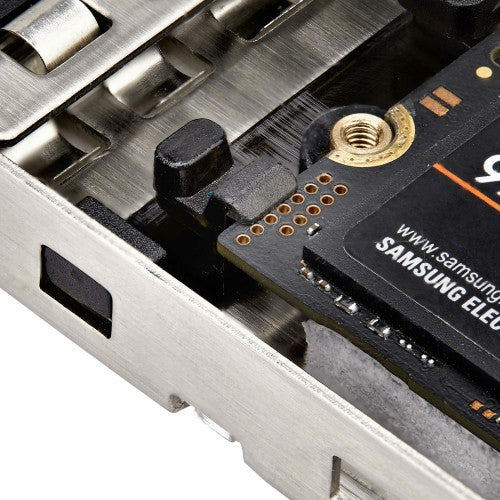

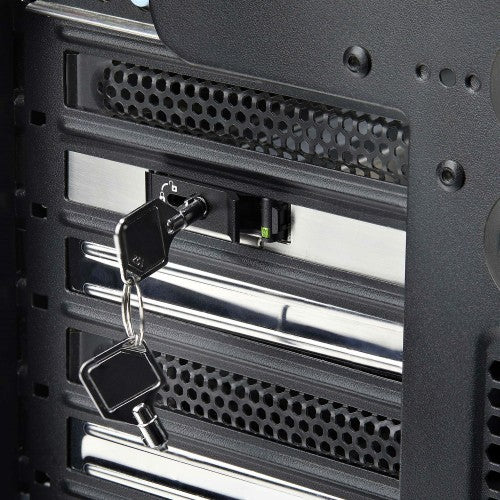

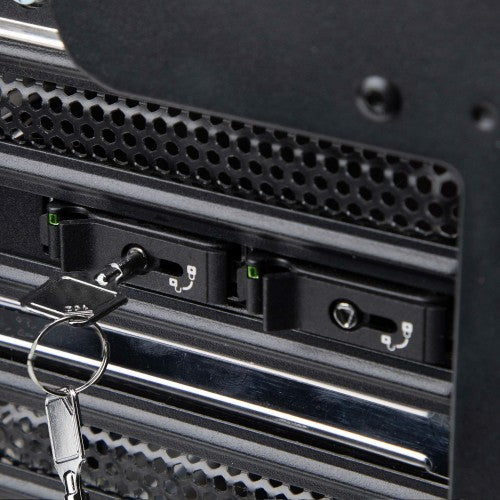

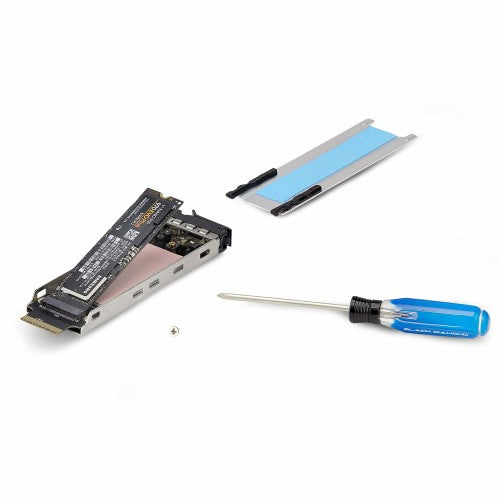

Install an M.2 drive into the drive tray without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.

Optimal Performance

The tray features thermal pads which aid heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive.

Hot-Swappable

When used with products from the PCIe Expansion Product Series, it provides flexibility and convenience for managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard and for instructions regarding how to enable this feature.

The StarTech.com Advantage

Specifications

Features
LED indicators	Yes
Hot-swap	Yes
Type	Storage drive tray
Data transfer rate	64 Gbit/s
Product colour	Black, Silver
TRIM support	Yes
S.M.A.R.T. support	Yes
RAID support	No
Quantity per pack	1 pc(s)
Number of SSDs supported	1
SSD interface	PCI Express 4.0
SSD form factor	M.2
Technical details
LED indicators	Yes
Hot-swap	Yes
Type	Storage drive tray
Data transfer rate	64 Gbit/s
Product colour	Black, Silver
TRIM support	Yes
S.M.A.R.T. support	Yes
RAID support	No
Products per master (outer) case	100 pc(s)
Master (outer) case width	485 mm
Master (outer) case length	325 mm
Master (outer) case height	270 mm
Package width	145 mm
Package height	20 mm
Package depth	75 mm
Weight & dimensions
Width	34 mm
Weight	36 g
Height	12 mm
Depth	124 mm
Packaging data
Package weight	79.2 g
Package width	145 mm
Package height	20 mm
Package depth	75 mm
Packaging content
Number of lock keys included	2 pc(s)
Quick start guide	Yes
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	100 pc(s)
Master (outer) case width	485 mm
Master (outer) case length	325 mm
Master (outer) case height	270 mm
