Synology

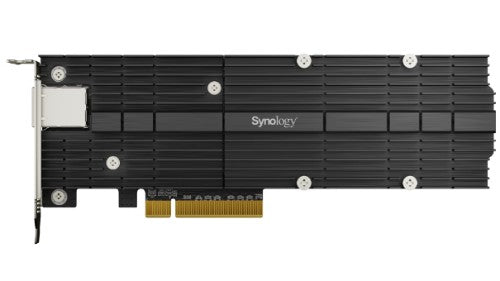

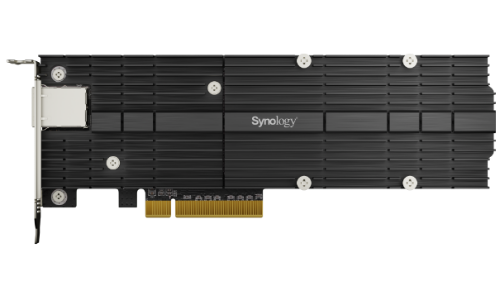

Synology E10M20-T1 interface cards/adapter Internal PCIe

SKU E10M20-T1
£286.10
£217.25
£286.10
£217.25
Excluding taxes
PCIe 3.0 x8, PCIe NVMe, LAN, 10 Gbps, 200.05 x 71.75 x 17.7 mm

Description

10GbE bandwidth and M.2 SSD cache, all at once Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS. - Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps. - Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots. - Free up primary drive bays for data storage. A perfect match with Synology SNV3000 series NVMe SSD Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.

Specifications

Ports & interfaces
Internal Yes
Output interface PCIe
Host interface PCIe
NVMe Yes
Expansion card form factor Full-height / Low-profile
Expansion card standard PCIe 3.0
Technical details
Purpose NAS / Storage server
Full duplex Yes
Data transfer rate (max) 10 Gbit/s
Compatibility SA series:SA3600, SA3400 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII
Performance
Purpose NAS / Storage server
Full duplex Yes
Data transfer rate (max) 10 Gbit/s
Product colour Black
NVMe Yes
Harmonized System (HS) code 84733020
Colour
Product colour Black
Design
Purpose NAS / Storage server
Internal Yes
Product colour Black
Cooling type Passive
Features
Full duplex Yes
Data transfer rate (max) 10 Gbit/s
Harmonized System (HS) code 84733020
NVMe Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 200.1 mm
Depth 17.7 mm
Height 71.8 mm
Packaging data
Quick installation guide Yes
Quantity 1
Other features
Compatibility SA series:SA3600, SA3400 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII
Packaging content
Quick installation guide Yes
Quantity 1
