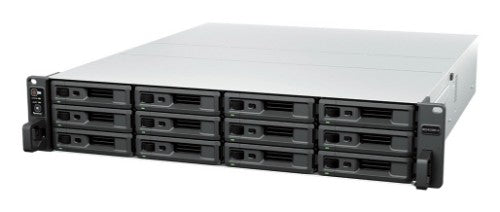

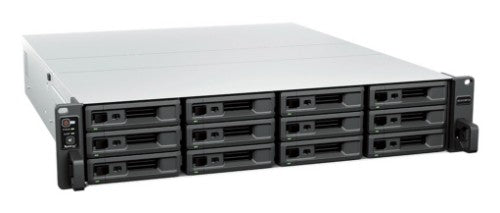

Synology RackStation RS2423RP+II NAS Rack (2U) AMD Ryzen V1780B 8 GB DDR4 0 TB DiskStation Manager Black

AMD Ryzen V1780B, 64-bit, 3.35/3.6 GHz, 8 GB DDR4 ECC UDIMM, 3.5" SATA HDD, 2.5" SATA SSD, 2 x RJ-45 1GbE, 1X RJ-45 10GbE, 2x USB 3.2 Gen 1, 1 x PCIe Gen3 x8, 2U, 4-post 19", Black, 88 × 482 × 578 mm, 11.9 kg

Description

Faster and more responsive
The RS2423RP+II offers exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.2 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.

Designed for reliability

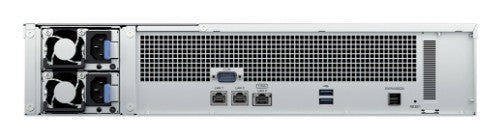

The RS2423RP+II comes with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS2423RP+II units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.
The RS2423RP+II also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.

Room for expansion
Easily adjust the 2U 12-bay RS2423RP+II to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.

Storage expansion
Add 12 extra drive bays for a total of 24 drive bays with a RX1223RP expansion unit.

SSD cache
Boost read/write IOPS for HDD arrays with NVMe or SATA SSD cache.

Flexible networking options
Improve I/O or add redundancy with 10/25GbE SFP+/SFP28 or RJ-45 networking.

Versatile storage for businesses
The RS2423RP+II is ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.

Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.

Private file cloud
Enable efficient collaboration with Synology Drive
Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.

Multi-platform support
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.

Collaborate in real time
Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.

Efficient multi-site synchronization
Connect teams with Hybrid Share
Use Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.

Reliable data access on demand
With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.

Local caching of most-used data
Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.

Multi-endpoint data protection
Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.

Consolidated backup server
Endpoint, VM, and NAS/SAN protection
Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.

Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.

Data protection and recovery
Hyper Backup
Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,6public cloud platforms, USB devices, file servers, local folders, and other Synology systems.
Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.

Snapshot Replication
Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.

Smart and scalable surveillance
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.

Simple-to-deploy local surveillance
Wide device compatibility
Connect up to 75 IP cameras from a selection of over 8,600 validated models thanks to Synology Surveillance Station’s wide camera compatibility.

Multi-platform convenience
Monitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app.

Secure and private storage
Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.

Flexible monitoring of multiple locations
Assisted camera deployment
Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.

Centralized management and monitoring
Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.

Time-saving video analytics
Take advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.

Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS, featuring built-in data protection.

Synology has you covered
The RS2423RP+II is backed by Synology’s 3-year hardware warranty.9 An optional 2-year extended warranty is available in select regions to extend coverage to 5 years.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive capacity	0 GB
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	BTRFS, ext4, ext3, FAT32, NTFS, HFS+, exFAT
RAID levels	JBOD, 0, 1, 5, 6, 10
Storage drive sizes supported	2.5,3.5"
Maximum number of drives (with expansion)	24
Processor
Processor generation	AMD Ryzen 1000 Series
Processor manufacturer	AMD
Thermal Design Power (TDP)	54 W
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	3.35 GHz
Processor family	AMD Ryzen
Processor model	V1780B
Processor cores	4
Number of processors installed	1
L3 cache	4 MB
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	32 GB
Memory slots	2
Memory form factor	UDIMM
ECC	Yes
Network
Ethernet LAN data rate supported (max)	10000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wake-on-LAN ready	Yes
Supported network protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Wake-on-WAN ready	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
PCI Express x8 (Gen 3.x) slots	1
Ethernet LAN (RJ-45) ports	3
Expansion ports quantity	1
Hard drive
RAID support	Yes
Supported file systems	BTRFS, ext4, ext3, FAT32, NTFS, HFS+, exFAT
RAID levels	JBOD, 0, 1, 5, 6, 10
Design
Fan diameter 2	6 cm
Cooling type	Active
Fan diameter	6 cm
Built-in display	No
Product colour	Black
Number of fans	3 fan(s)
LED indicators	Power, Status, Alarm
Chassis type	Rack (2U)
Technical details
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Built-in display	No
Product colour	Black
Noise level	56.2 dB
LED indicators	Power, Status, Alarm
Chassis type	Rack (2U)
Supported protocols	SMB, AFP, NFS, FTP, WebDAV, Rsync
Expansion description	Mini-SAS HD
Number of fans	3 fan(s)
Doesn't contain	Lead, Mercury, Cadmium
Warranty period	3 year(s)
Compliance certificates	Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS
Performance
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
On/off switch	Yes
Security algorithms	SSL/TLS, SSH, HTTPS
Reset button	Yes
Operating system installed	DiskStation Manager
Noise level	56.2 dB
Snapshot	Yes
Cooling
Cooling type	Active
Fan diameter	6 cm
Number of fans	3 fan(s)
Security
Security algorithms	SSL/TLS, SSH, HTTPS
Software
Operating system installed	DiskStation Manager
Management features
On/off switch	Yes
Reset button	Yes
Power
Power consumption (HDD standby)	42.33 W
Power supply unit (PSU) capacity	550 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Power consumption (typical)	114.86 W
Number of phases	1
Weight & dimensions
Width	482 mm
Depth	578 mm
Height	88 mm
Weight	11.9 kg
Packaging content
Quick installation guide	Yes
Cables included	Power
Power cables quantity	2
Features
Product languages	Multi
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Operating altitude	0 - 5000 m
Packaging data
Cables included	Power
Other features
Size (imperial)	48.3 cm (19")
Supported protocols	SMB, AFP, NFS, FTP, WebDAV, Rsync
Expansion description	Mini-SAS HD
Doesn't contain	Lead, Mercury, Cadmium
Warranty period	3 year(s)
Compliance certificates	Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS
