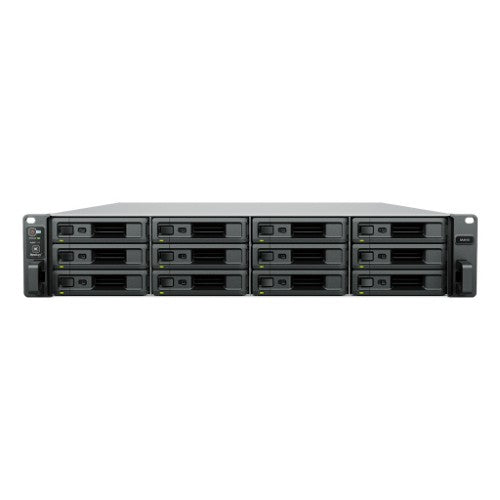

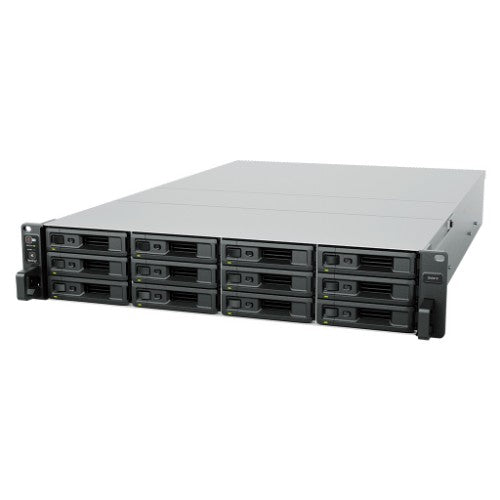

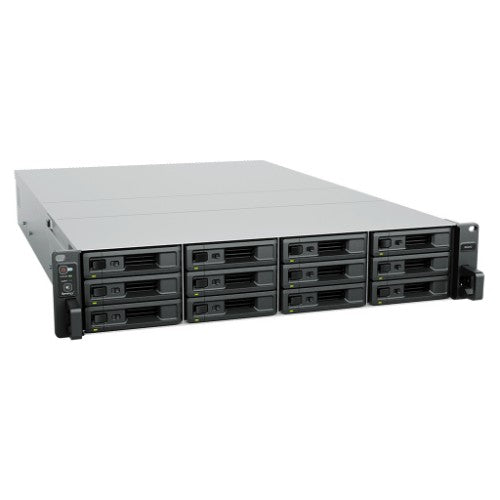

Synology SA SA3410 NAS Rack (2U) Intel® Xeon® D-1541 16 GB DDR4 192 TB HDD DiskStation Manager Black, Grey

192TB, 2U, Intel Xeon D-1541 (8x 2.1GHz), 16GB DDR4 ECC RDIMM, 12x 2.5"/3.5" SAS/SATA, 4x 1GbE, 2x 10GbE, 2x USB 3.2 Gen1

Key Features

• Over 6,200/3,000 MB/s seq. read/write, built-in 10GbE, and hardware and software redundancy
• Add up to 84 extra drive bays, 40GbE or Fibre Channel, and SSD cache volumes whenever needed
• Back up 1,000+ endpoints, manage 128 IP cameras, or provide mailboxes for up to 1,600 users

Description

When scalability meets performance
The Synology SA3610 and SA3410 are designed for on-demand scalability and offer up to 1.7 PB of storage when fully expanded.1 They let enterprise data centers, studios, and growing businesses store large data volumes without sacrificing speed and performance.

Flexibly expand storage capacity
Scale up your SA3610 and SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.

Networking capabilities
Built-in dual 10GbE RJ-45 ports allow for high-speed network transmission right out of the box. Users can also boost network redundancy and bandwidth by adding optional 10/25/40GbE and Fibre Channel adapter cards into the two available PCIe 3.0 expansion slots.3

Reliable and dependable
Protect your data and leverage hardware and software safeguards to ensure data and service availability in the face of disasters or malicious attacks.

Versatile data storage
Consolidate business data, backup data, and more in a highly scalable server.

- File server
- Backup repository
- Business application platform

File server
Utilize SA3610 and SA3410’s storage capacity and flexible expansion capabilities to host large amounts of data on a central repository.

Share and sync files with an all-in-one private cloud solution
Empower employees across your organization to access, edit, and share corporate files securely and conveniently from desktop, mobile, or web browser platforms. Leverage powerful admin tools to track and set file permissions and control access to documents and files.

Enforce company policies with Windows AD and SMB/NFS
Configure and implement group policies for groups of users using access control lists (ACL) through Windows Active Directory/LDAP integration. Enable user access to files or folders via SMB or NFS protocols.

Sync files across business sites
Synology Drive ShareSync enables one or two-way syncing between multiple Synology servers so that all team members can access the same set of data on their nearest file server.

Reduce storage footprint
Cut bandwidth use, boost sync speeds, and reduce storage footprint by intelligently syncing the bulk of your data to the cloud with Hybrid Share,6 while deploying Synology devices locally to give teams fast access to all their frequently used data at local network speeds.

Backup repository
Back up PCs, servers, Synology systems, SaaS data, and VMs, and back up your backup servers themselves with a scalable central storage solution.

Bare-metal PC, server, and VM backup
Securely back up Windows clients and servers, Linux endpoints, Synology systems, and VMware® and Hyper-V® virtual machines to the SA3610 and SA3410 with Active Backup for Business. Manage all tasks through a centralized management console and choose between bare-metal or file-level restoration. Built-in data deduplication maximizes storage efficiency.

Protect company SaaS accounts
Protect Microsoft 365 and Google Workspace accounts by maintaining complete offline copies of your crucial information and configurations with Active Backup for Microsoft 365 and Active Backup for Google Workspace.

Flexible off-site backup for shares and LUNs
Use Hyper Backup to back up shared folders, LUNs, system settings, and software packages from your Synology system to a secondary server, external device, or Synology C2 Storage. Set up backup schedules, multi-versioning, and flexible backup rotation, protect data with fine-grained permissions and encryption, and reduce backup sizes with built-in deduplication.
Snapshot Replication enables configurable point-in-time snapshots of shared folders and LUNs with an RPO as low as 5 minutes and recovery within seconds.

Bare-metal backup for Synology systems
Perform bare-metal backups and use multi-versioning and data deduplication to store backup copies of Synology systems, while drastically reducing the amount of space needed to store mission-critical data.

Business application platform
Boost team efficiency by utilizing Synology productivity solutions to work and communicate across teams or test out new software in company-hosted containers or virtual machines.

Collaborative tools for team productivity
Create, edit, and share documents, slides, and spreadsheets with teams in real time. Store files in a secure private cloud to take ownership of your data.
Send and receive emails on Synology’s private email server using powerful webmail tools and experience full data ownership, transparent total cost of ownership, and robust security features.
Stay connected with team members by using secure one-on-one chats, public channels, encrypted private channels, and group conversations for efficient workplace communication.

Test out applications in a contained environment
Safely test out new packages, software, and applications in an isolated environment using Docker and Synology Virtual Machine Manager7 (VMM) — a hypervisor for Windows®, Linux®, and Virtual DSM.

Centralized monitoring and management
Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Central Management System (CMS)
Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight
Monitor your global Synology fleet’s performance, backup status, login activity and more with the power of the cloud.

Specifications

Storage
Total installed storage capacity	192 TB
Online RAID migration	Yes
Online RAID expansion	Yes
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, 5, 6, 10, F1, JBOD
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Storage drive sizes supported	2.5,3.5"
Processor
Processor manufacturer	Intel
Processor threads	16
Processor cache	12 MB
Processor boost frequency	2.7 GHz
CPU configuration (max)	1
Conflict-Free processor	Yes
Processor frequency	2.1 GHz
Processor family	Intel® Xeon®
Processor model	D-1541
Processor cores	8
Number of processors supported	1
Memory
Internal memory type	DDR4
Internal memory	16 GB
Maximum RAM supported	128 GB
Memory slots	4
Memory form factor	RDIMM
ECC	Yes
Network
Link aggregation	Yes
Ethernet LAN data rate supported (max)	10000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wake-on-LAN ready	Yes
Supported network protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
iSCSI support	Yes

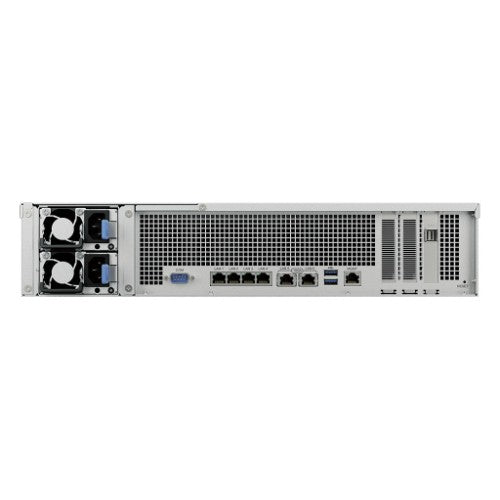

Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
PCI Express x8 (Gen 3.x) slots	2
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	7
Hard drive
RAID support	Yes
Supported file systems	BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, 5, 6, 10, F1, JBOD
Design
Built-in speaker(s)	No
Cooling type	Active
Fan diameter	8 cm
Built-in display	No
Product colour	Black, Grey
Number of fans	4 fan(s)
LED indicators	Alarm, Power, Status
Chassis type	Rack (2U)
Technical details
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Built-in display	No
Card reader integrated	No
Product colour	Black, Grey
Number of users	16000 user(s)
Noise level	49.8 dB
Multilingual support	Yes
LED indicators	Alarm, Power, Status
Chassis type	Rack (2U)
Buzzer	Yes
Number of fans	4 fan(s)
Sustainability compliance	Yes
Sustainability certificates	UL ECOLOGO
Compliance certificates	BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RoHS, UKCA, VCCI
Performance
Built-in UPnP AV media server	Yes
Built-in FTP server	Yes
System log	Yes
Share folder	SMB/AFP/FTP
Hot spare	Yes
Browser supported	Google Chrome, Firefox, Microsoft Edge, Safari
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Card reader integrated	No
On/off switch	Yes
Security algorithms	AES, SSH, SSL/TLS
Reset button	Yes
Operating system installed	DiskStation Manager
Number of users	16000 user(s)
Noise level	49.8 dB
Multilingual support	Yes
Management protocols	SNMP
Buzzer	Yes
Access Control List (ACL)	Yes
Snapshot	Yes
Cooling
Cooling type	Active
Fan diameter	8 cm
Number of fans	4 fan(s)
Security
Security algorithms	AES, SSH, SSL/TLS
Access Control List (ACL)	Yes
Software
Operating system installed	DiskStation Manager
Management features
On/off switch	Yes
Reset button	Yes
Management protocols	SNMP
Power
Power consumption (HDD standby)	58.23 W
Power supply location	Built-in
Power supply unit (PSU) capacity	550 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Power consumption (typical)	137.54 W
Number of power supply units	1
Weight & dimensions
Width	482 mm
Depth	724 mm
Height	88 mm
Packaging content
Cables included	AC
Power cables quantity	2
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Secure Key Technology version	1.00
Intel Enhanced Halt State	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	Yes
Sustainability
Sustainability compliance	Yes
Sustainability certificates	UL ECOLOGO
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Cables included	AC
Other features
Compliance certificates	BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RoHS, UKCA, VCCI
