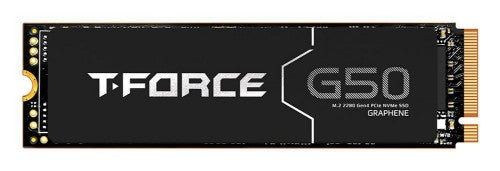

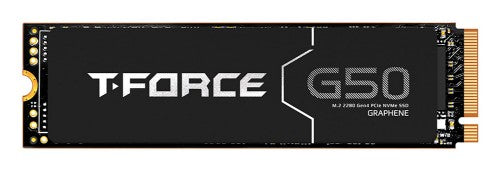

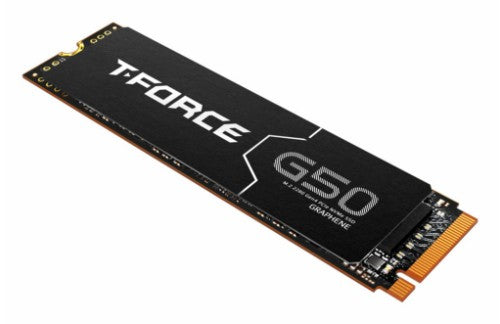

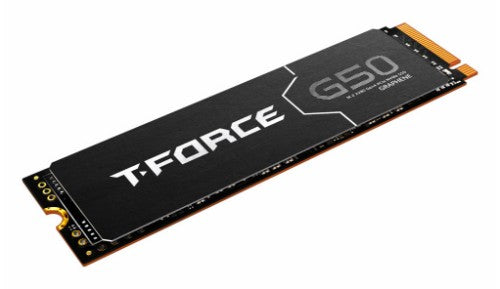

Team Group T-FORCE G50 512 GB M.2 PCI Express 4.0 NVMe 3D NAND

512GB, M.2 2280, PCIe Gen4x4, NVMe, 325 TBW. 3.3V, Black

Key Features

• A new choice for gaming upgrade
• Preset controller solutions
• Different caching grading systems offered to cover users’ needs
• Ultra-thin patented graphene heat-sink makes installations painless
• Optimized performance operation that balances reliability and lifetime
• Smart product status monitoring system
• An environmental protector
• Patented graphene heatsink
• US invention patent (certificate no.: US11051392B2)
• Taiwan invention patent (certificate no.: I703921)
• China utility patent (certificate no.: CN 211019739 U)
• S.M.A.R.T. software patent
• Taiwan invention patent (No.: I751753)

Description

A new choice for gaming upgrade
T-FORCE G50 Pro / G50 PCIe4.0 SSD adopt PCIe Gen4x4 interface. Having read and write speeds reaching 5000 MB/s, the SSDs allow users to enjoy gaming on a new level with easy upgrades and storage capacity increase.

Preset controller solutions
T-FORCE G50 Pro / G50 PCIe4.0 SSD use InnoGrit controller solutions by default, allowing users a peace of mind in their usage experience.

Different caching grading systems offered to cover users' needs
The SSDs come with different grading systems to suit different needs: T-FORCE G50 Pro PCIe4.0 SSD supports DRAM Caching and SLC Caching, whereas T-FORCE G50 PCIe4.0 SSD only supports SLC Caching. Choose the one that suits you best.

Ultra-thin patented graphene heat-sink makes installations painless
The patented ultra-thin heat-sink is made from the optimal heat conductive material—graphene, offering painless, interference-free installations on gaming PCs, gaming, laptops, and PS5 consoles.

Optimized performance operation that balances reliability and lifetime
Windows TRIM SSD Optimization makes sure Free Block is made into use upon being released to speed up transmission and write performances. The wear-leveling technology and ECC enhance data transmission reliability while prolonging SSD lifetime.

Smart product status monitoring system
TEAMGROUP’s patented S.M.A.R.T. monitoring software tracks SSD status at all times and conducts fast and simple settings and inspections to monitor the SSD’s quality status and performance.

An environmental protector
The entire production is lead-free and halogen-free, RoHS-compliant, and adopts recyclable environmentally friendly materials for packaging to conserve Earth by being eco-friendly.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	512 GB
Memory type	3D NAND
Performance
Windows operating systems supported	Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11
Mac operating systems supported	Yes
Linux operating systems supported	Kernel 2.6.33, Yes
Interface	PCI Express 4.0
Component for	Universal
NVMe	Yes
Low-density parity-check (LDPC)	Yes
TBW rating	325
PCI Express interface data lanes	x4
SSD capacity	512 GB
S.M.A.R.T. support	Yes
TRIM support	Yes
Memory type	3D NAND
Mean time between failures (MTBF)	300000 h
Endurance
Mean time between failures (MTBF)	300000 h
Features
Interface	PCI Express 4.0
Component for	Universal
NVMe	Yes
Low-density parity-check (LDPC)	Yes
TBW rating	325
PCI Express interface data lanes	x4
SSD capacity	512 GB
Windows operating systems supported	Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11
S.M.A.R.T. support	Yes
TRIM support	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Kernel 2.6.33, Yes
Memory type	3D NAND
Mean time between failures (MTBF)	300000 h
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Power
Operating voltage	3.3 V
Design
Component for	Universal
Cooling type	Heatsink
Product colour	Black
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	7 g
Height	3.7 mm
Depth	80 mm
System requirements
Windows operating systems supported	Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11
Mac operating systems supported	Yes
Linux operating systems supported	Kernel 2.6.33, Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Non-operating shock	1500 G
Operating vibration	20 G
Technical details
Interface	PCI Express 4.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Storage temperature (T-T)	-40 - 85 °C
Non-operating shock	1500 G
Operating vibration	20 G
Product colour	Black
SSD form factor	M.2
Warranty period	5 year(s)
Compliance certificates	Federal Communications Commission (FCC), CE, UKCA, EAC, RoHS
Doesn't contain	Lead, Mercury, Cadmium
Sequential read/write	Yes
Sequential writing speed	2500 MB/s
Sequential reading	5000 MB/s
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Software
Windows operating systems supported	Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11
Mac operating systems supported	Yes
Linux operating systems supported	Kernel 2.6.33, Yes
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Other features
Cooling type	Heatsink
Product colour	Black
Sequential read/write	Yes
Sequential writing speed	2500 MB/s
Sequential reading	5000 MB/s
Warranty period	5 year(s)
Compliance certificates	Federal Communications Commission (FCC), CE, UKCA, EAC, RoHS
