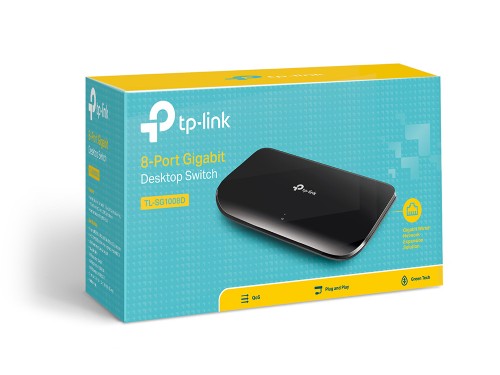

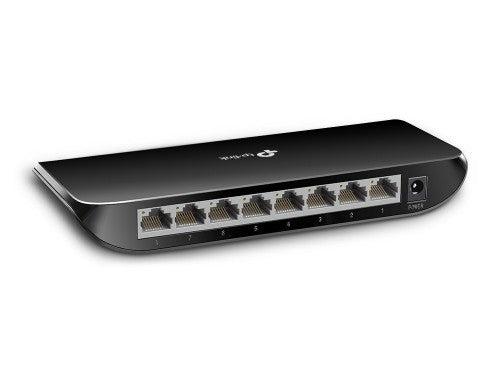

TP-Link 8-Port Gigabit Desktop Network Switch

8-Port Gigabit Desktop Switch, 8 x Gigabit Ethernet, Green Ethernet, 4.6W, 15KB Jumbo, 8K Mac, 2Mb Buffer, Black

Key Features

• 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
• Green Ethernet technology saves the power up to 80%
• IEEE 802.3x flow control provides reliable data transfer
• Plastic case, desktop or wall-mounting design
• Plug and play, no configuration required

Description

The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.

Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,480,800,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	1488000 pps
Packet forwarding rate (1 Gbps)	14880 pps
Jumbo frames	15000
Packet buffer memory	2 MB
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Design
Wall mountable	Yes
Product colour	Black
Stackable	No
LED indicators	Yes
Housing material	Plastic
Rack mounting	No
Certification	CE, FCC, RoHS
Performance
Maximum cable length	100 m
Fanless	Yes
Packet buffer memory	2 MB
Stackable	No
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	3.53 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	4.63 W
Input current	0.6 A
DC input voltage	9 V
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	15.8 BTU/h
Weight & dimensions
Width	180 mm
Depth	90 mm
Height	25.5 mm
Packaging content
User guide	Yes
Cables included	AC
AC adapter included	Yes
Packaging data
AC adapter included	Yes
Package type	Box
Package width	110 mm
Package depth	185 mm
Package height	85 mm
Package weight	300 g
User guide	Yes
Cables included	AC
Sustainability
Sustainability compliance	Yes
Technical details
Product colour	Black
Stackable	No
Housing material	Plastic
Rack mounting	No
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory	2 MB
Certificates
Certification	CE, FCC, RoHS
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators	Yes
Other features
Ethernet LAN data rates	10,100,480,800,1000 Mbit/s
Logistics data
Harmonized System (HS) code	85176990
