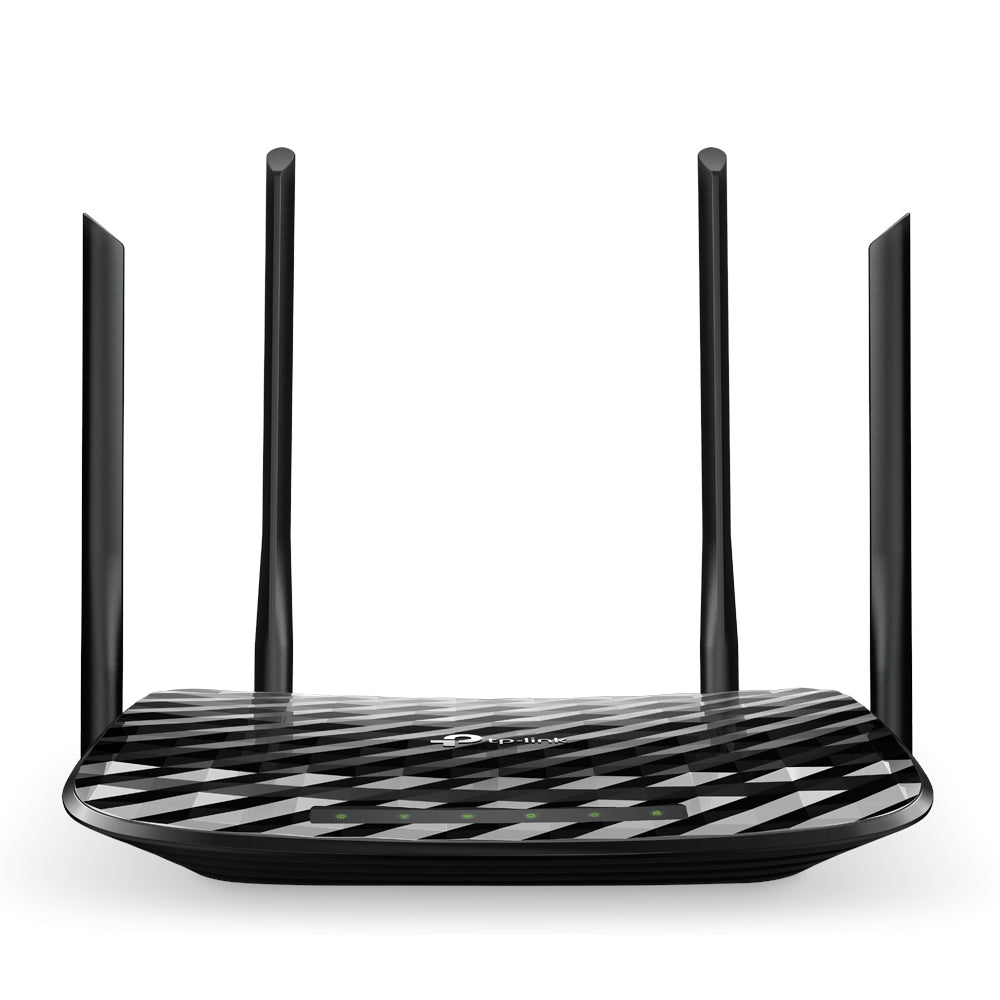

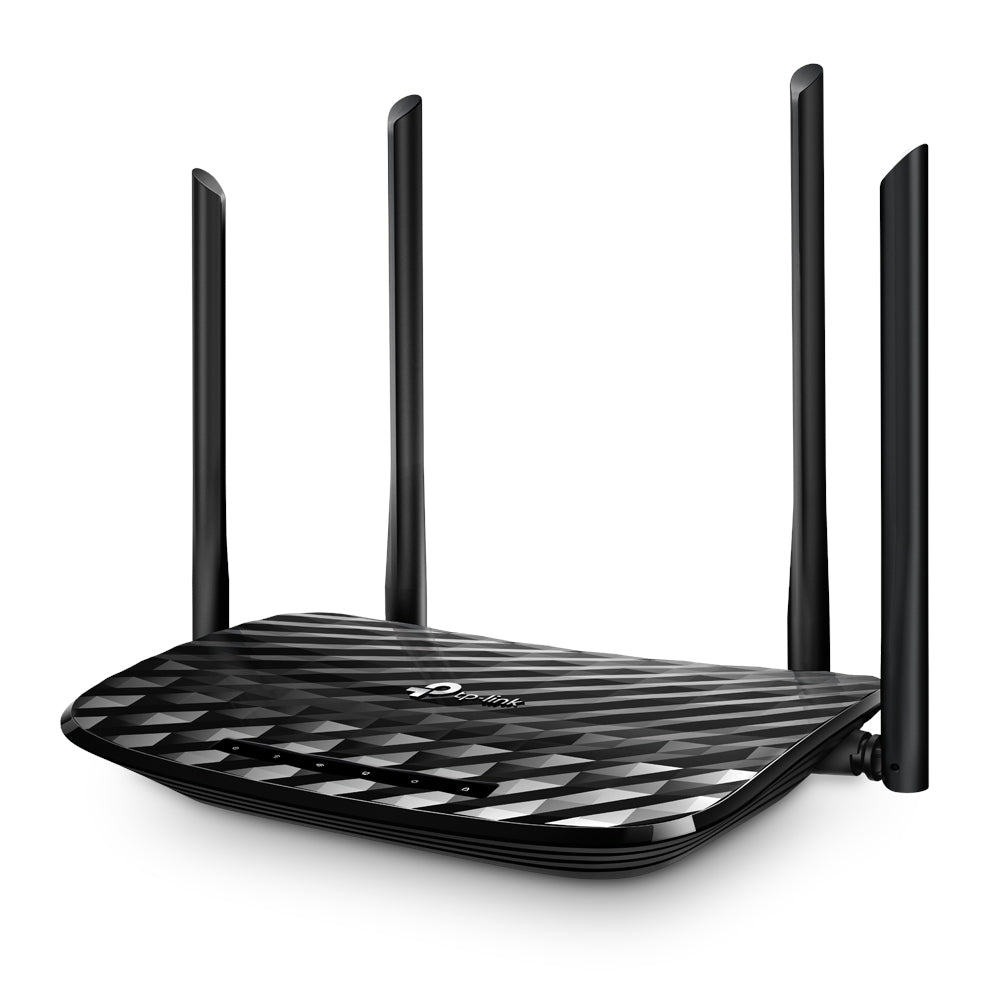

The TP-Link Archer C6 is a dual-band Wi-Fi 5 router for households that need to connect everyday devices, stream HD video or play online games. It suits home users looking to add Wi-Fi to a wired broadband connection, with both wireless and wired connections available.
867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
Management Features
- Tether App
- Webpage
Specification
| Specification | Detail |
|---|---|
| MU-MIMO Technology | Simultaneously transfers data to multiple devices for 2x faster performance. |
| Boosted Coverage | Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals. |
| Access Point Mode | Supports AP Mode to transform your wired connection into the wireless network. |
| EasyMesh-Compatible | Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage. |
| VPN Support | Safely reach files in your local NAS, wherever you are. |
| Easy Setup | Set up your Wi-Fi in minutes with TP-Link Tether app. |
| Smooth Entertainment with AC1200 Dual Band Wi-Fi | The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology. The 2.4GHz band delivers speeds up to 300Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to 867Mbps, ideal for HD video streaming and lag-free online gaming. |

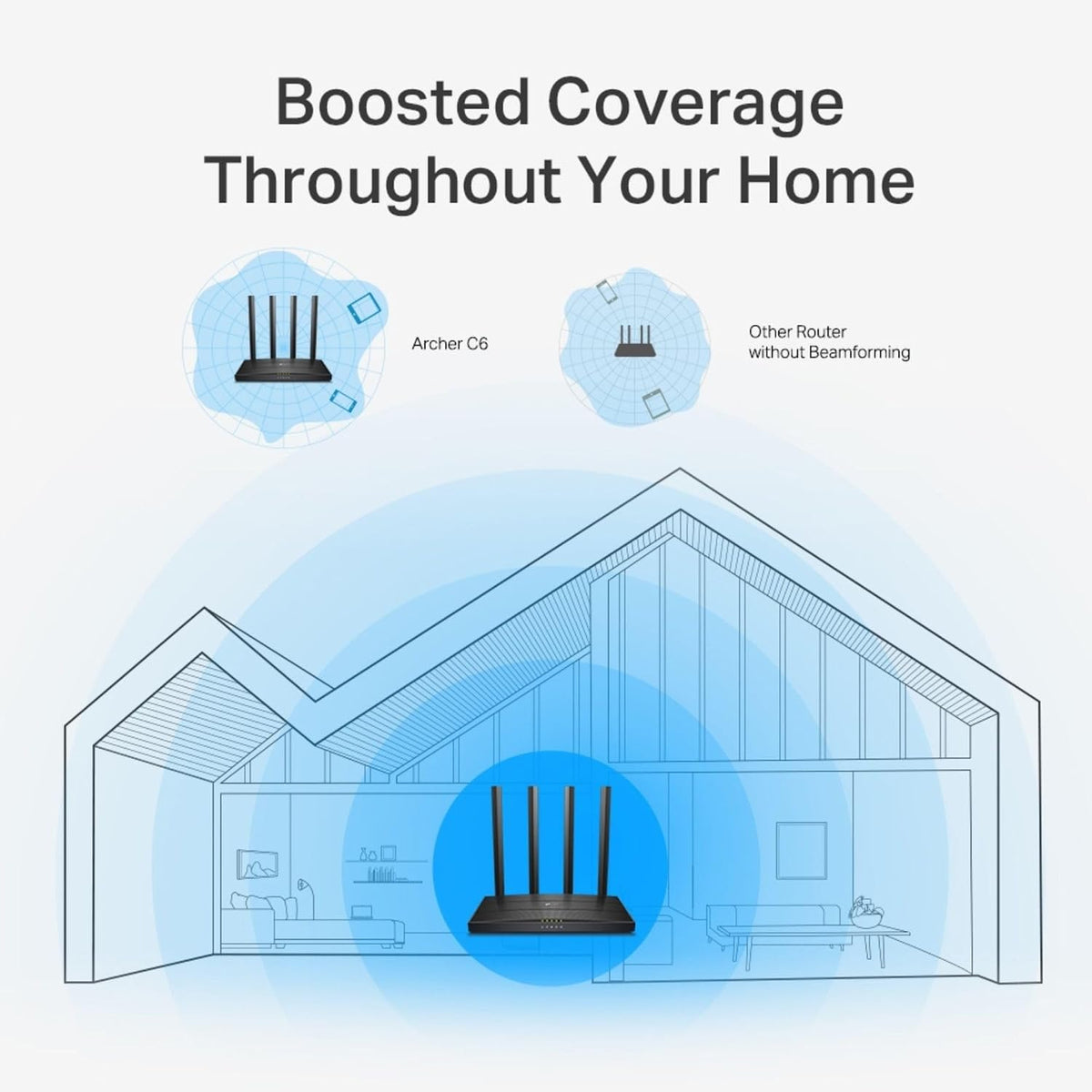

| Boosted Wi-Fi Coverage Throughout Your Home | Four external antennas send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony.Beamforming technology detects devices, even if they are far-away or low-powered, and concentrates wireless signal strength towards them. |
| Flexibly Create Whole Home Mesh WiFi | If you have any dead zones at home, just add another EasyMesh-compatible devices to further form your whole home mesh WiFi. No more searching for a stable connection. |
| MU-MIMO Brings More Simultaneous Connections | MU-MIMO lets the Archer C6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently! |
| Standards and Protocols | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses 4x Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | Medium Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation |
| Working Modes | Router Mode Access Point Mode |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1x 5 GHz Guest Network 1x 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP WireGuard |
| VPN Client | OpenVPN PPTP WireGuard |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |

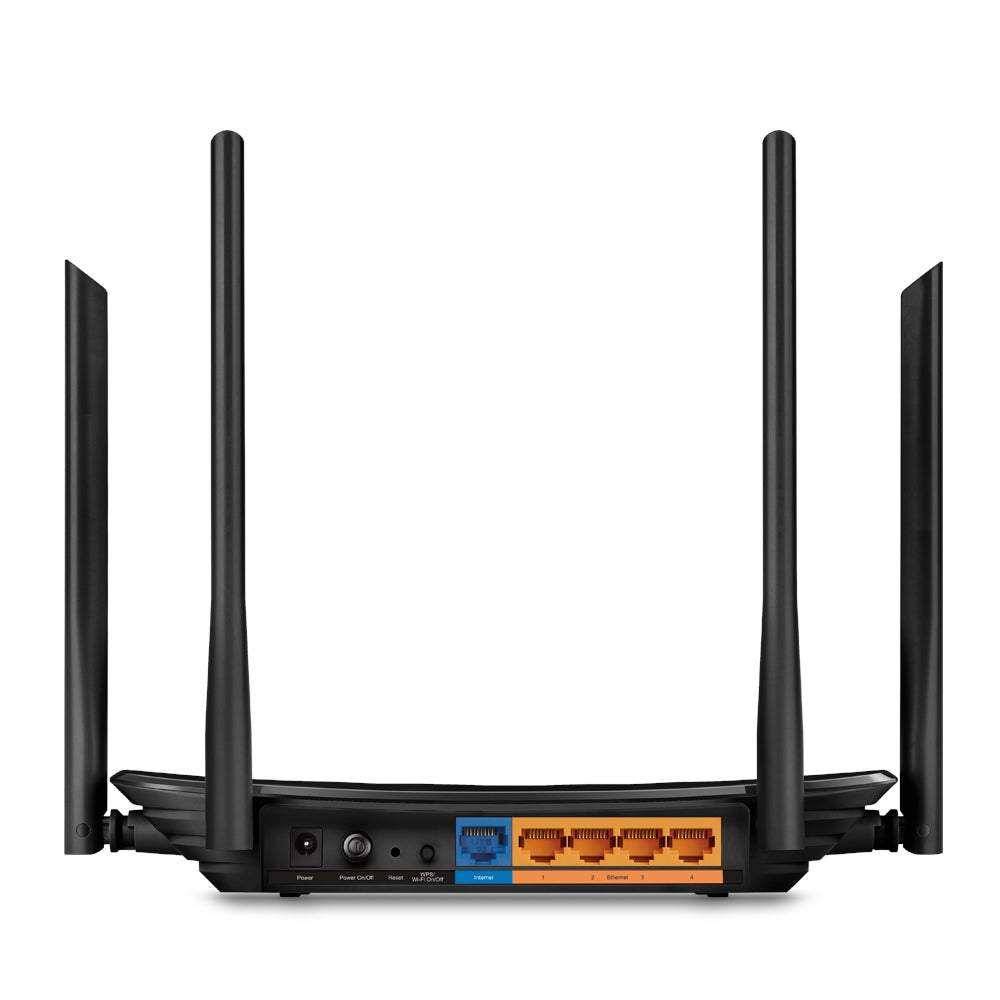

| Ethernet Ports | 1x Gigabit WAN Port 4x Gigabit LAN Ports |
| Buttons | WPS/Wi-Fi Button Reset Button |
| Power | 12 V DC 1 A |
| Protocols | IPv4 IPv6 |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer C6 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) Port: 80/443 Protocol: TCP DNS Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) Port: 67 Protocol: UDP App management Manage and configure device through app Port: 20002 Protocol: UDP Alexa service Detect Alexa-enabled devices in the LAN Port: 5353 Protocol: UDP |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| WiFi Transmission Power | CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity | 5GHz: 11a 6Mbps:-93dBm;11a 54Mbps:-78dBm; 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm |
| Dimensions (W x D x H) | 8.5 x 4.6 x 1.2 in (215 x 117 x 32 mm) |
| Package Content | Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
-
