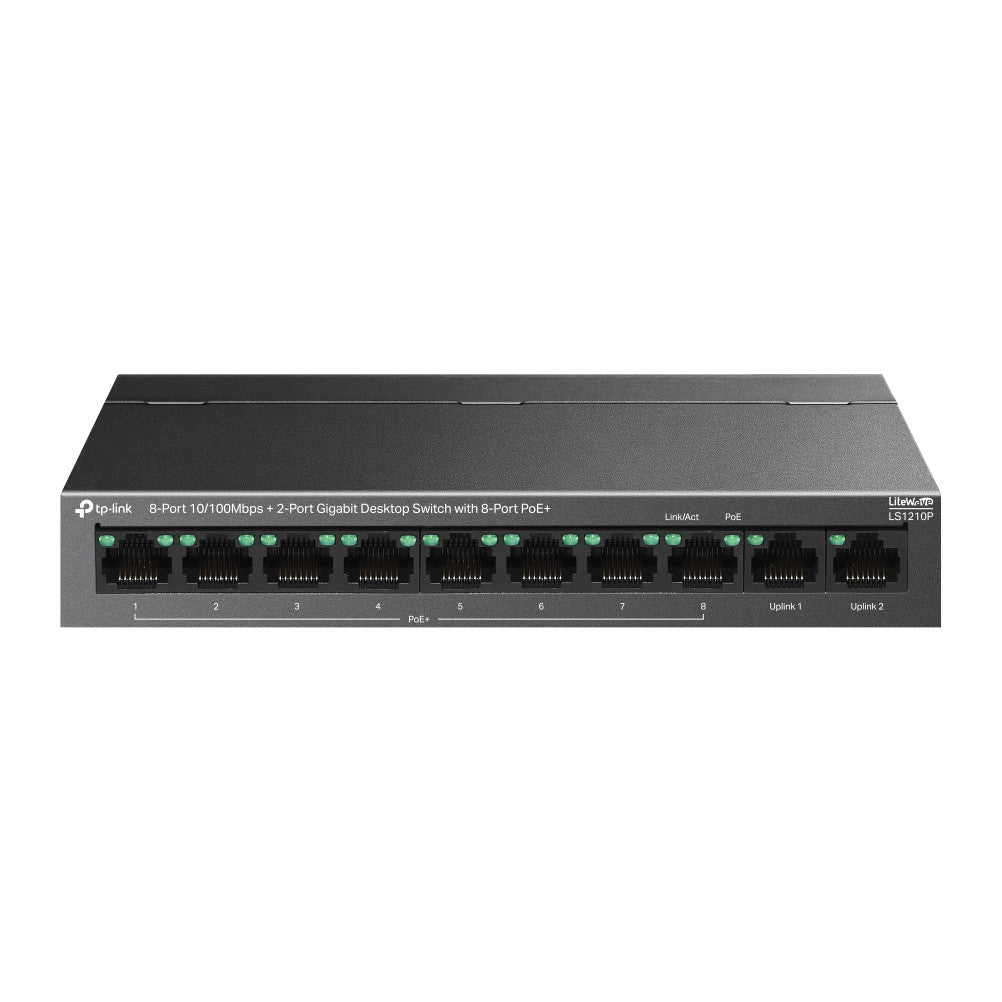

The TP-Link LS1210P is a desktop network switch for small offices, home networks and surveillance installations. It provides eight PoE+ ports for connecting compatible devices such as cameras and access points, plus two Gigabit ports for non-PoE network connections.

Power and data can travel over one Ethernet cable to each PoE device, helping simplify installations where separate power supplies are inconvenient. The switch provides a 96 W PoE budget, with up to 30 W per PoE port. Extend Mode supports data and power transmission up to 250 m, with port speed reduced to 10 Mbps in this mode. Isolation Mode separates client traffic, while PoE Auto Recovery can restart PoE devices that stop responding. Fanless operation keeps the switch quiet, and it can be placed on a desktop or wall-mounted.

Key features

• Eight 10/100 Mbps RJ45 ports support 802.3af/at PoE+ devices.
• Two 10/100/1000 Mbps RJ45 ports provide Gigabit non-PoE connections.
• A total 96 W PoE budget supports multiple powered devices.
• Extend Mode reaches up to 250 m, with speed reduced to 10 Mbps.
• Isolation Mode separates traffic between connected clients.
• PoE Auto Recovery restarts dropped or unresponsive powered devices.
• Plug-and-play setup requires no configuration.
• Fanless design provides silent operation; desktop and wall mounting are supported.

Compatibility

Connect compatible Ethernet devices to the RJ45 ports; PoE output is compliant with 802.3af/at. The two Gigabit ports do not provide PoE. Good to know: PoE-powered equipment and Ethernet cables are not included, so check device power requirements and cable suitability before installation.

In the box

• TP-Link LS1210P
• Power Adapter
• Rubber Feet
• Installation Guide

Specifications

With PoE+ on eight ports, two Gigabit uplinks and practical recovery and isolation features, the LS1210P offers a straightforward way to expand a wired network and power compatible devices.
