TP-Link NE211-Outdoor gateway/controller

1 × 2.5GE PoE/LAN Port + 1 Nano SIM, 48 V, IP67, Wall Mount, Bluetooth 5.4, Plug and Play, 3.4 Gbps, IPv6, 1 x RJ-45, White, 280.4 x 106.5 x 56.8 mm

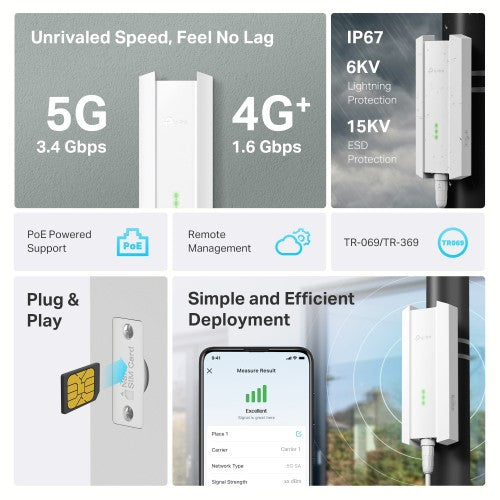

Key Features

• Unrivaled Speed with 5G: Download speeds reach up to 3.4 Gbps—22× faster than 4G
• LTE-Advanced Cat 19: Download speeds up to 1600 Mbps
• Performance-Driven for Outdoor Environments: 1× 2.5GE PoE Port
• IP67 Weatherproof: Withstands environments with rain and dust
• Plug and Play: No configuration needed. Compatible with SIM cards in 100+ countries
• Remote Management: TR-069 and TR-369 protocols are supported

Description

Unrivaled Speed with 5G, Revolutionary Experience

5G greatly boosts the download speed up to 3.4 Gbps–22x faster than 4G LTE. It brings fast responsive network connections to tomorrow’s mobile devices, with only 1 ms latency.

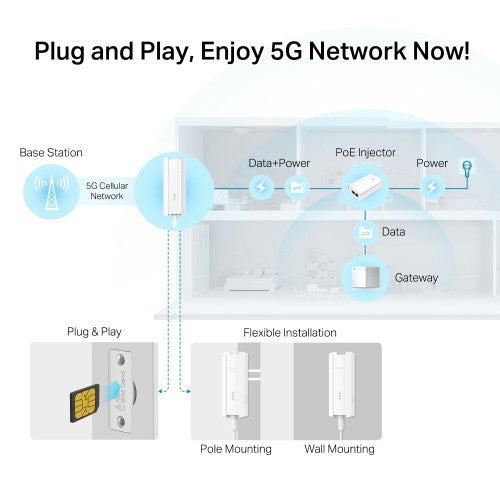

Plug and Play, Enjoy 5G Network Now!

NE211-Outdoor ensures a comfortable and no-block network installation via SIM card and PoE powered supply. Plug in your SIM card, connect the injector and gateway, and enjoy high-speed internet!

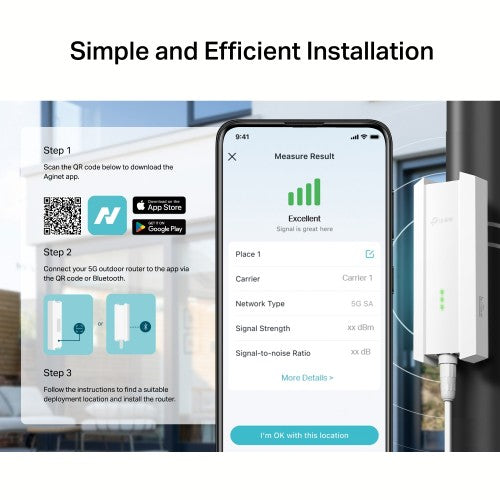

Simple and Efficient Installation

Connect your router to the smart phone, and follow the instructions on the free Aginet app to efficiently find a suitable deployment location and install the router.

IP67 Weatherproof Enclosure for Outdoor Environments

NE211-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

Specifications

Design
Mounting type	Wall mounting
Product colour	White
International Protection (IP) code	IP67
Features
Plug and Play	Yes
Interface	1× 2.5GE PoE/LAN Port + 1 Nano SIM
Antenna type	Internal
Performance
Control display unit	No
Mounting type	Wall mounting
Product colour	White
International Protection (IP) code	IP67
Protocols
Supported network protocols	IPv6
Network
Networking standards	IEEE 802.3at
Wi-Fi	Yes
Data network	3G, 4G, 5G, LTE
Downlink/uplink speed	3400 Mbit/s
Ports & interfaces
Interface	1× 2.5GE PoE/LAN Port + 1 Nano SIM
SIM card type	NanoSIM
SIM card slot	Yes
Management features
Reset button	Yes
Power
Power over Ethernet (PoE)	Yes
Input voltage	48 V
Power over Ethernet (PoE) type supported	Passive PoE
Weight & dimensions
Width	280.4 mm
Height	56.8 mm
Depth	106.5 mm
Packaging content
Quick installation guide	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Technical details
Plug and Play	Yes
Interface	1× 2.5GE PoE/LAN Port + 1 Nano SIM
Antenna type	Internal
Wi-Fi	Yes
AC adapter included	Yes
Display
Control display unit	No
Antenna
Antenna type	Internal
