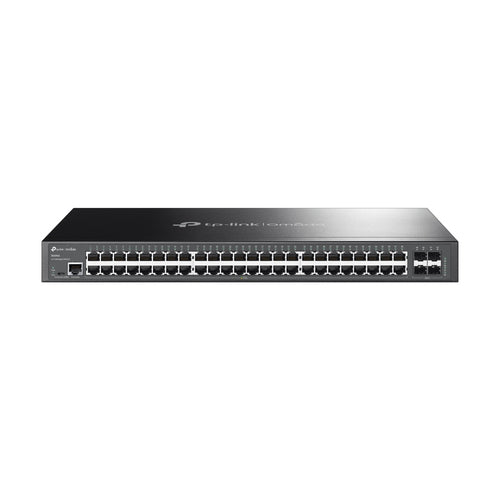

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots

48× 10/100/1000 Mbps RJ45, 4× Gigabit SFP Slots, RJ45 / Micro-USB Console Ports, 104 Gbps, 77.38 Mpps, MAC 16K, 440×220×44 mm

Key Features

• Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management
• Static Routing: Helps route internal traffic for more efficient use of network resources
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L2+
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	48
Console port	RJ-45/Micro-USB
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
10G support	No
Policy-based routing	Yes
Virtual LAN features	Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv6 routes	48
IPv4 routes	48
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Data transmission
Jumbo frames	9000
MAC address table	16000 entries
Switching capacity	104 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	77.38 Mpps
Number of VLANs	4000
Multicast Listener Discovery (MLD) snooping	Yes
Security
Loop protection	Yes
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	AAA, RADIUS, TACACS+
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Form factor	1U
Product colour	Black
Rack mounting	Yes
Certification	CE, FCC, RoHS
Performance
Internal memory	256 MB
Flash memory	32 MB
Fanless	Yes
Power
Power consumption (max)	34.86 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	118.94 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
IPv4 & IPv6 features
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Technical details
Form factor	1U
Product colour	Black
Rack mounting	Yes
Memory
Internal memory	256 MB
Flash memory	32 MB
Certificates
Certification	CE, FCC, RoHS
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
