TP-LINK

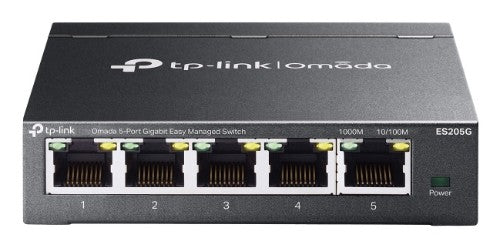

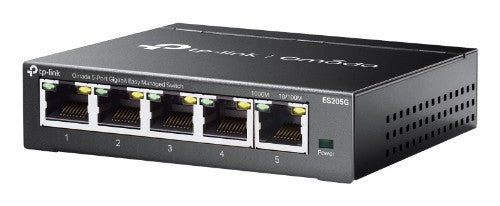

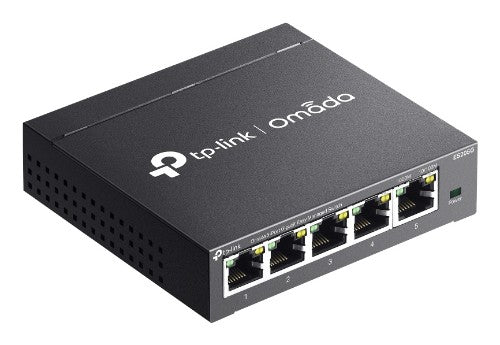

TP-Link Omada 5-Port Gigabit Easy Managed Switch

SKU ES205G
£20.37
£20.37
Excluding taxes
5× 10/100/1000Mbps RJ-45, AUTO Negotiation/AUTO MDI/MDIX, 10 Gbps, 8K MAC, 5VDC / 0.6A

Key Features

  • 5× 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app†
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Description

Omada 5-Port Gigabit Easy Managed Switch

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

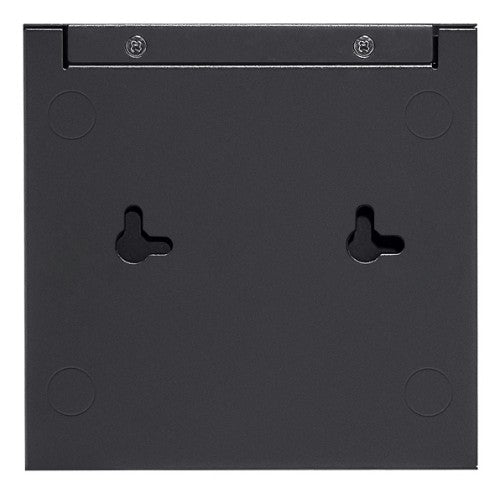

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Specifications

Management features
Reset button Yes
Switch type Managed
Quality of Service (QoS) support Yes
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
VLAN support Yes
Port mirroring Yes
Link aggregation Yes
Flow control support Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping Yes
Data transmission
Jumbo frames 15
Packet buffer memory 4 MB
MAC address table 8000 entries
Switching capacity 10 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Forwarding rate 7.4 Mpps
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP client
Design
Wall mountable Yes
Reset button Yes
Product colour Black
LED indicators Yes
Performance
Fanless Yes
Packet buffer memory 4 MB
Auto-negotiation Yes
Power
Power supply included Yes
DC input voltage 5 V
Power source AC/DC
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Virtual LAN features
VLAN support Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width 100 mm
Depth 98 mm
Height 25 mm
Packaging content
User guide Yes
Packaging data
Package type Box
User guide Yes
Technical details
Product colour Black
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory 4 MB
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators Yes
