TP-LINK

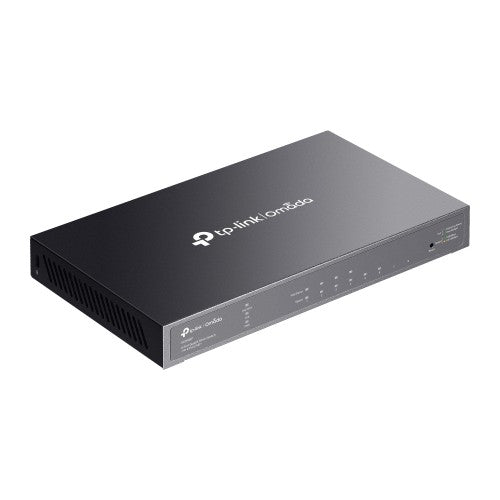

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+

SKU SG2008P
£69.84
£69.84
Excluding taxes
8× 10/100/1000 Mbps RJ45 PoE, 16 Gbps, 8K MAC, 9 KB Jumbo, 209 x 126 x 26mm

Key Features

  • 8× Gigabit ports (4× 802.3at/af-compliant PoE+ ports)
  • 62 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for silent operation

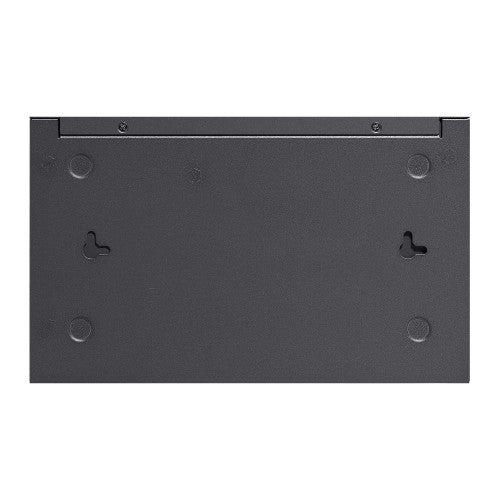

  • Durable metal casing and desktop/wall mounting design

Description

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
ARP inspection Yes
Switch type Managed
Web-based management Yes
System event log Yes
Quality of Service (QoS) support Yes
Multicast support Yes
MIB support MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
Switch layer L2/L2+
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support Yes
Spanning tree protocol Yes
Rate limiting Yes
Port mirroring Yes
Number of VLANs 4094
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
IGMP snooping Yes
Data transmission
Jumbo frames 9000
Packet buffer memory 4.1 MB
MAC address table 8000 entries
Switching capacity 16 Gbit/s
Number of queues 8
Jumbo frames support Yes
Forwarding rate 11.9 Mpps
Number of VLANs 4094
Security
Authentication MAC-based authentication, Web-based authentication
Security algorithms 802.1x RADIUS
MAC address filtering Yes
IGMP snooping Yes
Authentication type RADIUS
DHCP features DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
Multicast features
Multicast support Yes
Protocols
Management protocols SNMPv1/v2c/v3
IPv4 & IPv6 features IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Product colour Black
LED indicators Yes
Rack mounting Yes
Certification CE, FCC, RoHS
Performance
Fanless Yes
Packet buffer memory 4.1 MB
Auto-negotiation Yes
Power
Power consumption (max) 77.3 W
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 263.6 BTU/h
Virtual LAN features
VLAN support Yes
Number of VLANs 4094
Weight & dimensions
Width 209 mm
Depth 126 mm
Height 26 mm
Packaging content
Manual Yes
Packaging data
Package type Box
Manual Yes
IPv4 & IPv6 features
IPv4 & IPv6 features IPv6 Telnet, IPv6 ping, IPv6 tracert
Technical details
Product colour Black
Rack mounting Yes
Memory
Packet buffer memory 4.1 MB
Certificates
Certification CE, FCC, RoHS
Indication
LED indicators Yes
