The TP-Link Omada DR3150 is a wired DSL gateway for small businesses that need a flexible internet connection and central network management. It suits offices and branch sites using VDSL or ADSL broadband, with Ethernet WAN available for an additional connection.

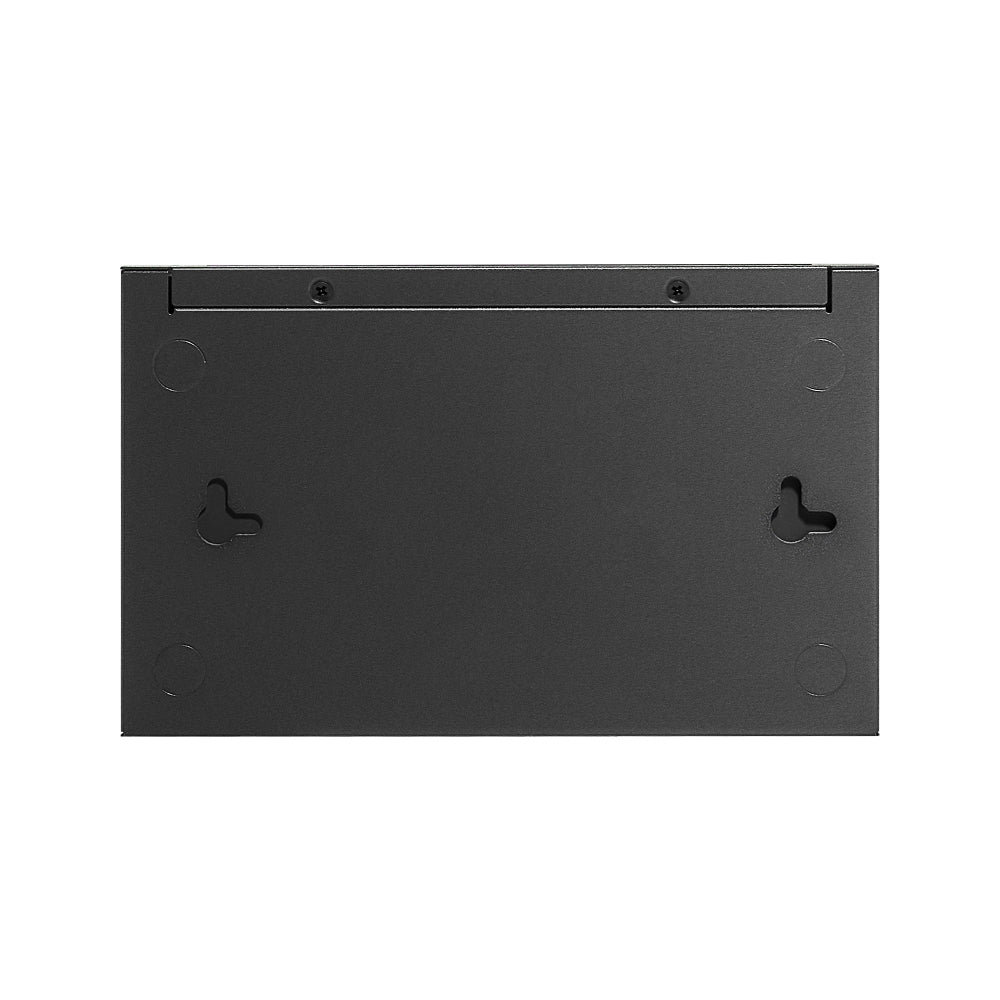

Support for VDSL2 35b allows DSL access speeds of up to 350 Mbps, subject to line and network conditions. The gateway combines one RJ11 DSL port with four Gigabit RJ45 ports, including a configurable WAN/LAN port, and two USB 2.0 ports. Load balancing between DSL and Ethernet WAN can help make better use of available connections. VPN options include IPSec, PPTP, L2TP, OpenVPN, WireGuard and GRE for secure remote access or links between sites. It can be placed on a desktop or wall mounted.

Key features

• Works with VDSL2, ADSL2+, ADSL2 and ADSL connections.
• VDSL2 35b support provides DSL access speeds of up to 350 Mbps.
• Four Gigabit Ethernet ports support wired devices and network connections.
• Load balancing between DSL and Ethernet WAN supports flexible connectivity.
• Two USB 2.0 ports support USB LTE dongles and USB storage.
• Supports a range of VPN protocols for secure connections.
• Omada cloud management is available through an Omada Controller.

Compatibility

Use with a compatible VDSL or ADSL service, or configure Ethernet WAN as required. The USB ports support LTE dongles and USB storage; only one LTE dongle can be used at a time. Centralised cloud management and Omada App features require an Omada Controller. Good to know: this is a wired gateway and does not provide Wi-Fi.

In the box

• TP-Link Omada DR3150
• Power Adapter
• Ethernet Cable
• Phone Cable
• External Splitter
• Mounting Feet
• Quick Installation Guide

Specifications

For small offices that need DSL and Ethernet WAN options, the DR3150 brings wired connectivity, VPN features and Omada management into a desktop or wall-mounted gateway.
