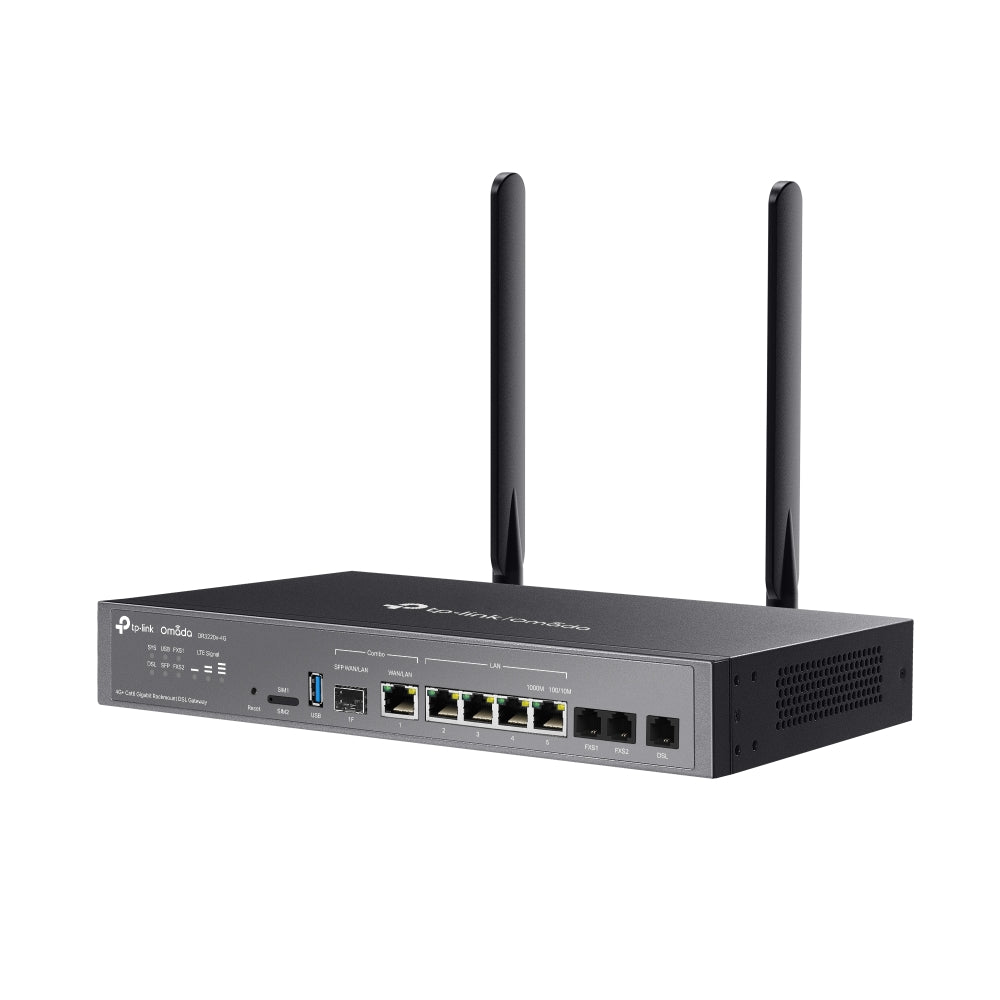

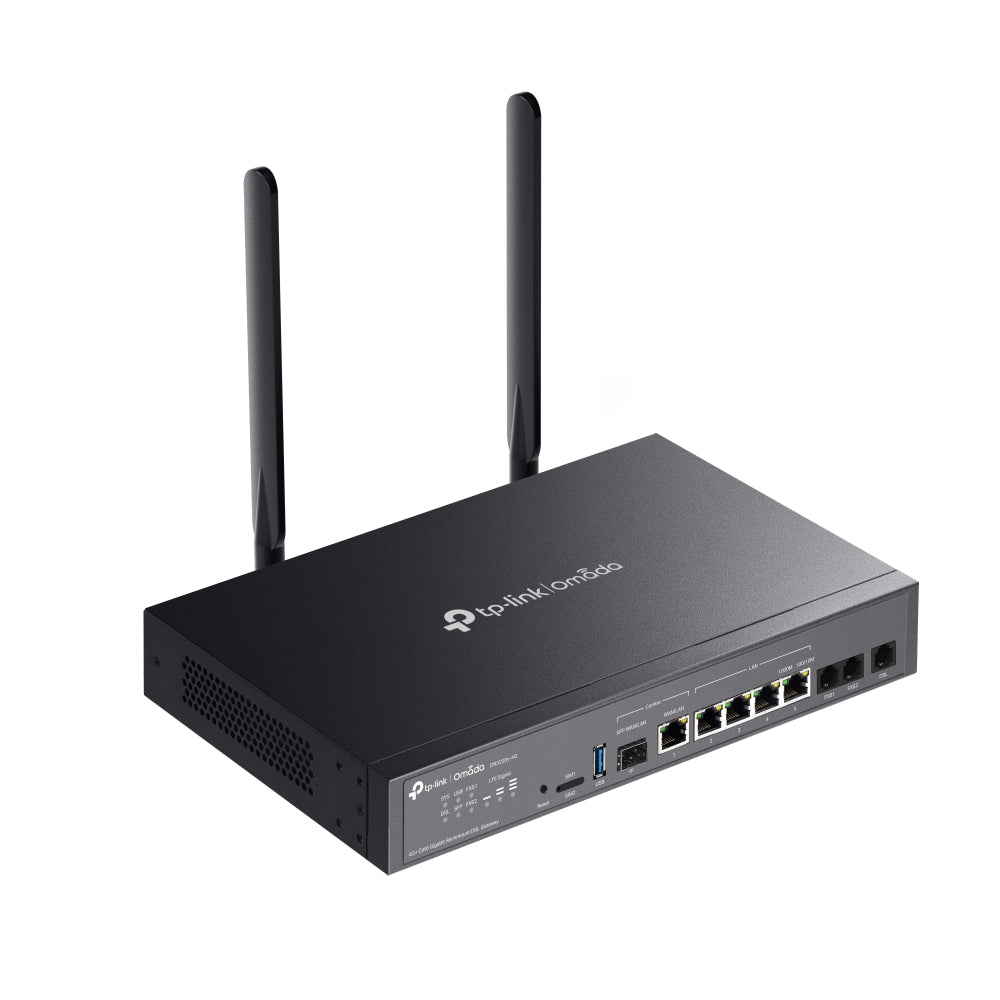

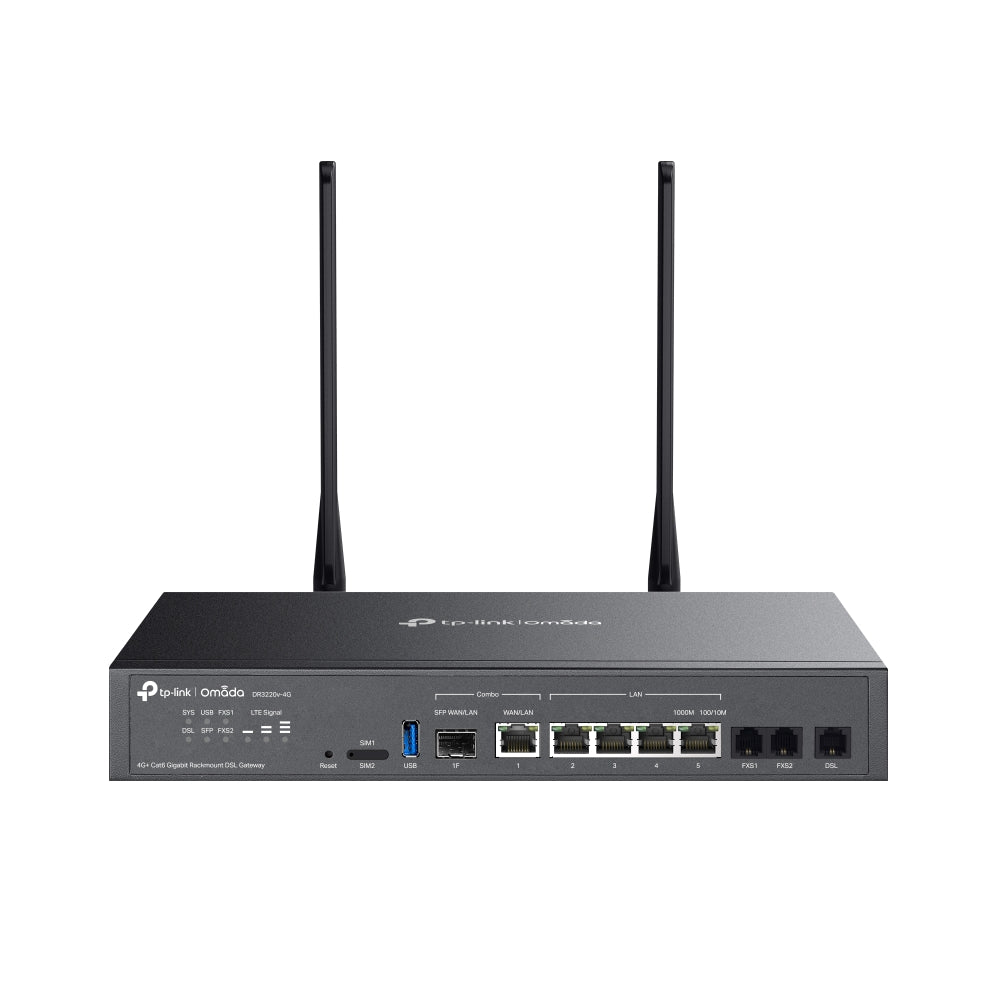

The TP-Link Omada DR3220v-4G is a business DSL gateway for small offices and other networks that need more than one route to the internet. It combines DSL, Ethernet WAN and 4G connectivity, making it suited to businesses that want mobile broadband available as a backup or alongside their wired connections.

Its integrated DSL port supports VDSL2, ADSL2+ and other ADSL connections, while 4G+ Cat6 delivers mobile data at up to 300 Mbps. The gateway can balance traffic across DSL, 4G and Ethernet WAN, and dual Nano SIM support allows 4G/LTE failover. For a managed business network, centralised cloud management brings the gateway into the Omada platform. It also supports a range of VPN protocols for secure network connections.

Key features

• Supports VDSL2, ADSL2+, ADSL2 and ADSL broadband connections.
• 4G+ Cat6 mobile broadband supports download speeds up to 300 Mbps.
• Dual Nano SIM support for 4G/LTE failover.
• Balances connections across DSL, 4G and Ethernet WAN.

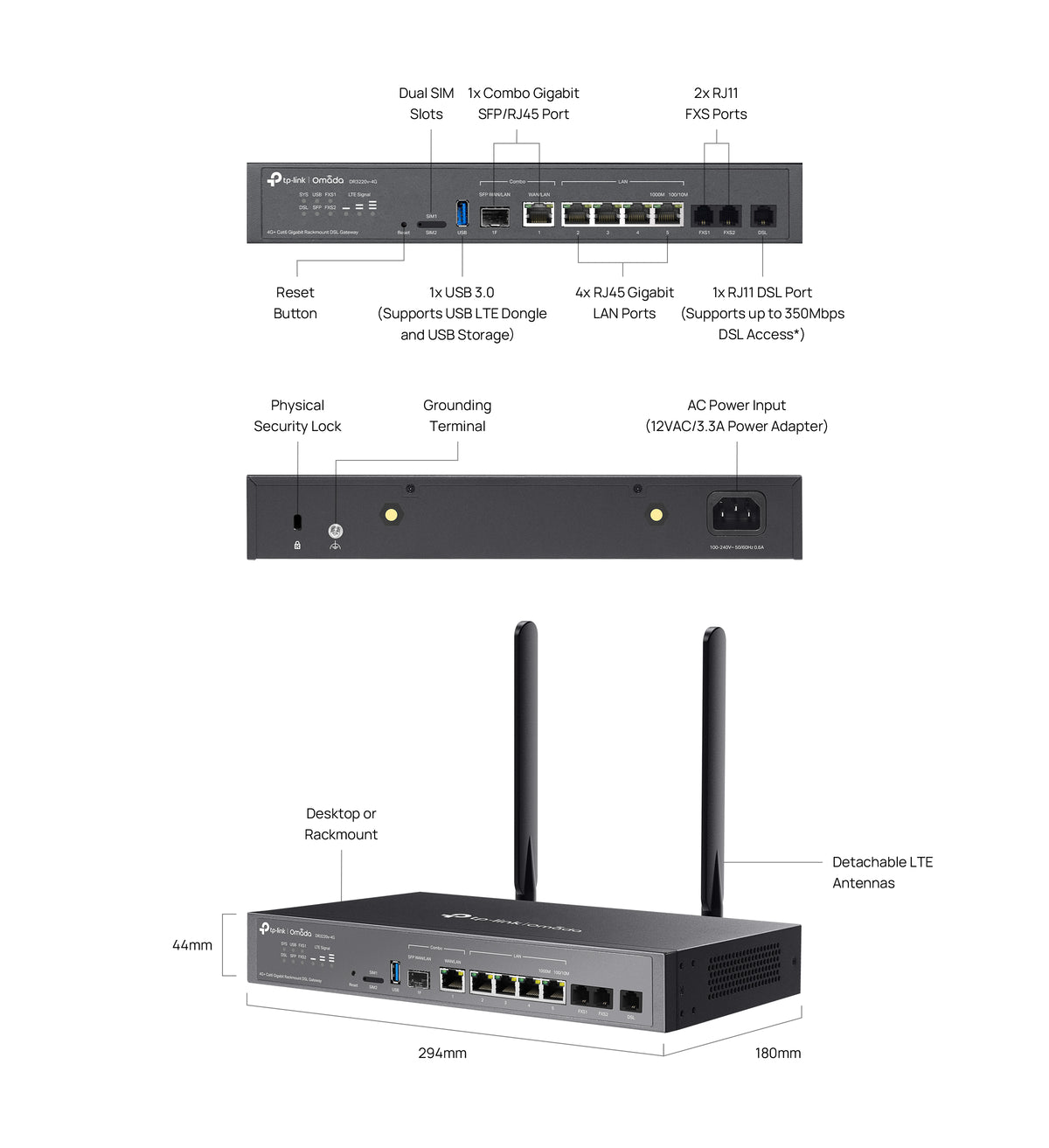

• Four Gigabit RJ45 LAN ports connect wired network devices.
• A Gigabit SFP/RJ45 combo port provides WAN/LAN connectivity.
• Two FXS ports support voice connections.
• IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE and SSL VPN support provides options for remote access.

Compatibility

The gateway supports VDSL2/ADSL2+/ADSL2/ADSL, Ethernet access and 4G/3G USB modems. Its USB 3.0 port supports a 4G/3G dongle or USB storage. It can be installed on a desktop or in a rack. Good to know: Check that your broadband service and mobile network support the connection type and LTE bands you intend to use; the gateway's SIM slots require Nano SIM cards.

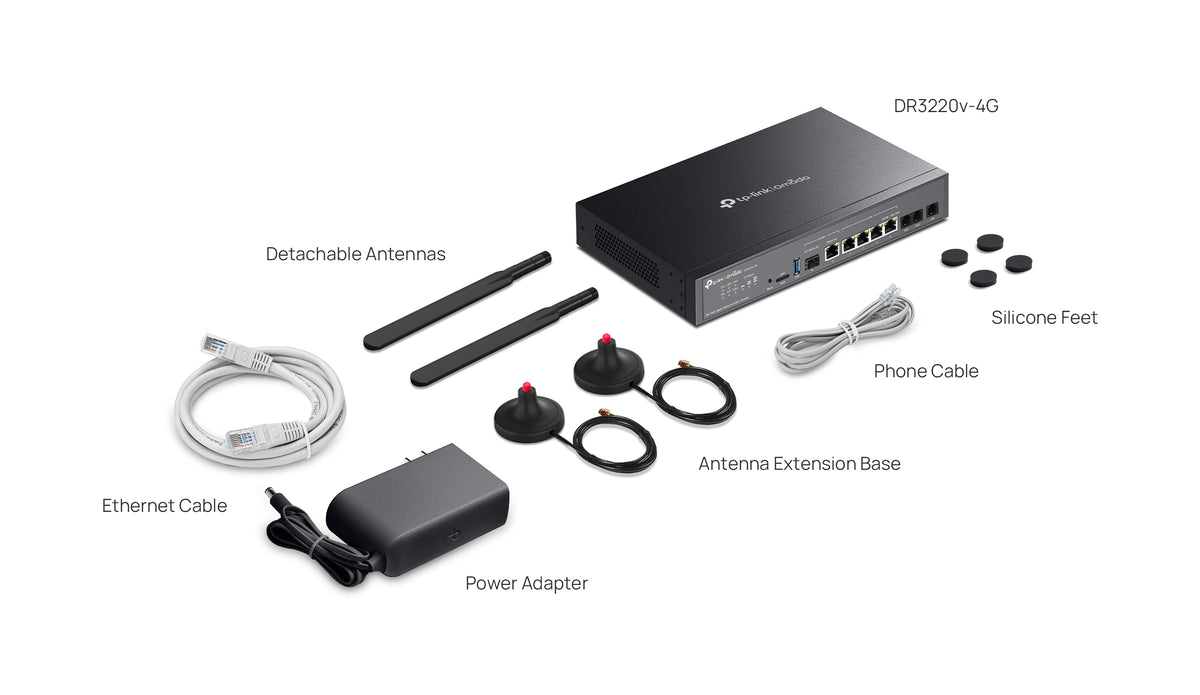

In the box

• TP-Link Omada DR3220v-4G

Specifications

With wired DSL, Ethernet WAN and 4G options in one rack-mountable gateway, the DR3220v-4G gives a small business practical flexibility for managing its internet connections.
