TP-Link Omada EAP235-Wall | Wall plate access point | AC1200 dual-band Wi-Fi

The TP-Link Omada EAP235-Wall is a dual-band wall plate access point for hotels, offices, hospitals and other spaces where each room needs its own wireless coverage. It suits network installers and IT teams who want to provide Wi-Fi while keeping a wired connection available for room devices.

Key features

  • Fast Dual-Band Wi-Fi Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
  • Four Gigabit Ports 4 Gigabit Ethernet ports (1x uplink + 3x downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
  • Integrated into Omada SDN Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management Cloud access and Omada app for ultra convenience and easy management.
  • Elegant Appearance Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
  • Easy Installation and PoE Support Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

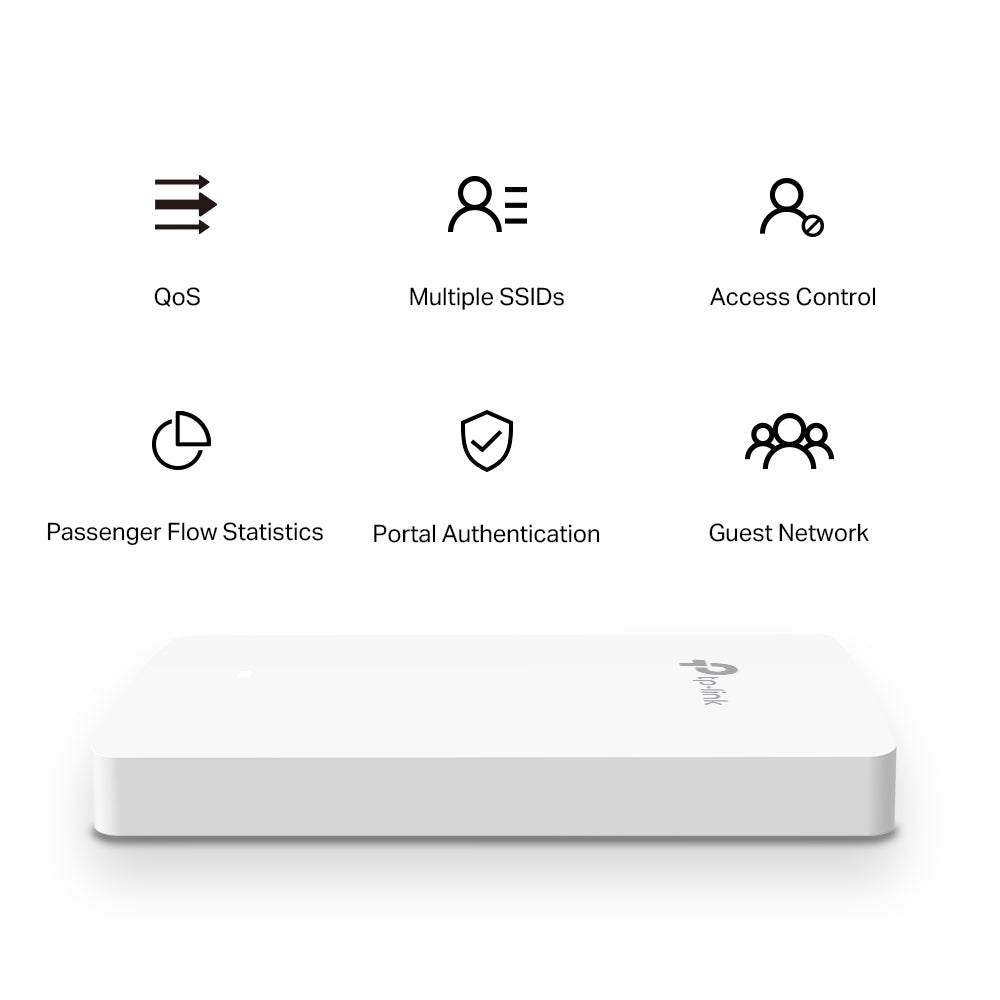

  • Secure Guest Network Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

Specification

Specification Detail
Dedicated Complete, Private Wi-Fi Network in Each Room An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

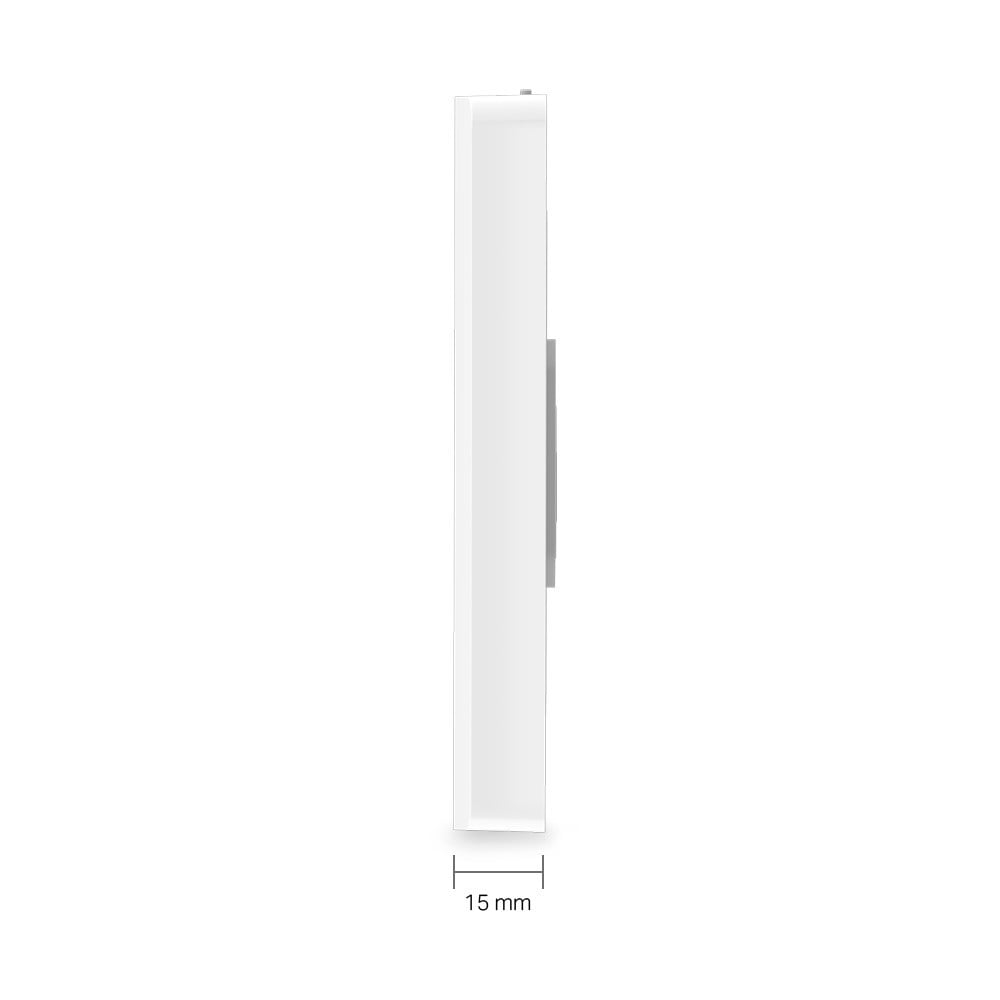

Absolute Thinnest, Inconspicuous Design The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

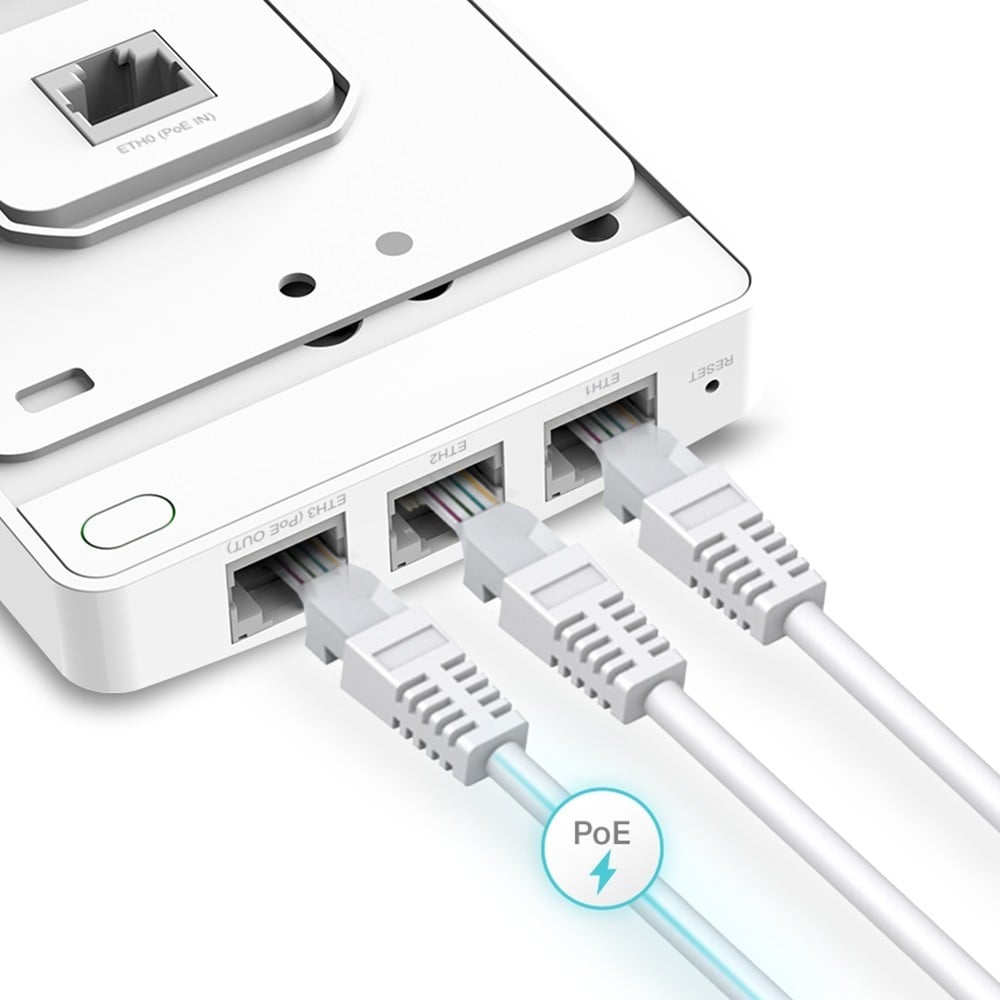

Full Gigabit Ports to Bridge Network Equipped with four Gigabit data ports (1 x uplink + 3 x downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Omada SDN—Smarter Cloud Solution for Business Networking Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle-Free Centralized Cloud Management 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Interface Uplink: 1x 10/100/1000 Mbps Ethernet Port
Downlink: 3x 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts /24.4 watts (PoE Out Included)
Dimensions ( W x D x H ) 143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in)
Dimensions 143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2x 4 dBi
• 5 GHz: 2x 4 dBi
Mounting Wall Plate Mounting
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Wireless Functions 16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Band Steering
Beamforming
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
CE =20 dBm (2.4 GHz, EIRP)
=23 dBm (5 GHz, EIRP)
FCC =21 dBm (2.4 GHz)
=21 dBm (5 GHz)
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Certification CE, FCC, RoHS
Package Contents Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
Installation Guide
Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0–40 C (32–104 F)
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
