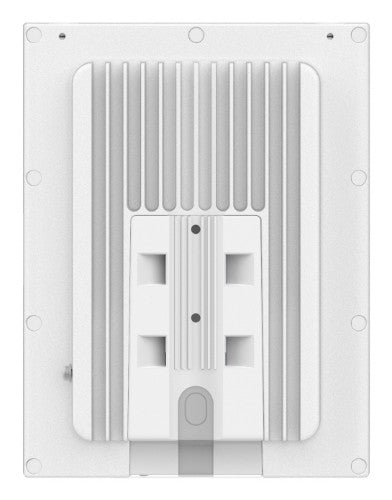

TP-Link Omada EAP725-Outdoor 5000 Mbit/s White Power over Ethernet (PoE)

Wi-Fi 7, 1x RJ-45, IP66, OFDMA, QoS, MLO, PoE+

Key Features

• Directional and Omnidirectional Antennas: Freely switch between modes via software for optimal signal control
• Plug & Play Auto-Sensing Antennas: Automatically detects antenna changes and switches between internal and external antennas as needed
• 4-Stream Dual-Band Wi-Fi 7: Up to 5.0 Gbps
• 1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable
• Outdoor-Ready Durability: Features an IP66-rated weatherproof enclosure and 6kV lightning protection
• Quick and Easy Setup: Features wall/pole mounting with Omada SDN for one-click setup
• Advanced Features: Centralized management, mesh, and seamless roaming

Description

Versatile Antennas Deployment
Adapt to any environment effortlessly by selecting the antenna type that suits your needs. Whether you require long-distance connectivity or need to cover multiple endpoints, easily switch between external omni, internal directional, or custom antenna configurations with just a few clicks in the software.

Auto-Sensing Plug & Play—No Expertise Needed
Automatically detects the attachment and removal of antennas (included) in auto mode and seamlessly switches between the internal and external antennas with zero configuration.

Outdoor-Ready IP66 Weatherproof Design
The EAP725-Outdoor features an IP66 weatherproof rating, ensuring reliable protection against heavy rain, dust, and harsh weather conditions.

Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP725-Outdoor through automatic device identification and one‑click adoption.

Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Maximum data transfer rate	5000 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Syslog	Yes
Reset button	Yes
Web-based management	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Maximum data transfer rate	5000 Mbit/s
Band steering	Yes
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
Management features
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Syslog	Yes
Web-based management	Yes
Cloud-managed	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	10/100/1000/2500Base-T
Maximum data transfer rate	5000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4324 Mbit/s
Virtual LAN features	Management VLAN
Bluetooth Low Energy (BLE)	Yes
BeamForming	Yes
Security
Number of SSID supported	16
Security algorithms	OWE, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Schedule access	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100/1000/2500Base-T
Power
Power consumption (max)	18.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Design
International Protection (IP) code	IP66
Placement	Pole, Wall
Product colour	White
Reset button	Yes
LED indicators	Status
Antenna
Antenna type	Internal & external
Antennas quantity	8
Antenna gain level (max)	13.2 dBi
Technical details
Reset button	Yes
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI
Certificates
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI
Indication
LED indicators	Status
Weight & dimensions
Width	208 mm
Depth	160 mm
Weight	1.33 kg
Height	55 mm
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Quantity per pack	1 pc(s)
