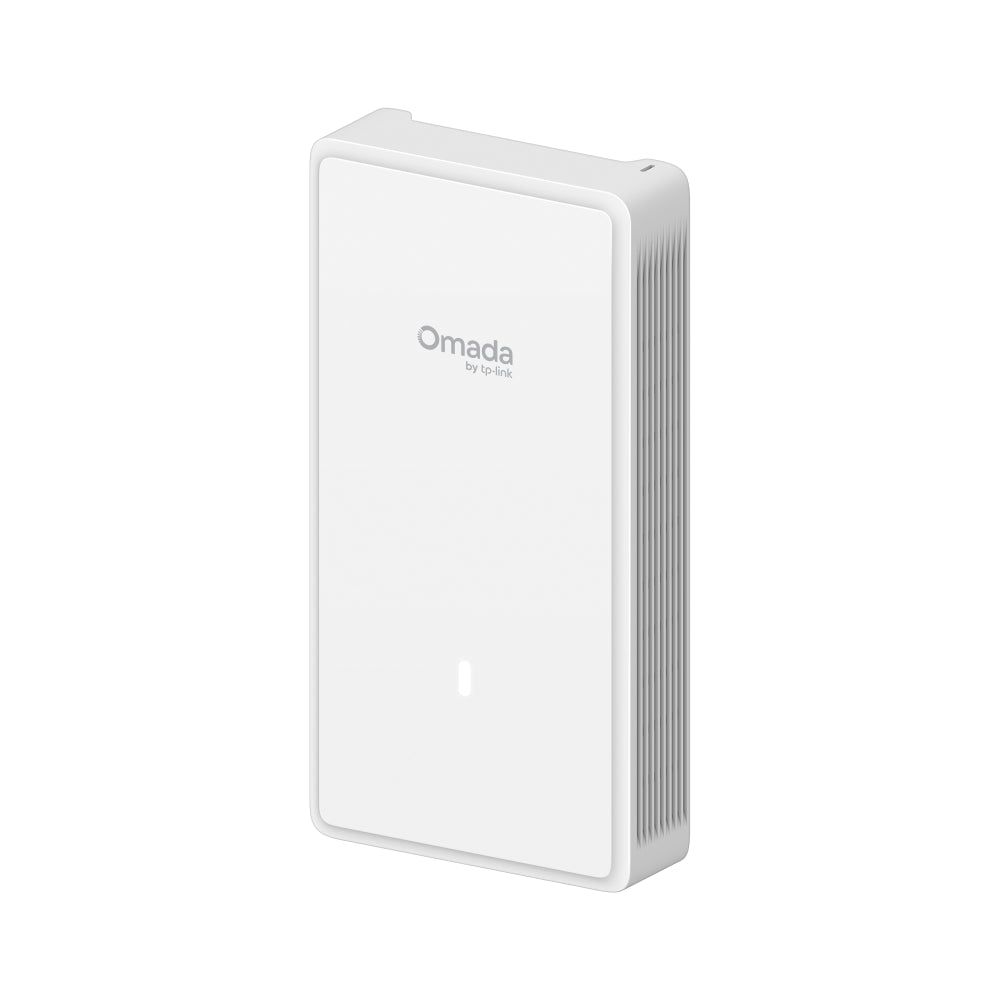

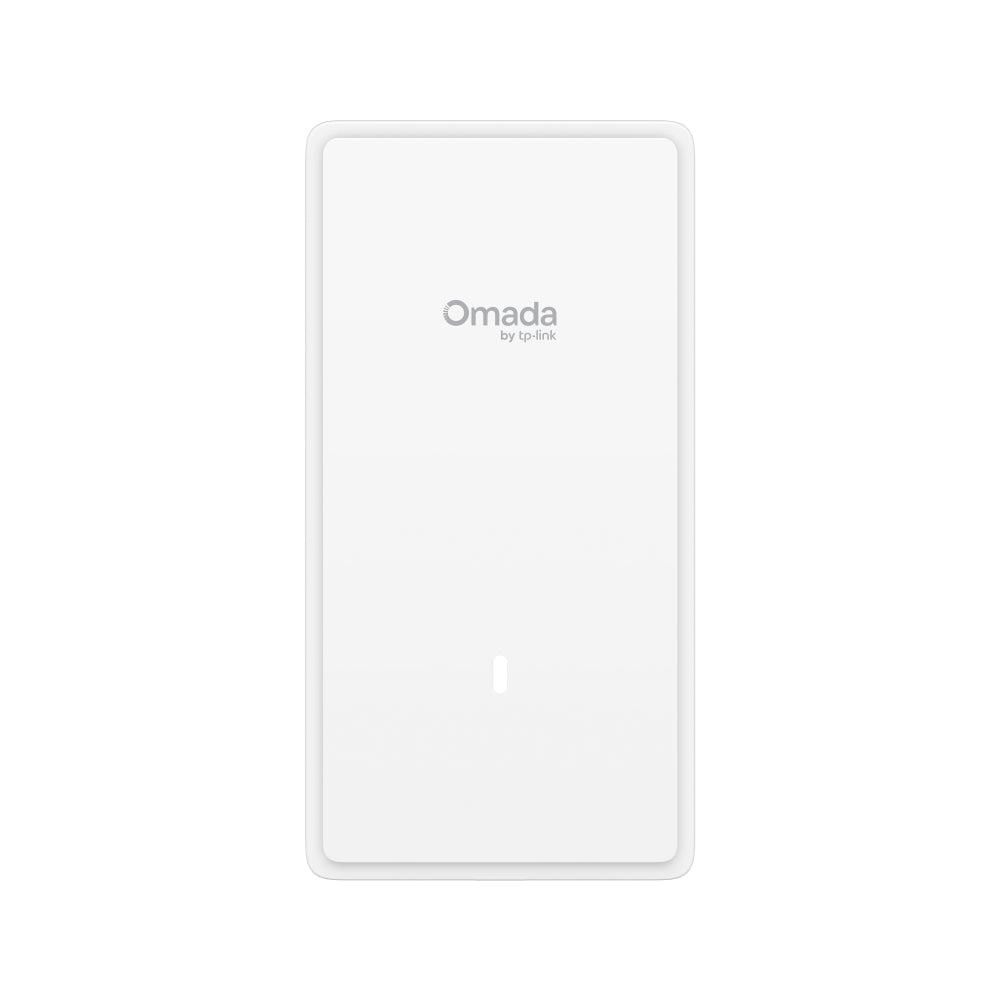

The TP-Link Omada EAP725-Wall is a wall plate Wi-Fi 7 access point for offices, hotels and other spaces that need a dedicated wireless network in each room. Its compact wall-mounted design suits installations where a discreet access point and wired connections are both useful.
BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).

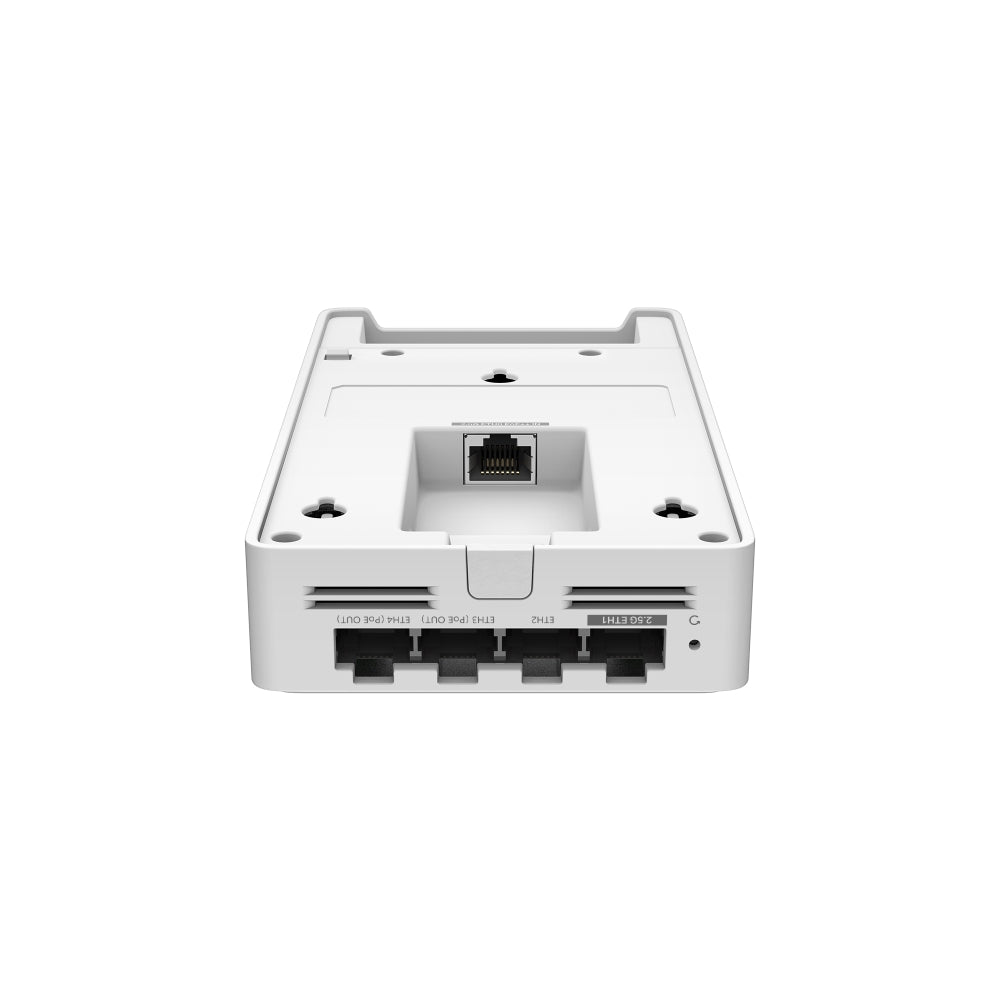

1 x 2.5G PoE input port + 1x 2.5G pass-through port + 2x Gigabit RJ45 downlink ports.
160 MHz bandwidth enables many more simultaneous transmissions.
Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Specification
| Specification | Detail |
|---|---|
| Interface | Uplink: 1 x 2.5G Ethernet Port Downlink: 1 x 2.5G Ethernet Port + 2x Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | 802.3bt: 17W (PoE Out support 15.4W) 802.3at: 17W (PoE Out support 7W) |
| Dimensions ( W x D x H ) | 143 x 86 x 40 mm (5.6 x 3.4 x 1.6 in) |
| Antenna | 4x Internal Antennas 2.4 GHz: 2 x 4 dBi 5 GHz: 2 x 5 dBi |

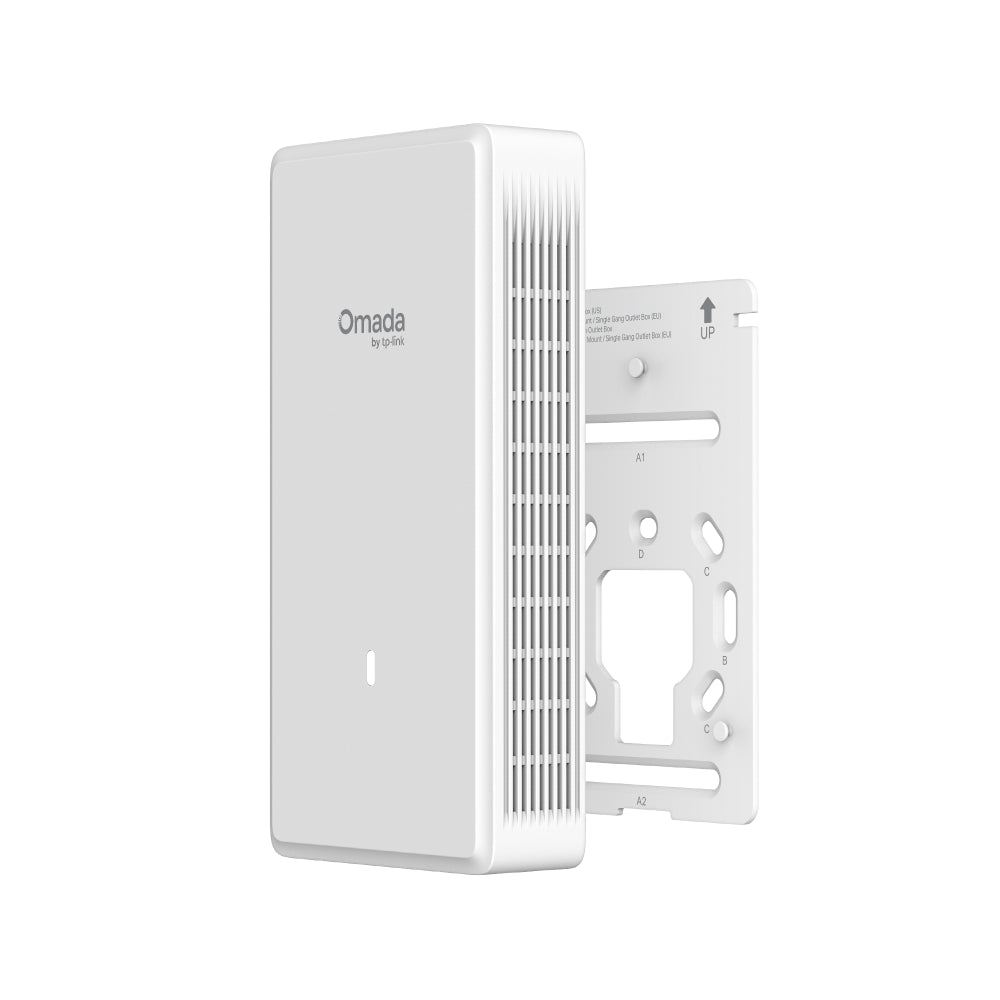

| Mounting | Wall Mounting (Screws included) |
| Coverage | 50 M squared(600 ft²)** |
| Concurrent Clients | 250 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 2882 Mbps 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | 16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming Beamforming Rate Limit (Based on SSID/Client) Load Balance Airtime Fairness Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power<20 dBm (2.4GHz, EIRP) <23 dBm (5GHz, band 1 & band 2, EIRP) <25 dBm (5GHz, band 3, EIRP) |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | CertificationCE, RoHS |
| Package Content | EAP725-Wall Installation Guide Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | Operating Temperature: 0–40 c (32–104 f) Storage Temperature: -40–70 c (-40–158 f) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
-
