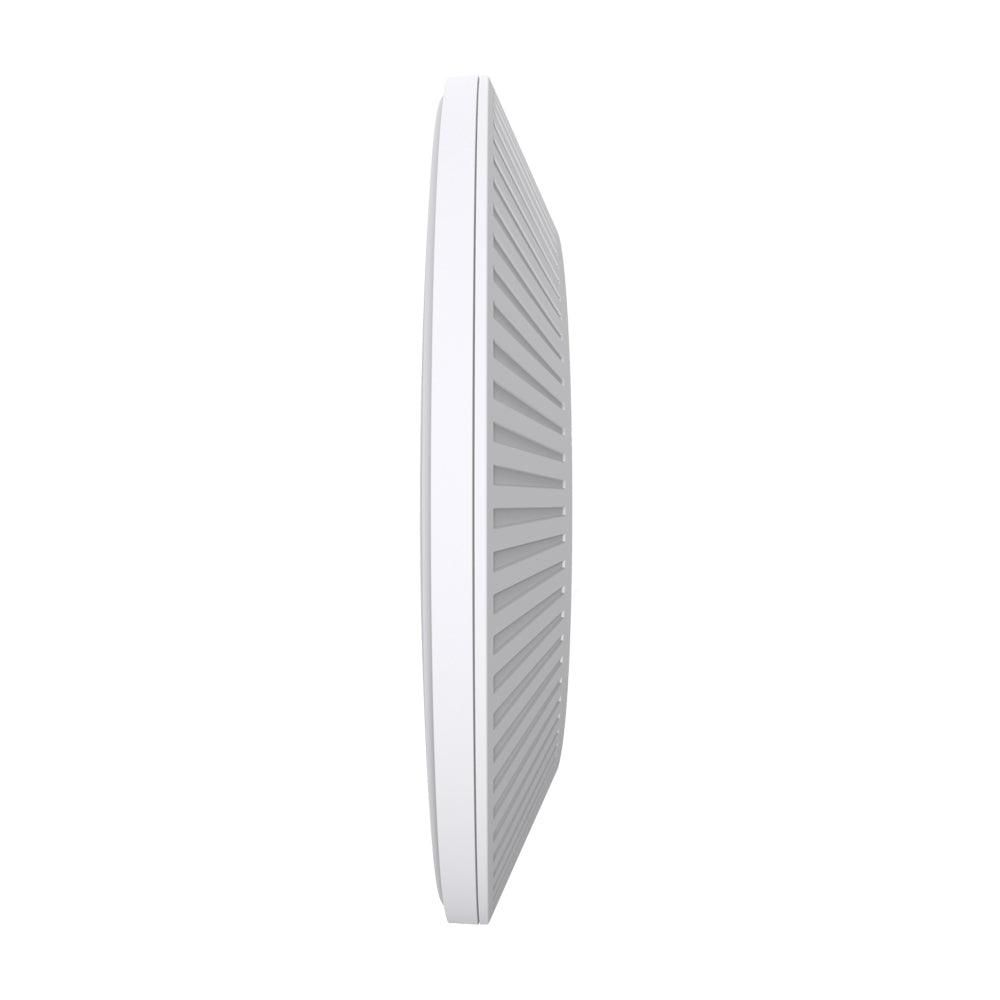

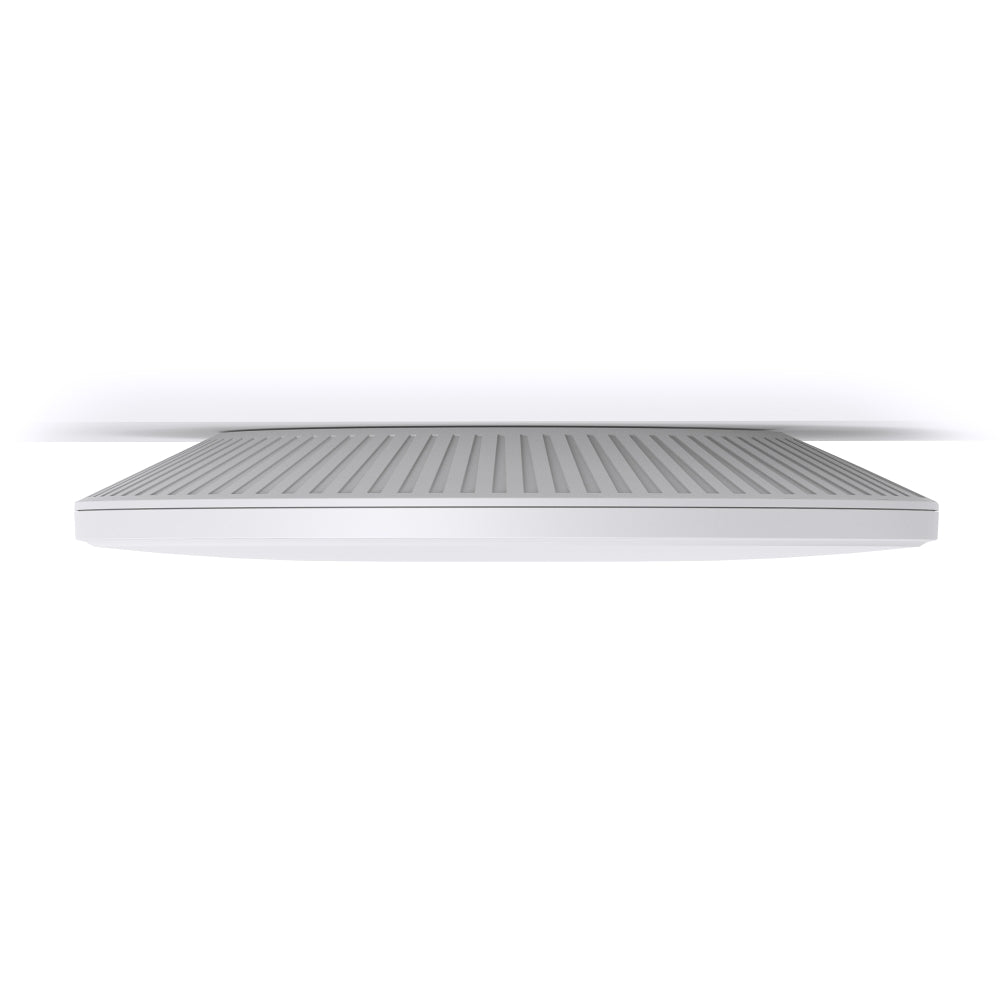

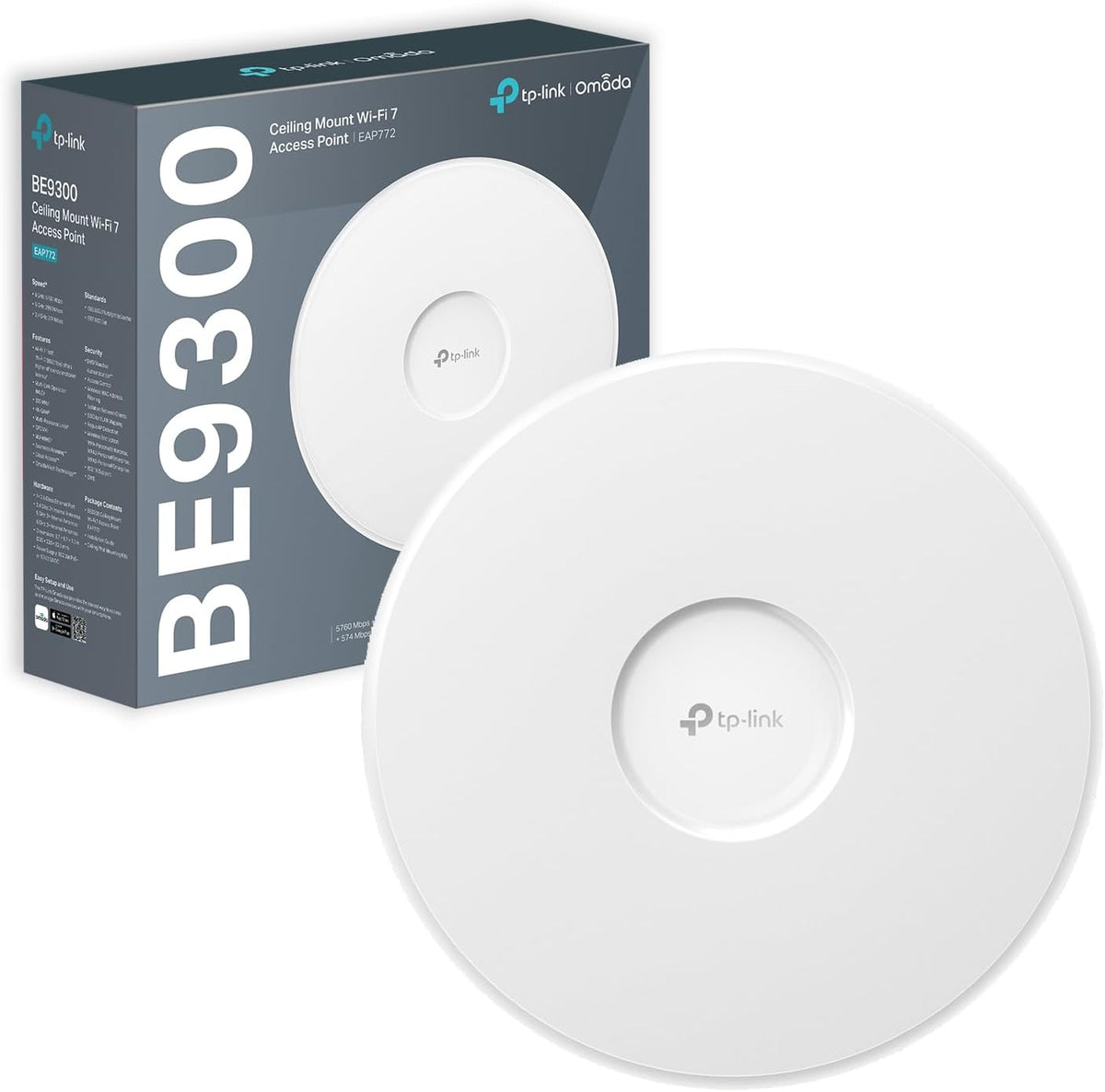

The TP-Link Omada EAP772 is a ceiling or wall mounted Wi-Fi 7 access point for businesses that need fast wireless service across offices, hospitality spaces or other busy environments. Its tri-band design and Omada management options suit networks with multiple access points and a mix of compatible client devices.
Features

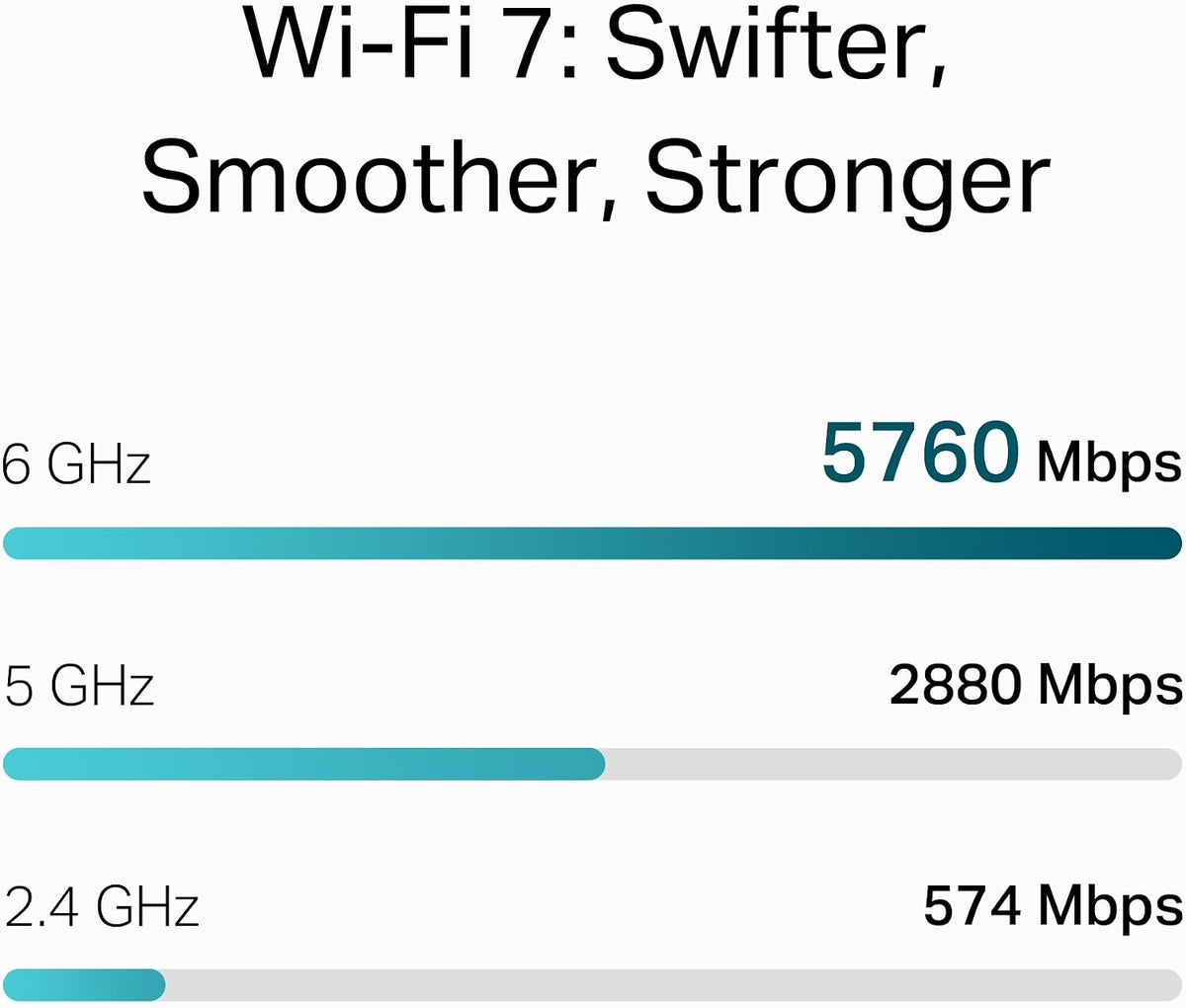

- BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
- 1x 2.5G Port: Unlock the full potential of Wi-Fi 7.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
- Advanced Functions: Supports centralized management, mesh, and AI roaming
Specification
| Specification | Detail |
|---|---|
| Interface | 1x 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Max. Power Consumption | 24.05 W (For PoE); 20.92 W (For DC) |

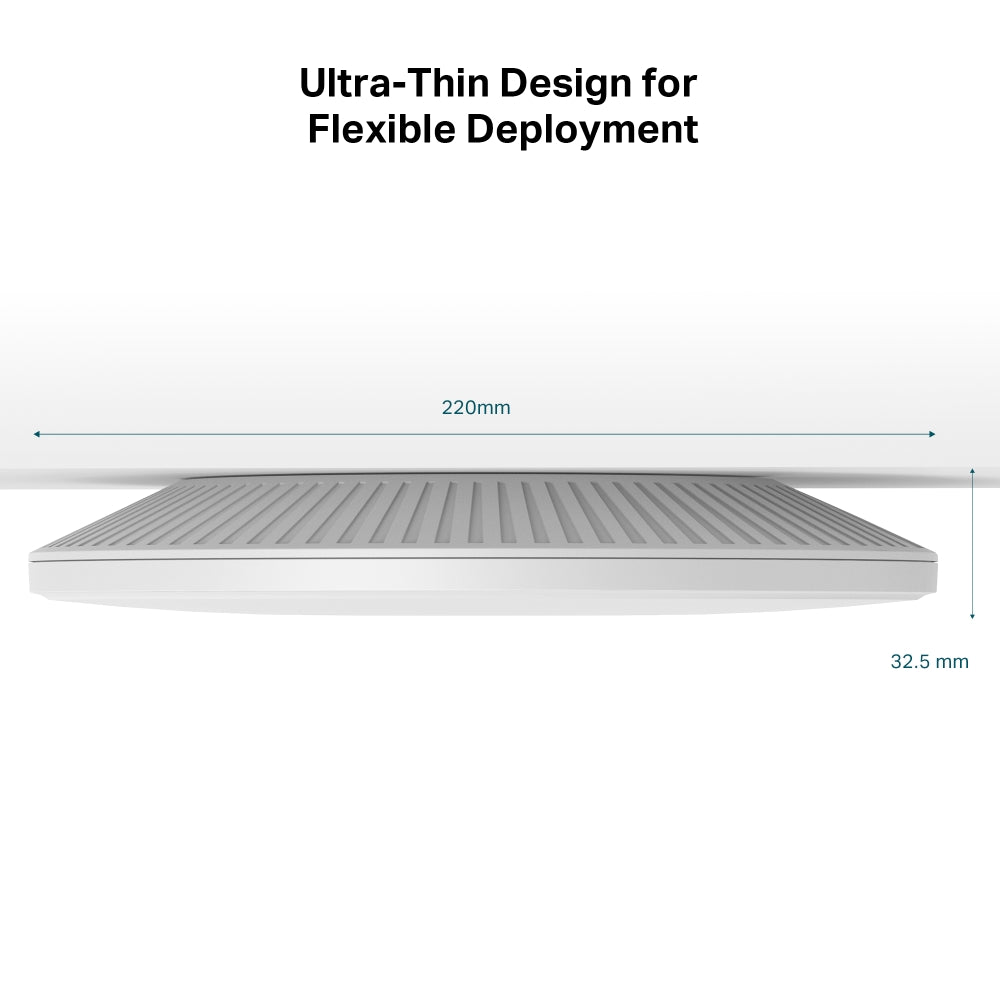

| Dimensions ( W x D x H ) | 8.7 x 8.7 x 1.3 in (220 x 220 x 32.5 mm) |
| Antenna | 2.4 GHz: 2 x 3.0 dBi 5 GHz: 2 x 3.0 dBi 6 GHz: 2 x 3.0 dBi |
| Bluetooth | 1 x 4.0 dBi, Bluetooth 5.2 *Firmware update may be required. |
| Mounting | Ceiling / Wall Mounting (Kits Included) |
| Coverage | 140m squared(1500 ft²) |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz) |
| Wireless Functions | MLO 4K-QAM MU-MIMO HE320 Mesh BSS Coloring OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDS:24(8 on each band) Wireless Schedule Reboot Schedule QoS(WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication |
| Wireless Security | Captive Portal Authentication Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | <20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) < 23dBm (6 GHz, EIRP) |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | CertificationCE, FCC, RoHS, IC |
| Package Content | EAP773 Installation Guide Ceiling/Wall Mounting Kits Note: Power Adapter is NOT included. |
| Environment | Operating Temperature: 0 °C–40 °C (32 °F–104 °F) Storage Temperature: -40 °C–70 °C (-40 °F–158 °F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
-
