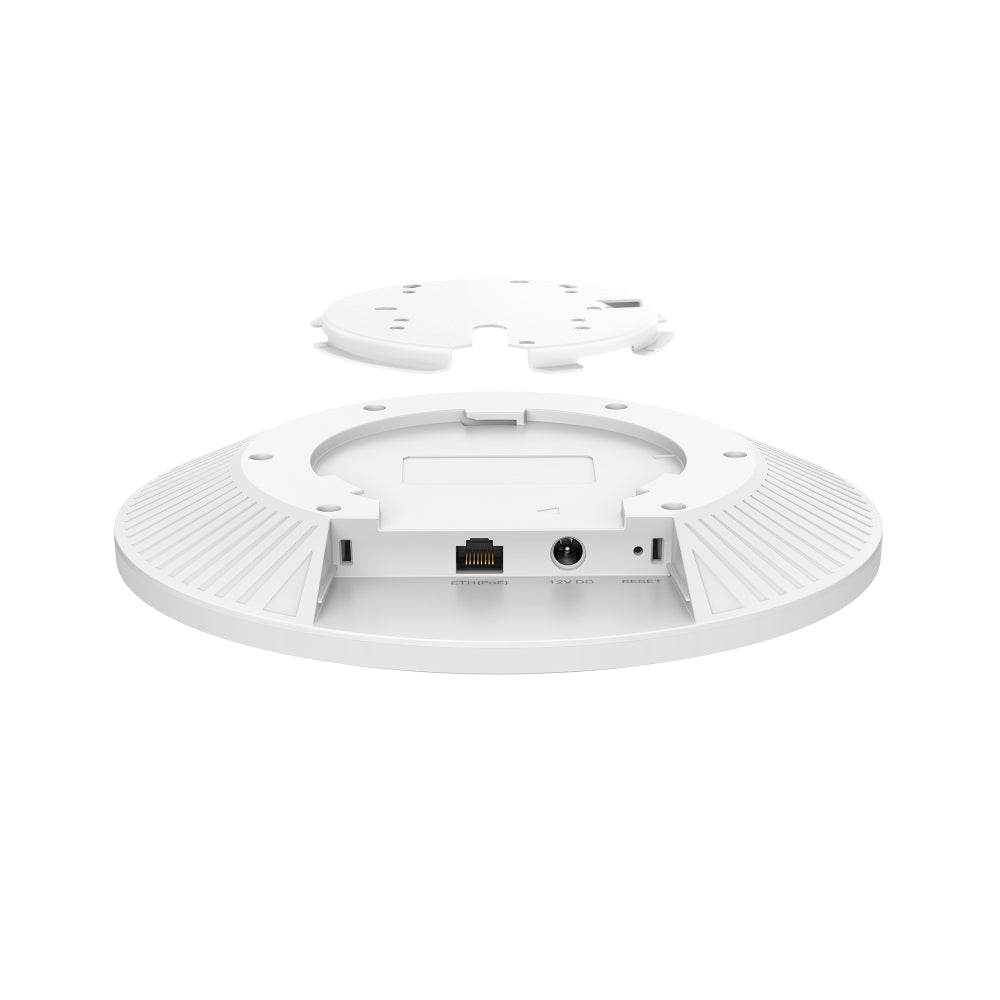

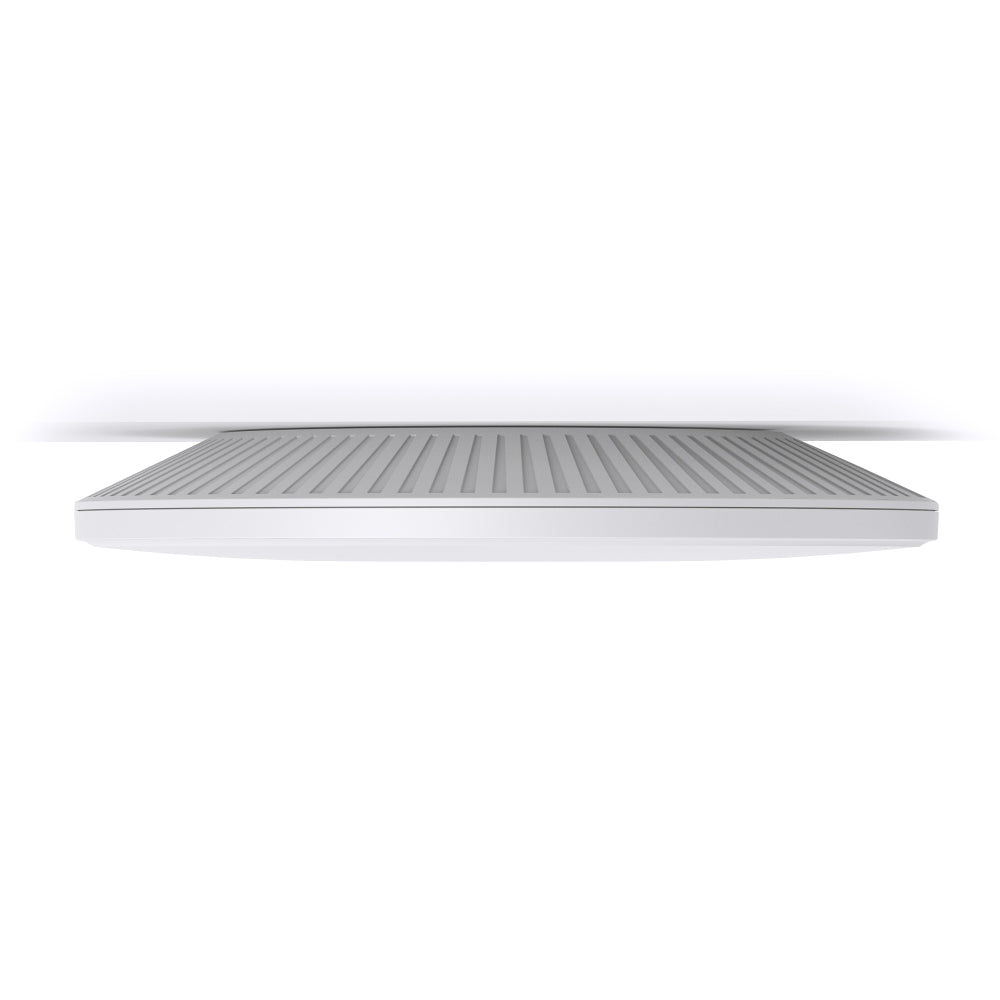

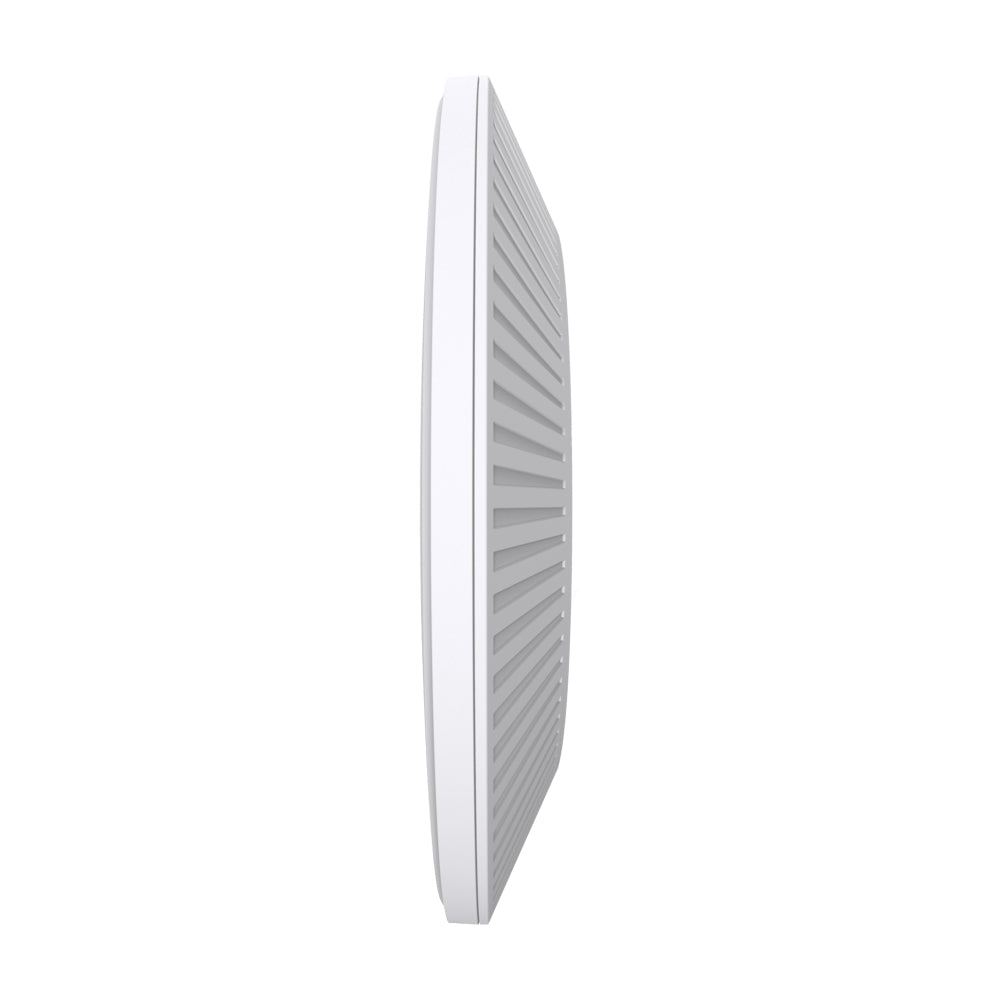

The TP-Link Omada EAP773 is a tri-band Wi-Fi 7 access point for businesses upgrading wireless coverage in offices, schools, hotels or retail spaces. Its ceiling or wall mounting options suit fixed installations, while Omada management tools help network teams oversee access points across a site.

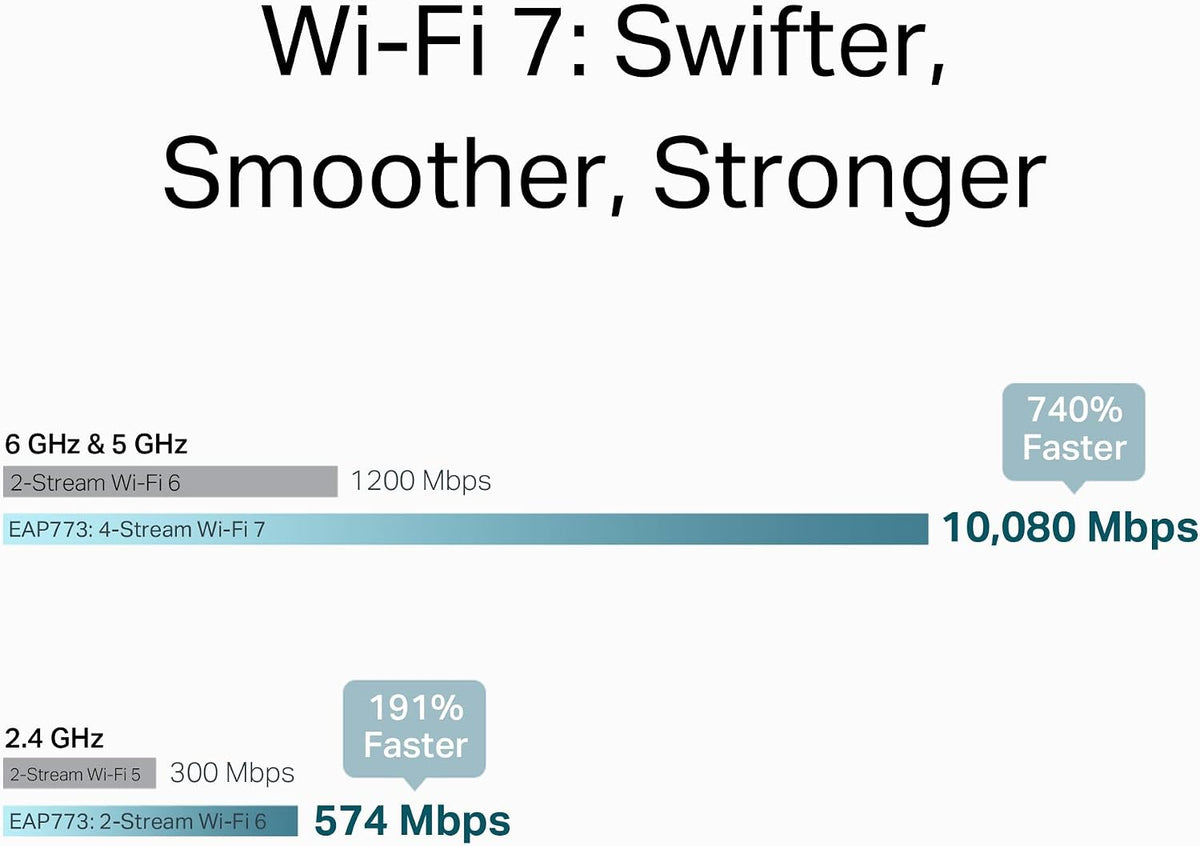

Three wireless bands provide combined headline rates of up to 9,214 Mbps: 5,760 Mbps on 6 GHz, 2,880 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Wi-Fi 7 features including 320 MHz channels on 6 GHz, Multi-Link Operation and Multi-RUs are designed to increase capacity and reduce latency when connected clients support those features. A 10G Ethernet port supports high-speed wired backhaul, and the access point can be managed locally or through Omada’s controller platform.

Key features

• Tri-band Wi-Fi 7 supports connections across 2.4 GHz, 5 GHz and 6 GHz.
• 320 MHz bandwidth on 6 GHz allows wider channels for compatible clients.
• Multi-Link Operation and Multi-RUs help improve network performance and reliability.
• A 10G Ethernet port provides a high-capacity wired connection.
• Automatic channel selection and power adjustment help reduce interference between nearby access points.
• Omada Mesh and centralised management support coordinated network deployment.
• Guest access tools include captive portal authentication and support for up to 24 SSIDs.

Compatibility

Wi-Fi 7 and its related features require compatible client devices. For centralised management, mesh, AI roaming, captive portal and cloud access, an Omada SDN controller is required. The EAP773 supports 802.3bt PoE and TP-Link specifies 802.3at PoE or 12V/2.5A DC power; the power adapter is not included. Good to know: check that your PoE equipment supplies a supported standard and that your clients support the Wi-Fi 7 features you intend to use.

In the box

• TP-Link Omada EAP773
• Installation Guide
• Ceiling/Wall Mounting Kits

Specifications

For a business network that needs modern tri-band wireless, fast wired connectivity and centralised deployment options, the EAP773 brings these capabilities together in a compact ceiling-mount design.
