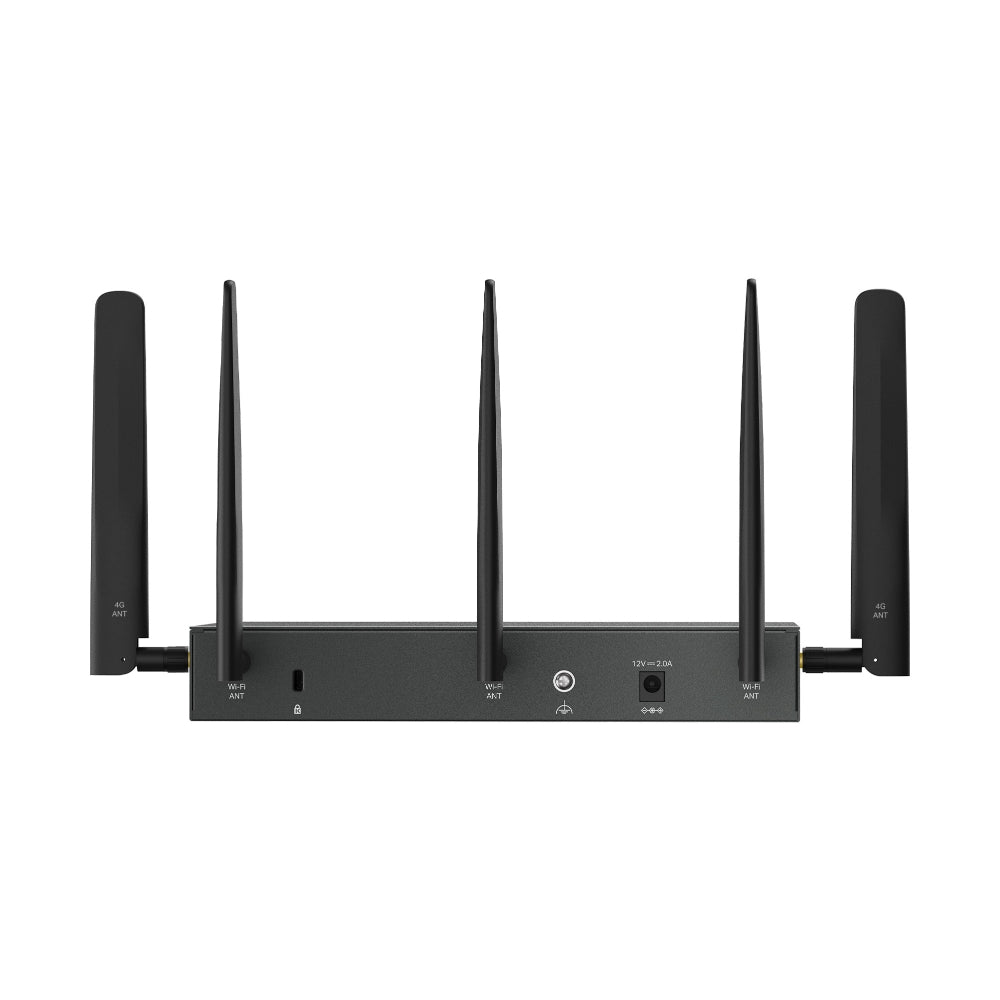

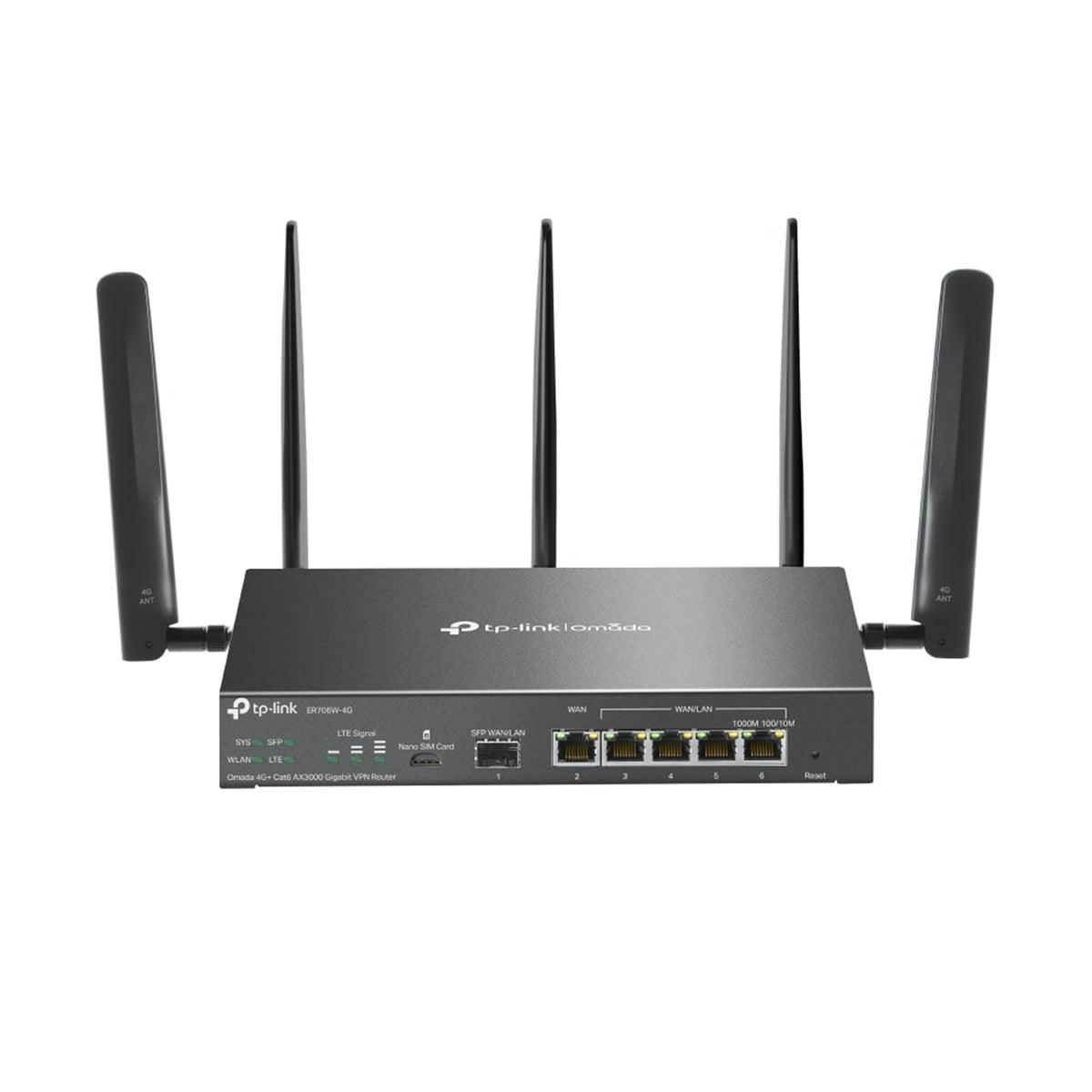

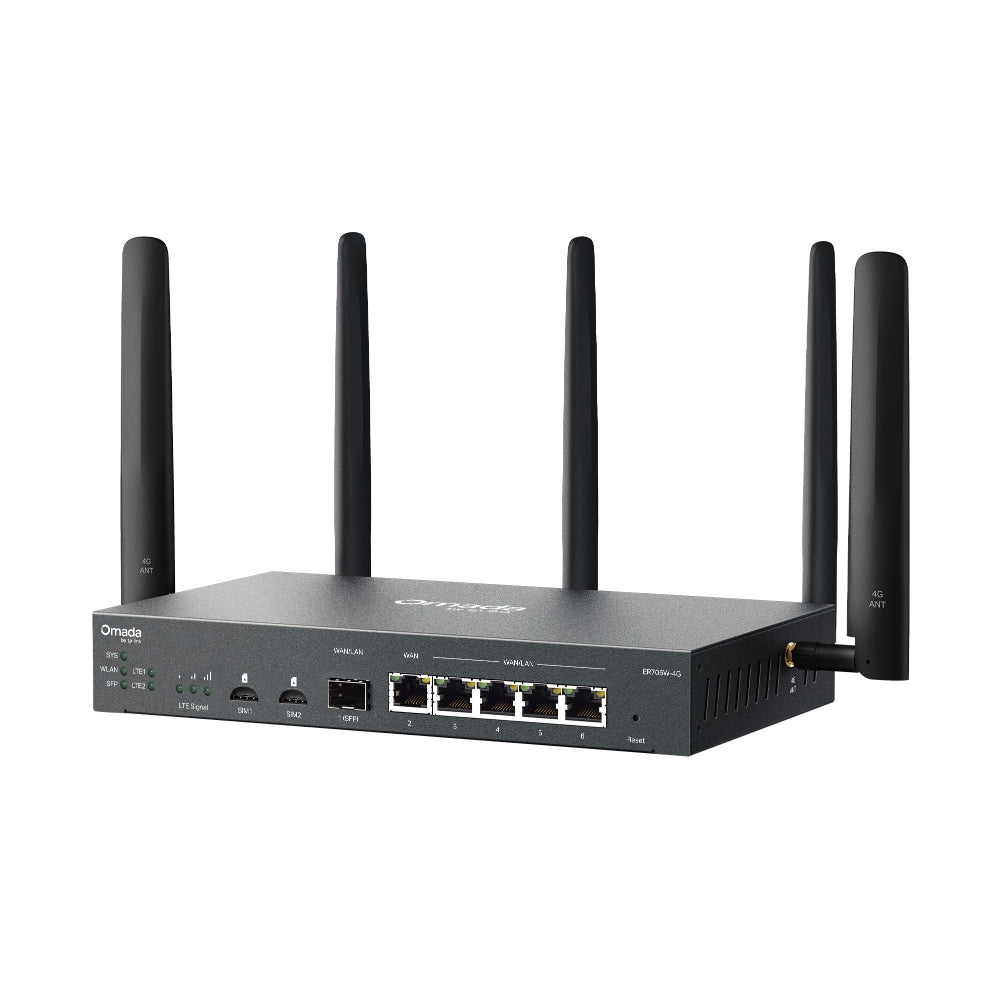

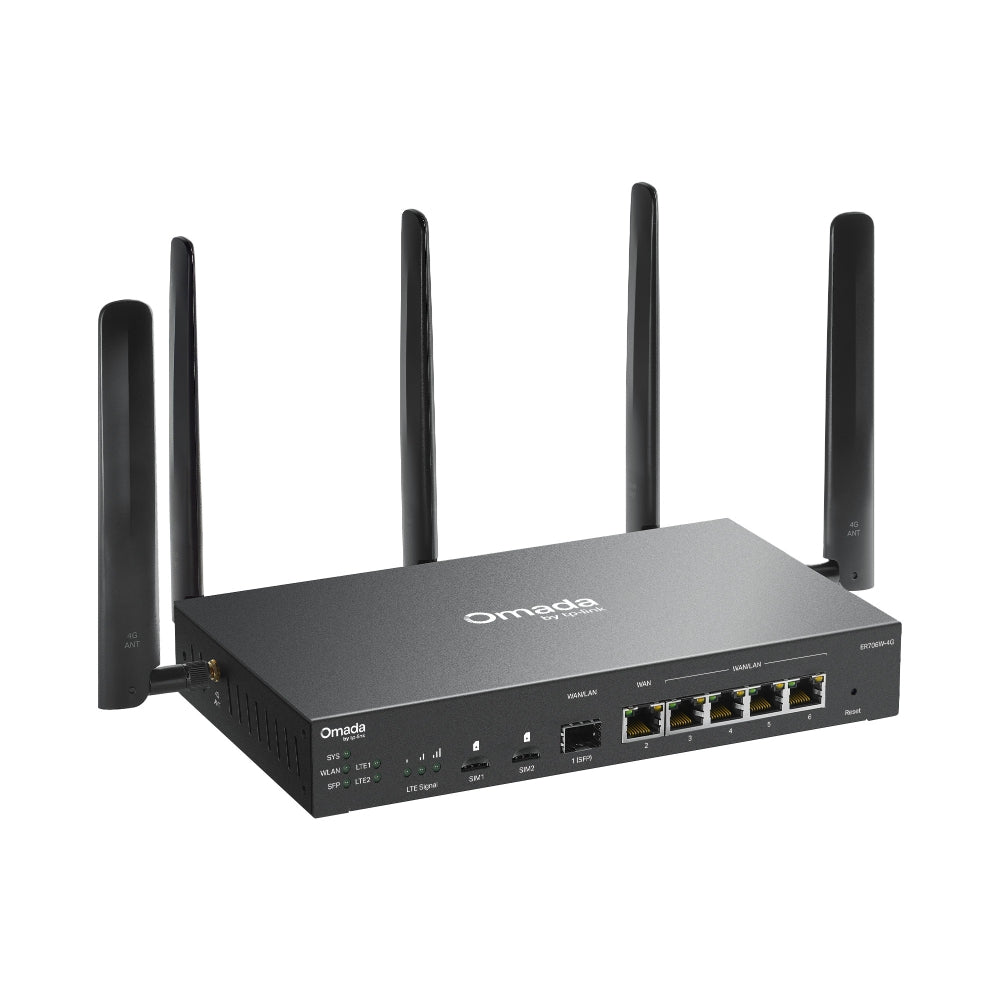

The TP-Link Omada ER706W-4G is a business VPN router for small offices, branch sites and home offices that need wireless networking with a 4G connection option. Insert a Nano SIM card to connect through a compatible mobile network, or use its Ethernet WAN connection.
features
- Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps.
- AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
- 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
- Centralized Management: Cloud access and the Omada app for easy management.
- Omada Mesh: Seamlessly connects to EAPs that support mesh technology.
- High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.
Management Features
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
Specification
| Specification | Detail |
|---|---|
| Network Type | LTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) |
| Carrier Aggregation | B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 |
| SIM Type | 1x Nano SIM Card |
| Frequency | Downlink: 300 Mbps Uplink: 50 Mbps |
| DPI | Application control via DPI / Updated app library |
| IDS/IPS | Signature-based IPS/IDS threat detection |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group Filtering URL Filtering Web Security |
| ARP Inspection | Sending GARP Packets ARP Scanning IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Interface | 1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN Port 4 Gigabit LAN/WAN Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps (HE160) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are notincluded) |
| Antenna | Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas LTE: Two 4.0dBi omnidirectional detachable antennas |

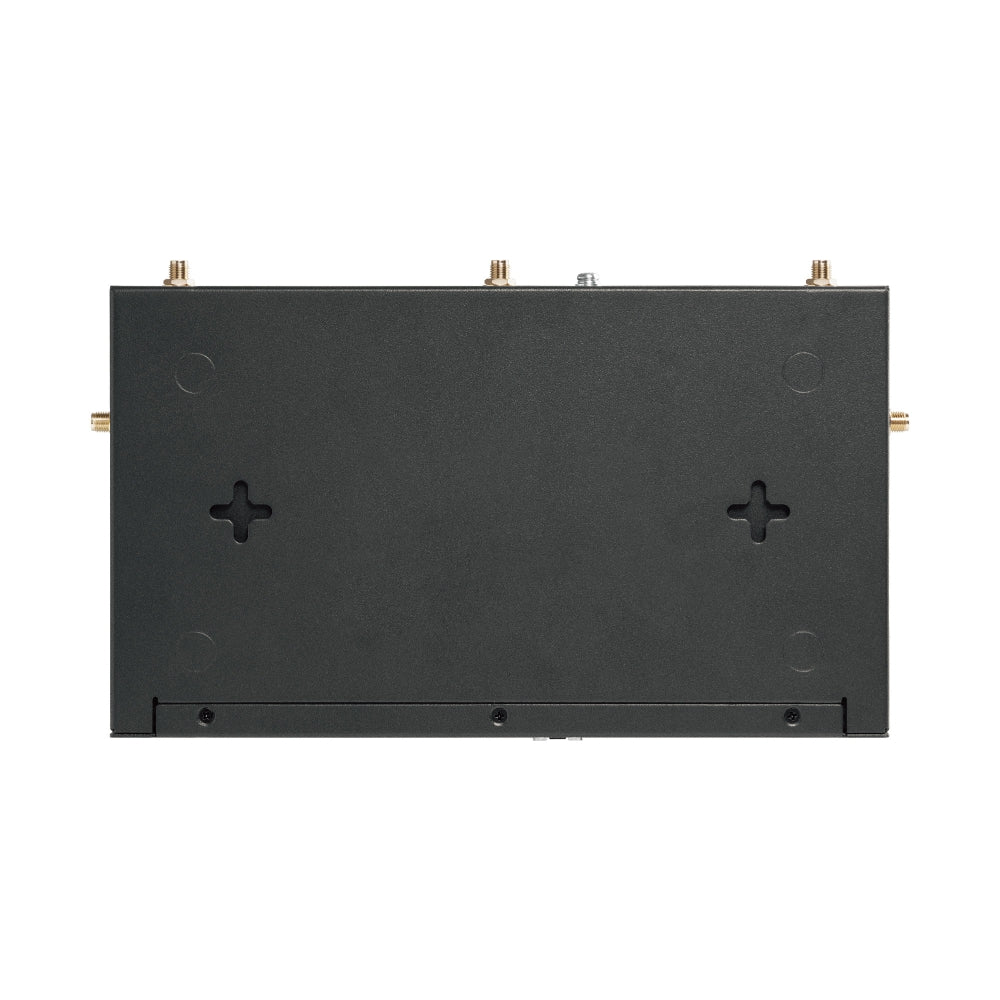

| Mounting | Desktop/Wall-Mounting |
| Max Power Consumption | EU: 17.3W |
| IPS Throughput | TCP: 229 Mbps UDP: 188 Mbps |
| DPI Throughput | TCP: 933 Mbps UDP: 927 Mbps |
| GRE | Unencrypted: 545.3Mbps Encrypted: 282.6Mbps |
| WireGuard VPN | 387.7Mbps |
| Concurrent Session | 150,000 |
| New Sessions | /Second5,100 |
| NAY | NAT (Static IP)947.1Mbps / 940.1Mbps NAT(DHCP)949.2Mbps / 941.1Mbps NAT(PPPoE)942.6Mbps / 941.1Mbps NAT (L2TP)875.4Mbps / 892.0Mbps NAT (PPTP)881.2Mbps / 895.8Mbps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 652.2Mbps ESP-SHA256-AES256: 654.4Mbps ESP-SHA384-AES256: 646.5Mbps ESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN | 115.5Mbps |
| L2TP VPN Throughput | Unencrypted: 990.0Mbps Encrypted: 475.0Mbps |
| PPTP VPN Throughput | Unencrypted: 1177.9Mbps Encrypted: 177.4Mbps |
| SSL VPN Throughput | 122.5Mbps 66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate81274 pps / 91275 pps |
| Advanced Functions | Seamless Roaming Mesh (with EAP that supports Mesh) OFDMA Beamforming MU-MIMO Rate Limit: Based on SSID/Client Airtime Fairness Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Multiple SSIDs: 16 in total (8 per radio) |
| Guest Network | Support |
| WAN Connection Type | Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing Policy Routing RIP OSPF |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup(Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Session Limit | IP-Based Session Limit |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server PPTP VPN Client (10) 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server L2TP VPN Client (10) 50 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server OpenVPN Client (5) 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode |
| WireGuard VPN | 20 Tunnels |
| Web Authentication | No Authentication Simple Password Hotspot (Local User / Voucher / SMS/ Radius) External Radius Sever External Portal Sever LDAP |
| Omada App | Yes. |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Certification | CE, FCC, RoHS |
| Package Contents | ER706W-4G Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 C to 40 C(32 F to 104 F) Storage Temperature: -40 C to 70 C (-40 F to 158 F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
-
