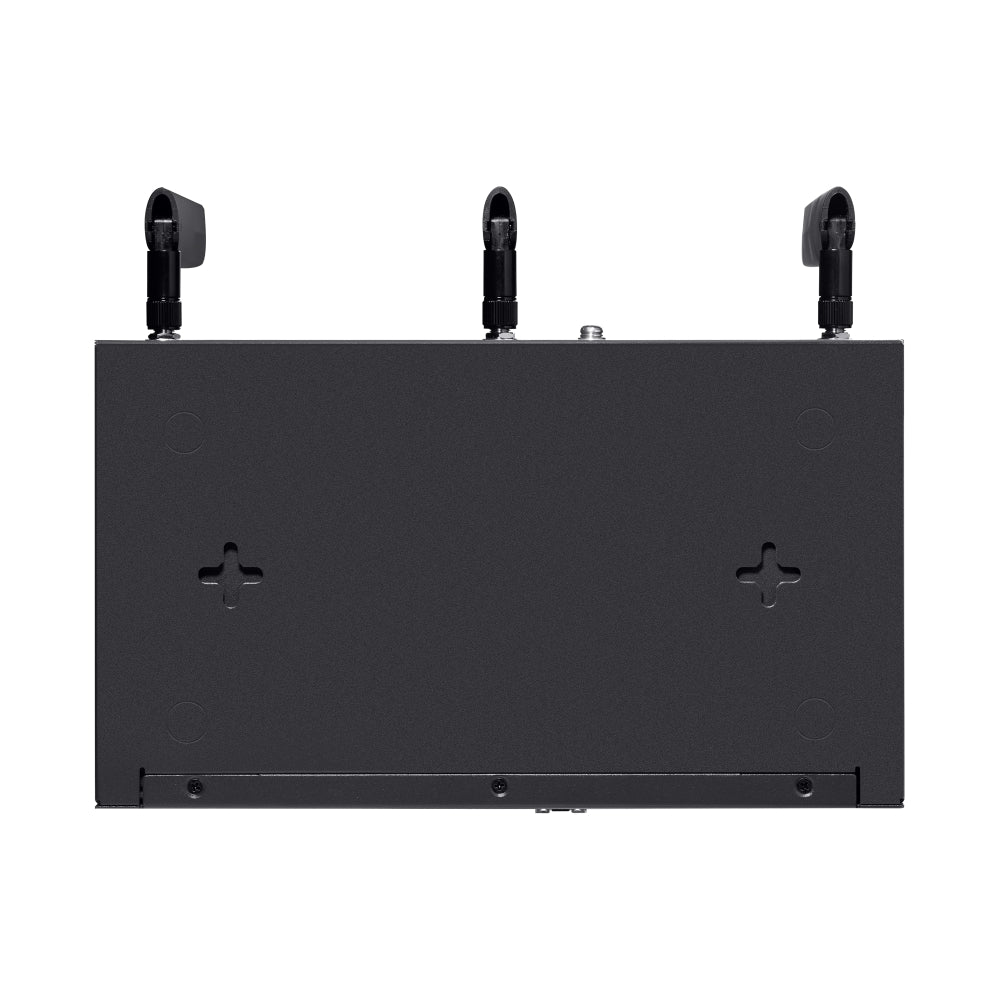

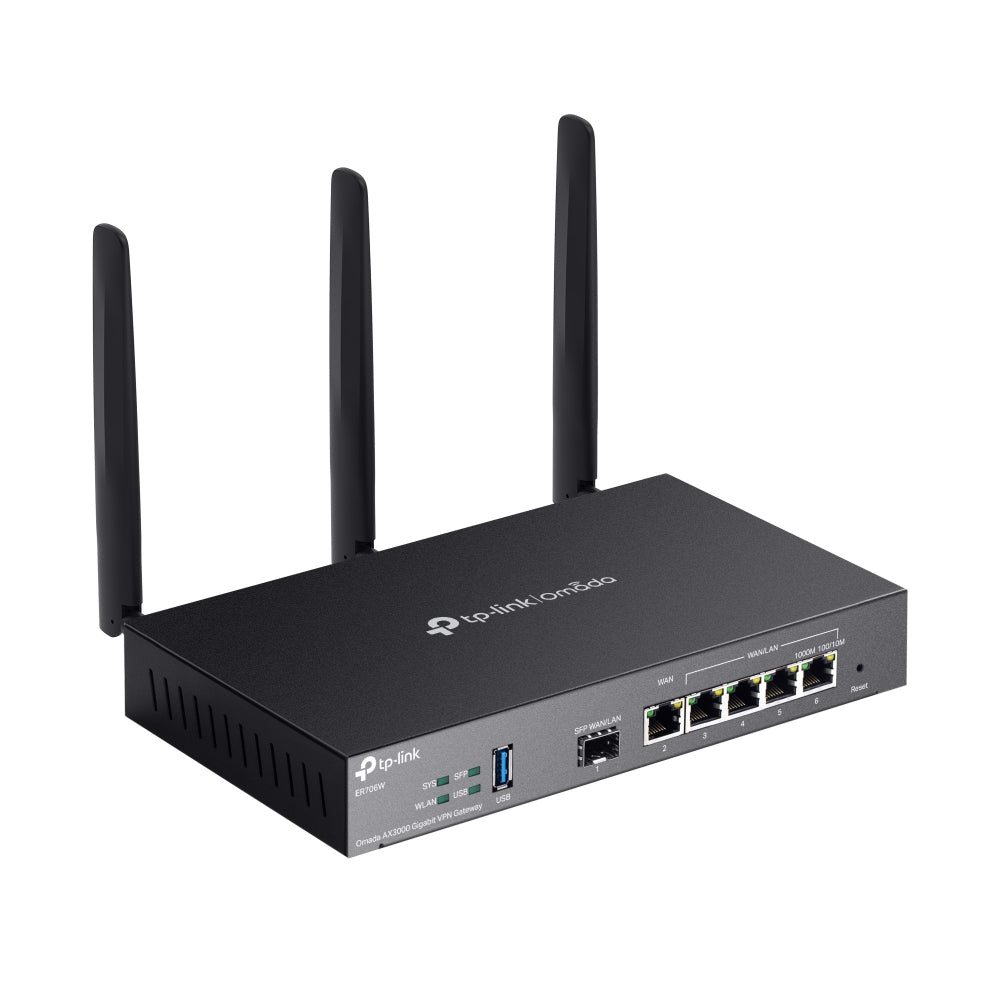

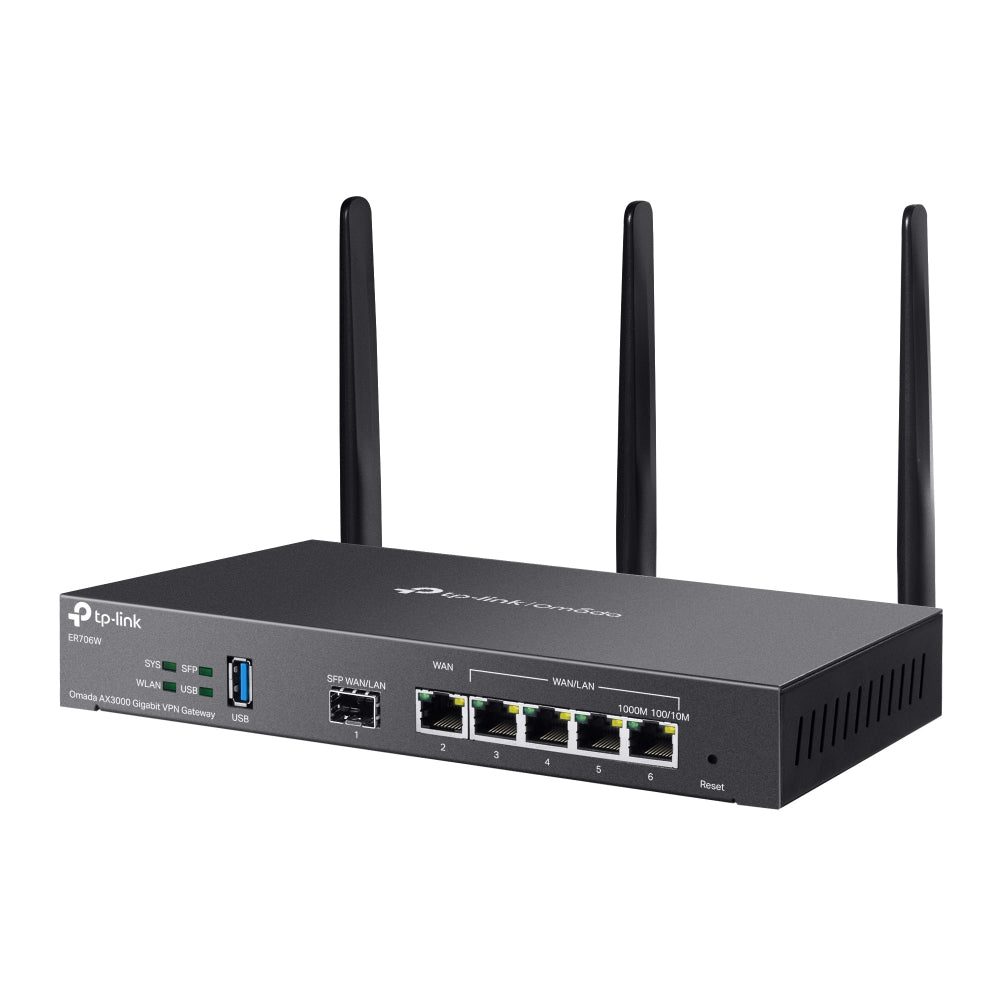

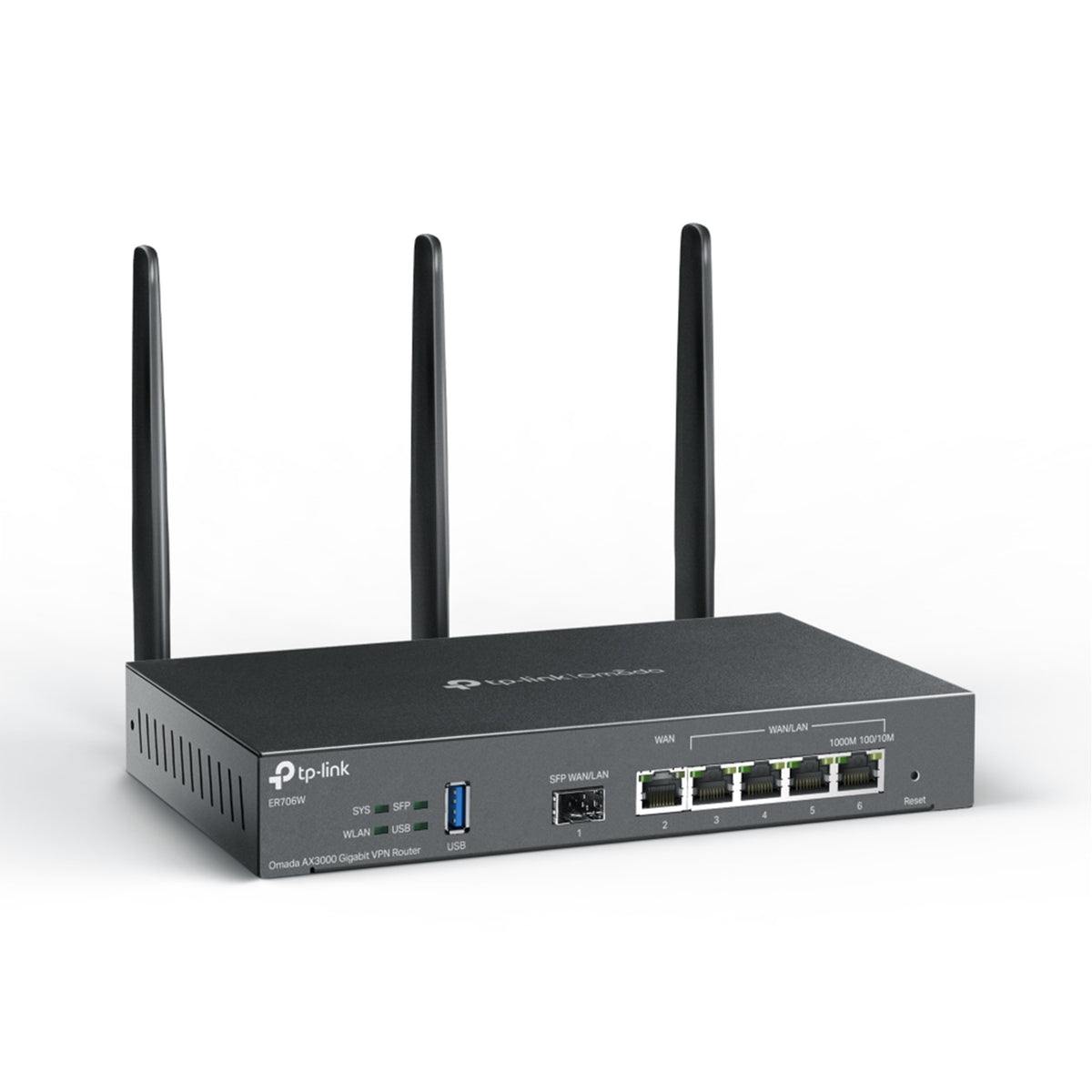

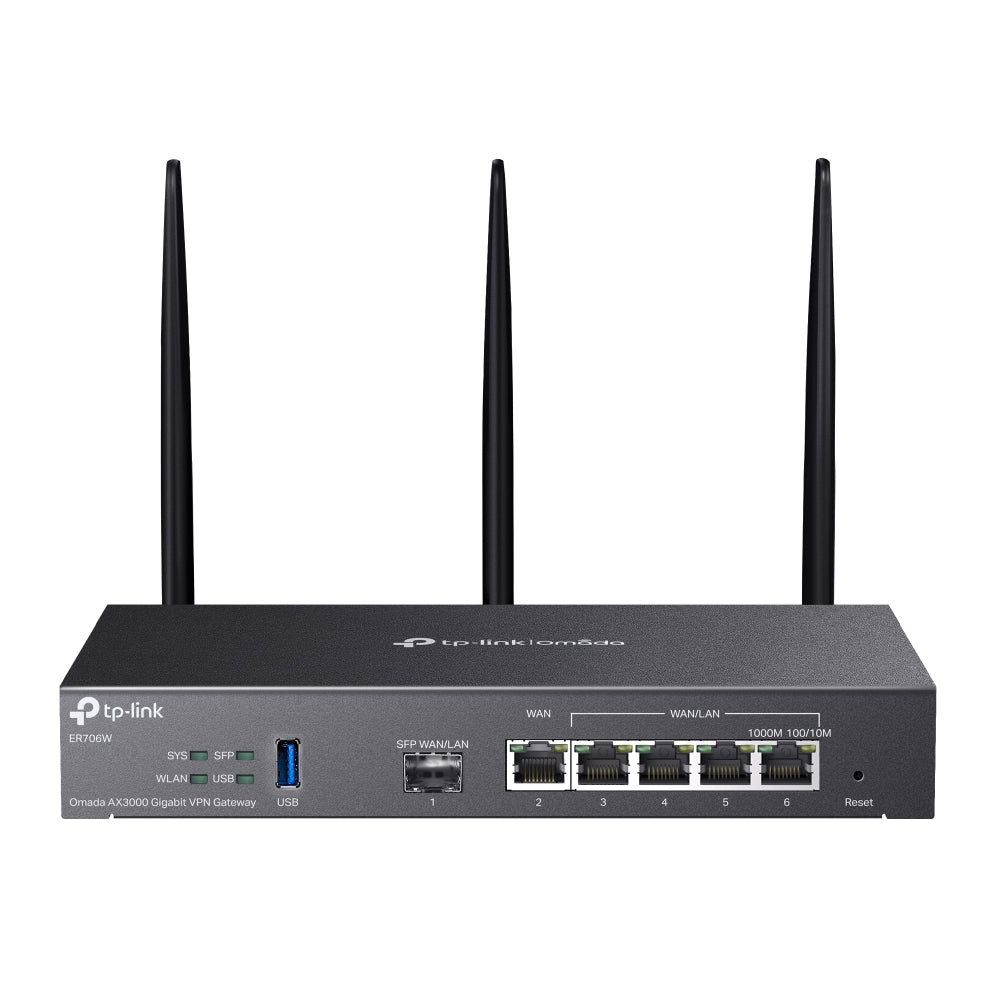

The TP-Link Omada ER706W is a dual-band Wi-Fi 6 gateway router for small businesses, offices and network installers who need wired and wireless connectivity with VPN access. It can also suit larger setups where Omada access points are used to extend wireless coverage.
Features
- AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*
- 6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
- Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.**
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
- High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.?
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Management Features
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
Specification
| Specification | Detail |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group Filtering URL Filtering Web Security |
| ARP Inspection | Sending GARP Packets ARP Scanning IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Interface | 1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN Port 4 Gigabit LAN/WAN Ports 1 USB3.0 (supports USB LTE dongle and USB Storage) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps (HE160) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensions ( W x D x H ) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are notincluded) |
| Antenna | 2.4 GHz: 2 x 3 dBi dual-band detachable antennas 5 GHz: 3 x 4.5 dBi dual-band detachable antennas |
| Mounting | Desktop/Wall-mounting |
| Max Power Consumption | EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
| GRE | Unencrypted: 624.2Mbps Encrypted: 301.5Mbps |
| WireGuard VPN | 393.5Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
| AT(DHCP) | 945.8 Mbps / 940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 646.9Mbps ESP-SHA256-AES256: 642.8Mbps ESP-SHA384-AES256: 648.9Mbps ESP-SHA512-AES256: 658.4 Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | Unencrypted: 1034.0 Mbps Encrypted: 570.0 Mbps |
| PPTP VPN Throughput | Unencrypted: 1165.0 Mbps Encrypted: 209.0 Mbps |
| SSL VPN Throughput | 126.7Mbps 66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate81,274 pps / 91,275 pps |
| Advanced Functions | Seamless Roaming Mesh (with EAP that supports Mesh) OFDMA Beamforming MU-MIMO Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Guest Network | Support |
| WAN Connection Type | Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | ACLIP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing Policy Routing RIP OSPF |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup(Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Port Forwarding Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Session Limit | IP-Based Session Limit |
| SSL VPN | 50 Tunnels |
| IPsec VPN | 100 IPSec VPN Tunnels LAN-to-LAN Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server PPTP VPN Client (10) 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server L2TP VPN Client (10) 50 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server OpenVPN Client (5) 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode |
| Web Authentication | No Authentication Simple Password Hotspot (Local User / Voucher / SMS/ Radius) External Radius Sever External Portal Sever LDAP |
| Omada App | Yes. |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNSCustomization) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | CertificationCE, FCC, RoHS |
| Package Contents | ER706W Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
-
