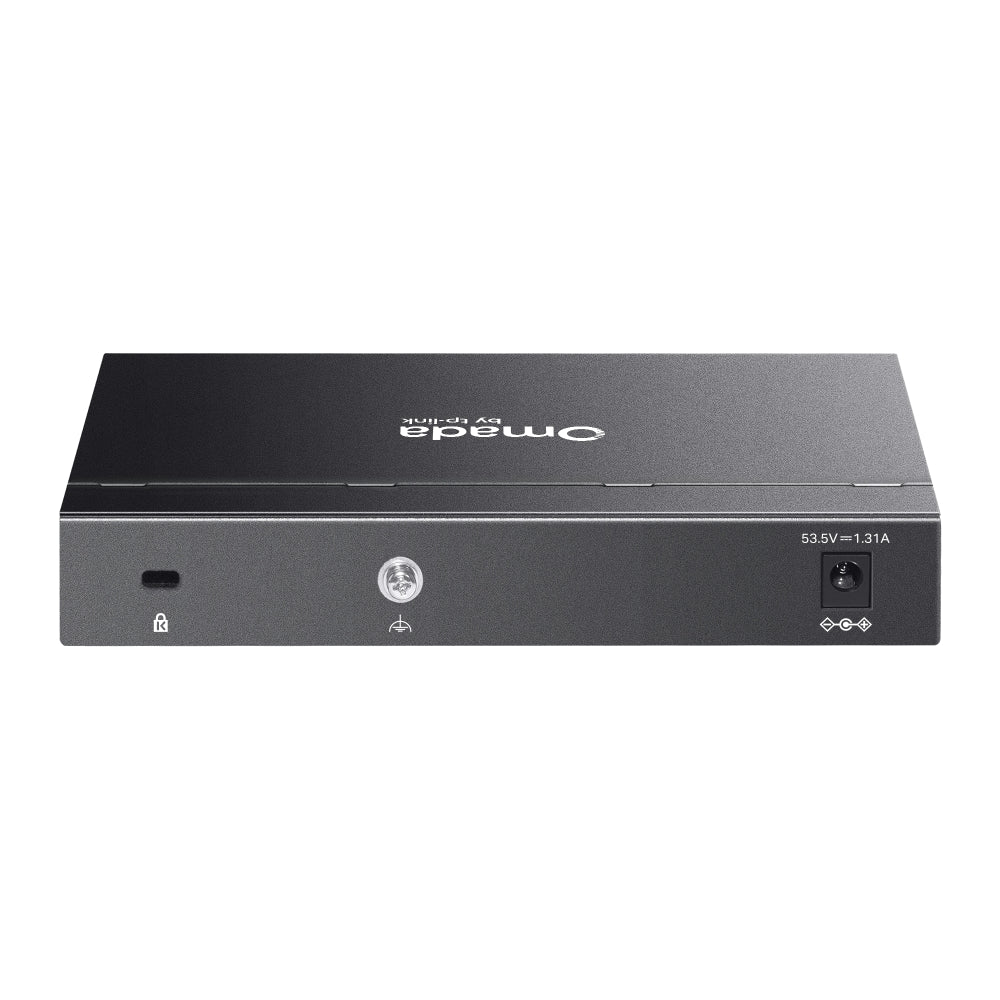

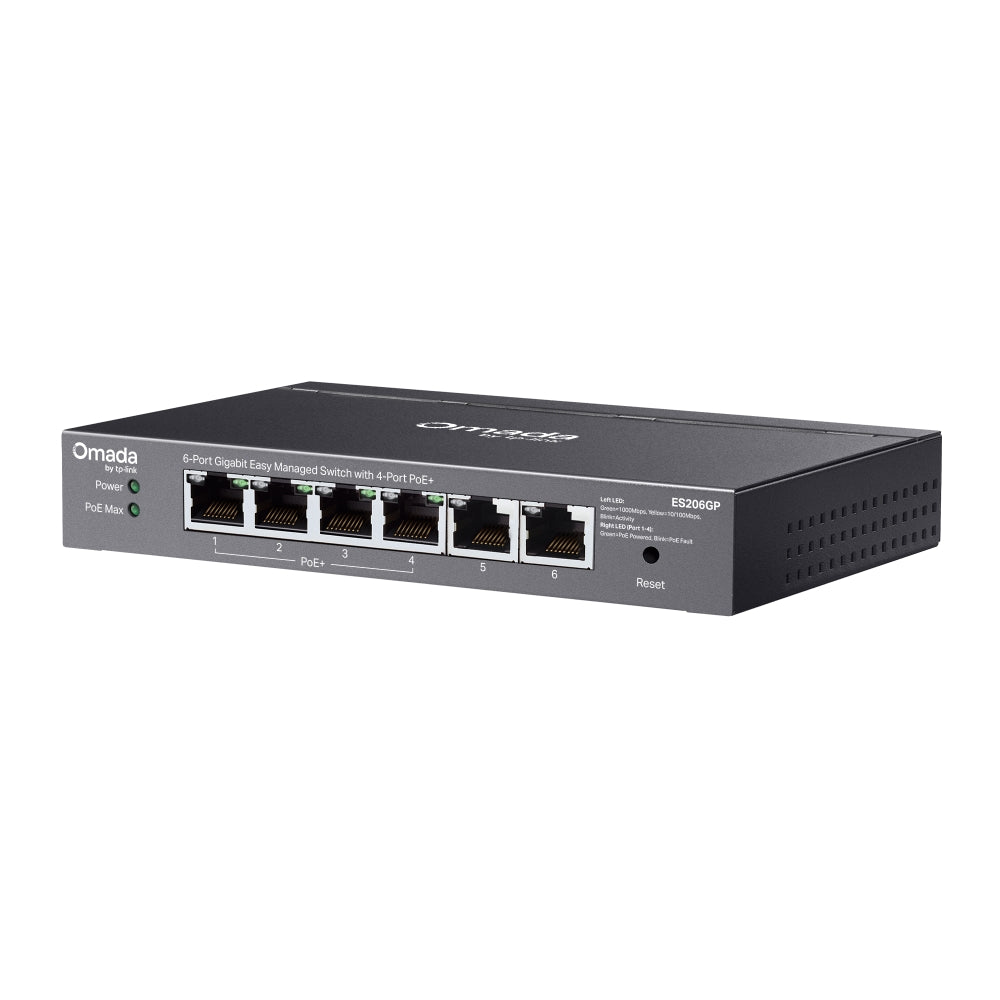

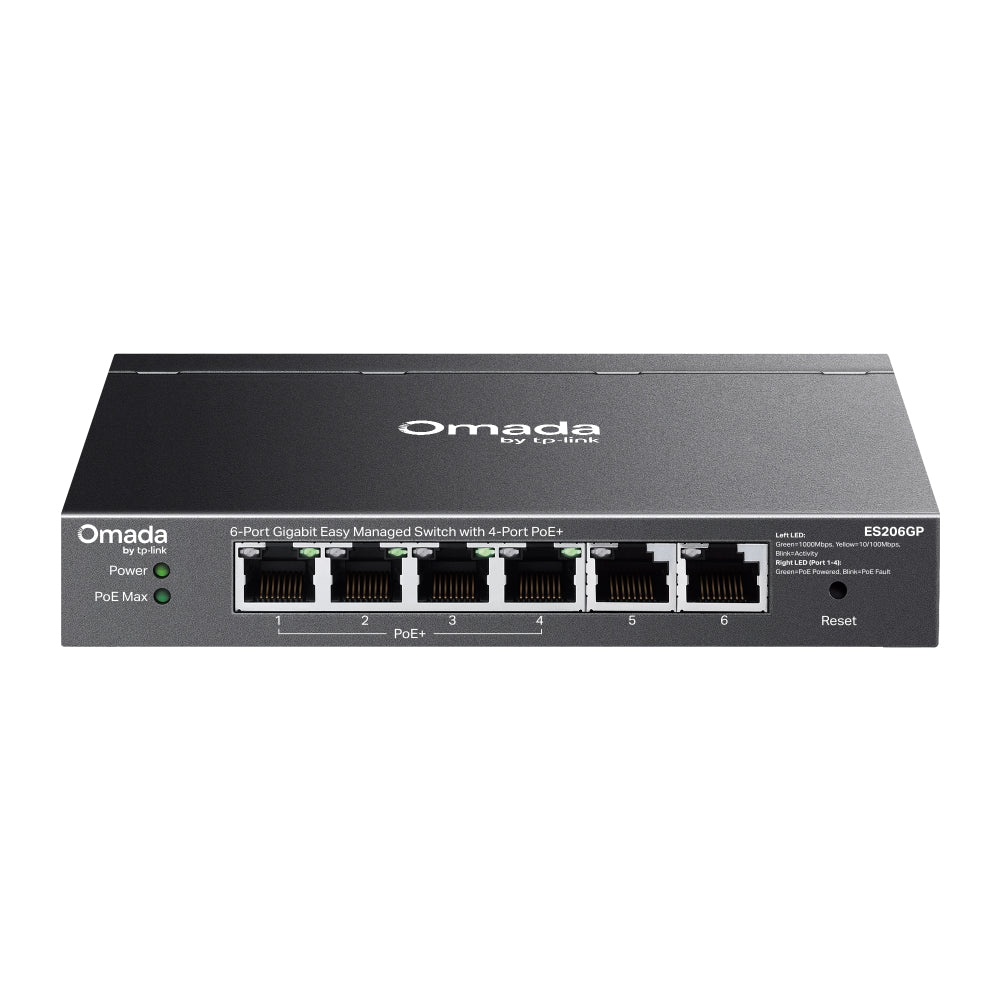

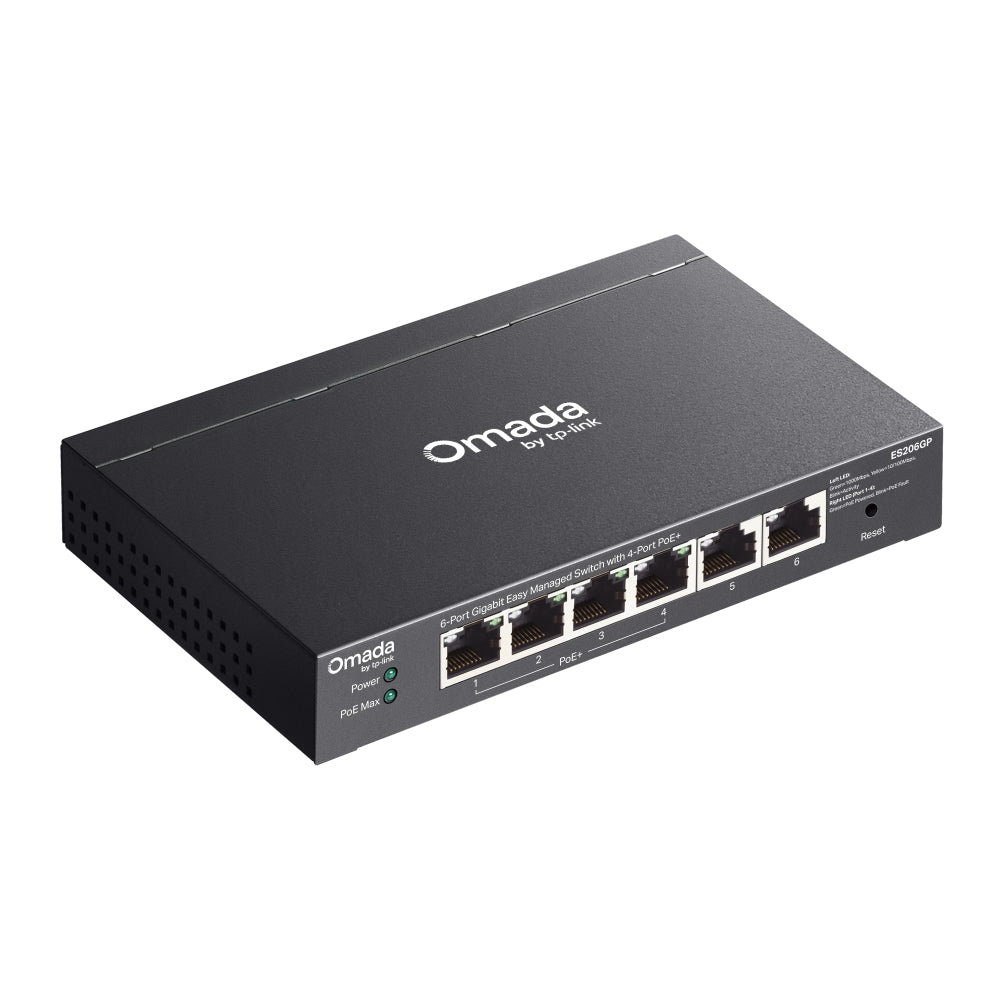

The TP-Link Omada ES206GP is a six-port Gigabit switch for small offices, shops and home networks that need to connect wired devices alongside PoE-powered cameras or wireless access points. Four ports provide PoE+, while the other two provide Gigabit Ethernet connections for devices such as PCs and printers.

Plug-and-play connectivity gets a network started quickly, with VLAN, QoS, IGMP snooping and automatic loop prevention available for additional traffic control. PoE Auto Recovery can restore power to a connected device when needed, and port isolation helps separate traffic in surveillance setups. Its fanless metal casing runs silently and can sit on a desktop or be wall-mounted. The 65W PoE budget supports up to 30W per PoE port, subject to the total available budget.

Key features

• Six 10/100/1000 Mbps RJ45 ports, including four 802.3af/at PoE+ ports
• 65W total PoE budget with up to 30W per port
• Plug-and-play setup with web-based configuration for additional features
• PoE Auto Recovery helps restore power to connected devices
• Port isolation, VLAN and IGMP snooping support network segmentation and surveillance traffic
• QoS provides options for prioritising network traffic
• Fanless design supports silent operation

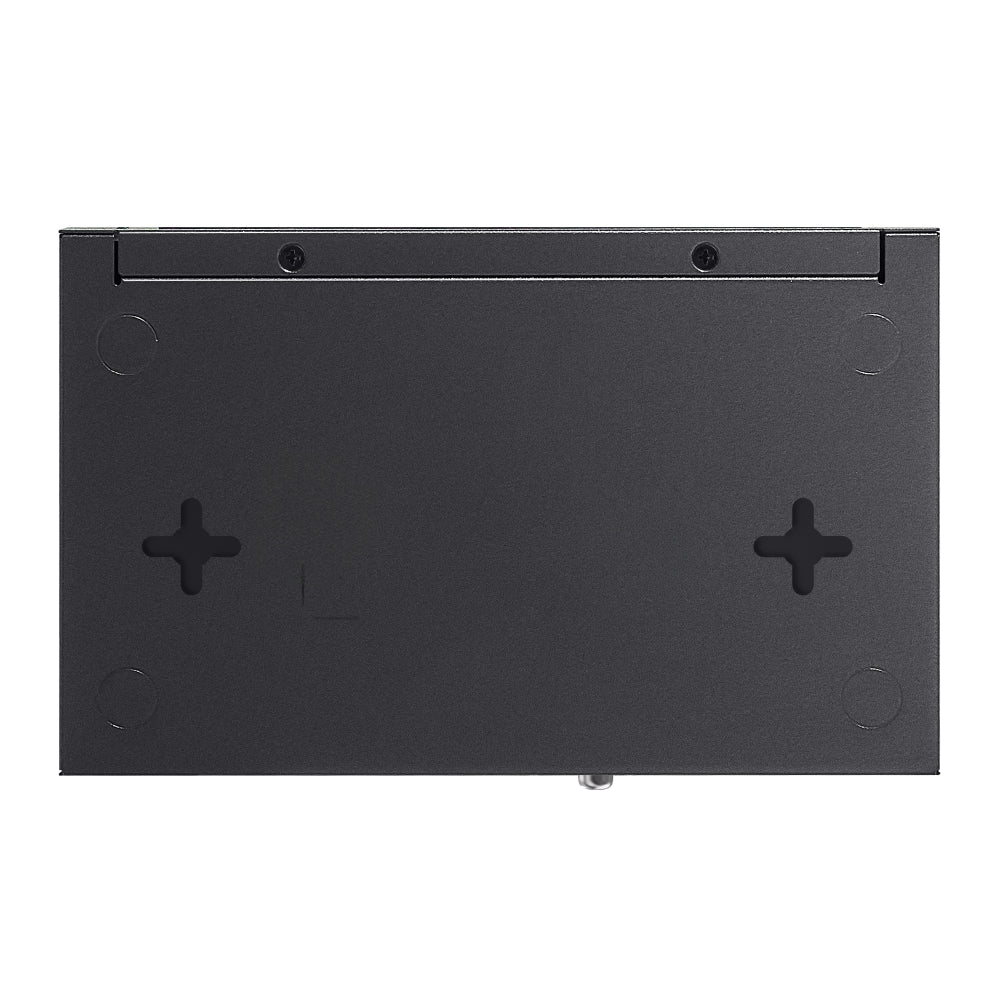

• Desktop or wall-mount installation in a metal casing

Compatibility

Connect PoE-compatible cameras or access points to ports 1–4; other Ethernet devices can use the RJ45 ports. PoE transmission can reach up to 250m, with the port speed reduced to 10 Mbps at that distance. The Omada app and centralised cloud management features require an Omada Controller; some functions have additional controller requirements. Good to know: check the power requirements of connected PoE devices against the 65W total budget and 30W per-port maximum.

In the box

• TP-Link Omada ES206GP
• Power Adapter
• Power Cord
• Rubber Feet
• Installation Guide

Specifications

For a compact wired network with four PoE+ connections, quiet operation and flexible mounting, the ES206GP brings useful management and recovery features to a small installation.
