TP-Link Omada Hardware Controller

2× 10/100 Mbps, USB 2.0, Micro USB, 802.3af/at PoE, 100×98×25 mm

Key Features

• Centralized Management: Supports up to 100 Omada access points, 10 Omada routers, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs†
• Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime
• On-Premises Management: Locally monitor and manage devices with the ultimate security and stability

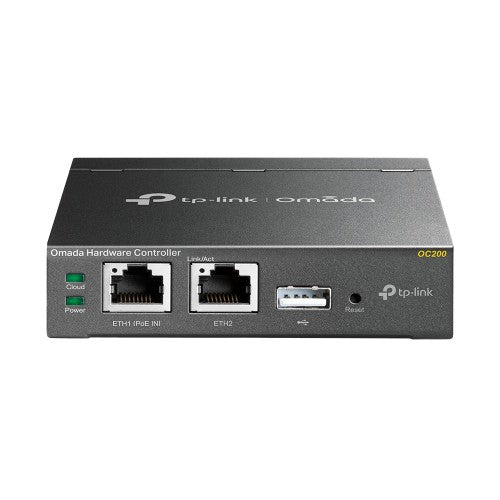

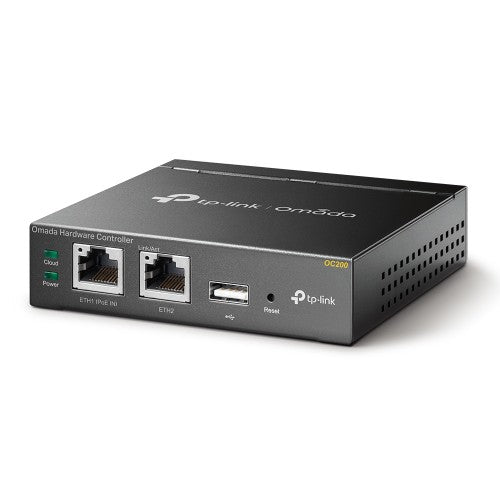

• Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports

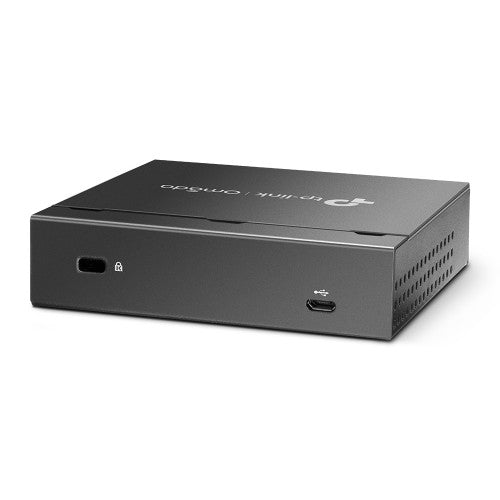

• Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation
• Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution
• Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance
• Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance

Description

Centralized Management for
Access Points, Switches, and Routers
OC200, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, Omada switches, and Omada routers—all controlled from a single interface.

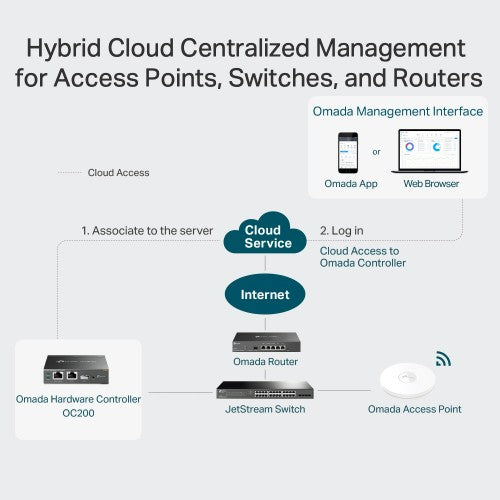

Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC200 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

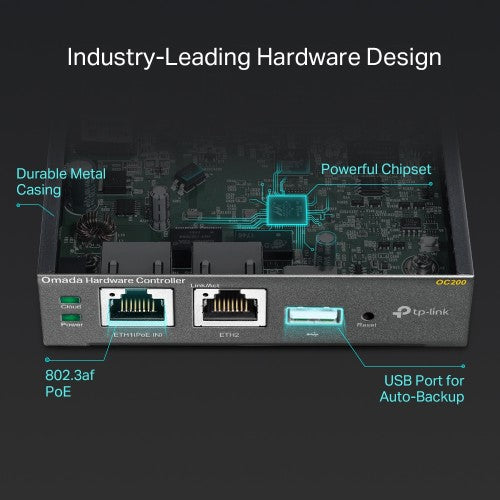

Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC200 has enough processing power to support the massive management of your business network.

Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

WiFi Heatmap Simulator
Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.

Visualizable Network Report for Conveniently Summary
Help service providers easily report network service quality to their customers through reports. IT administrators also easily report network operation status through reports.

Batch Management, Multi-Site Management, and Remote Firmware Updates
Improve network maintenance without needing to configure on-site or manage devices one by one.

Powerful Scheduling
Maintain your network easily with more agile and effective processing. No manual tasks required.

Specifications

Design
LED indicators	Yes
Certification	CE, FCC, RoHS
Product colour	Black
Cable lock slot type	Kensington
Features
Antenna type	Internal
Built-in processor	Yes
Processor frequency	1200 MHz
Number of processors installed	1
Performance
Built-in processor	Yes
Processor frequency	1200 MHz
Number of processors installed	1
Internal memory type	DDR3
Internal memory	1024 MB
Flash memory	4000 MB
Control display unit	No
Certification	CE, FCC, RoHS
Product colour	Black
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10,100 Mbit/s
Security
VLAN support	Yes
Security algorithms	SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Access Control List (ACL)	Yes
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Management features
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Power
Power over Ethernet (PoE)	Yes
Power consumption (max)	11.3 W
Weight & dimensions
Width	100 mm
Height	25 mm
Depth	98 mm
Packaging content
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Technical details
Built-in processor	Yes
Antenna type	Internal
Processor frequency	1200 MHz
Number of processors installed	1
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Memory
Internal memory type	DDR3
Internal memory	1024 MB
Flash memory	4000 MB
Display
Control display unit	No
Certificates
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Logistics data
Harmonized System (HS) code	85176990
