TP-LINK

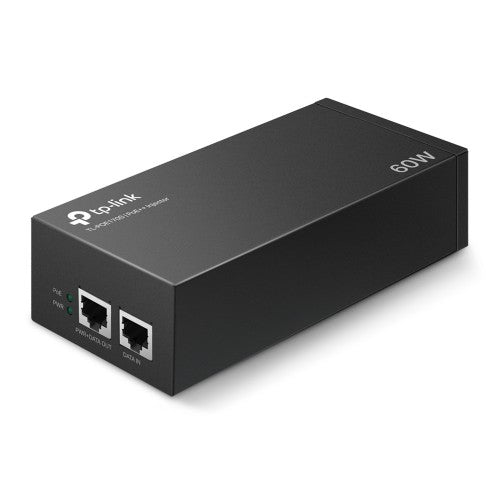

TP-Link Omada PoE++ Injector Adapter

SKU TL-POE170S
£32.77
£32.77
Excluding taxes
PoE++ Injector Adapter

Key Features

  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need

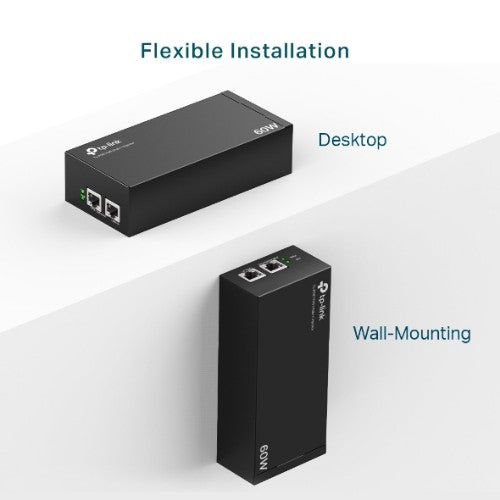

  • Wall-mounting and desktop design accommodates most installation scenarios

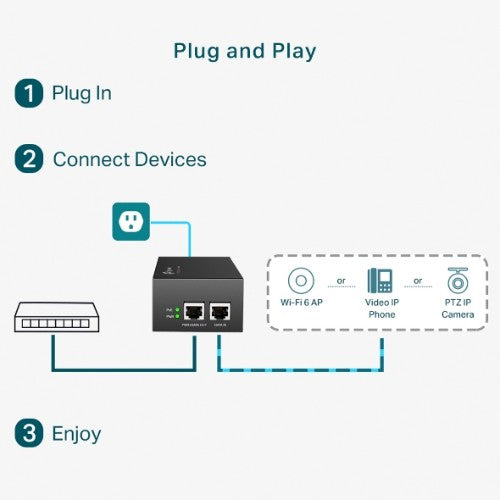

  • Plug & Play installation requires no configuration
  • Integrated power supply

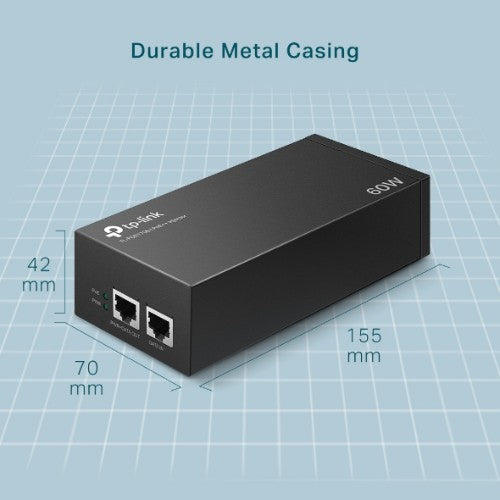

  • Durable metal casing

Description

What This Product Does

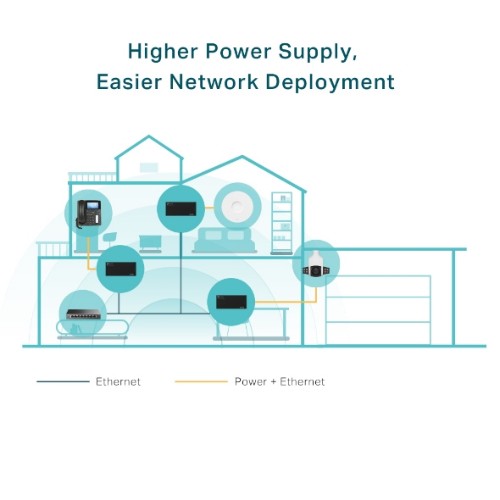

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.

Specifications

Network
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Features
Wall mountable Yes
Plug and Play Yes
Product colour Black
Housing material Metal
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Package type Box
Certification FCC, CE, RoHS
Ports & interfaces
RJ-45 input ports 1
RJ-45 output ports 1
Power
Output power 60 W
AC adapter input voltage 100 - 240 V
AC adapter frequency 50/60 Hz
Certificates
Certification FCC, CE, RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 155 mm
Depth 70 mm
Height 42 mm
Package weight 920 g
Package depth 250 mm
Package width 190 mm
Package height 95 mm
Packaging content
Quick installation guide Yes
Number of products included 1 pc(s)
Package type Box
Packaging data
Package weight 920 g
Package type Box
Package depth 250 mm
Package width 190 mm
Package height 95 mm
Technical details
Number of products included 1 pc(s)
Package width 190 mm
Package height 95 mm
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Harmonized System (HS) code 85044095
Logistics data
Harmonized System (HS) code 85044095
