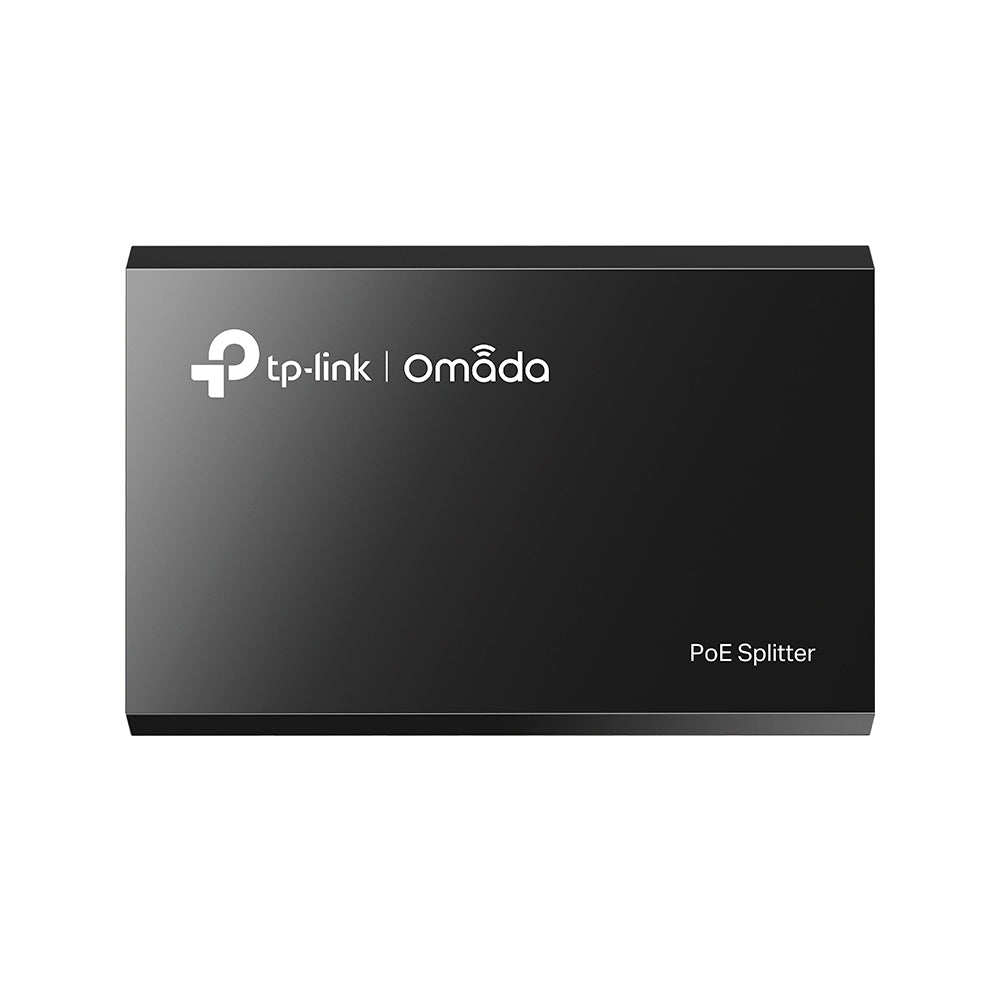

The TP-Link Omada POE10R is a PoE splitter for adding power and a network connection to a non-PoE access point, IP camera or IP phone. It suits home and small business network installs where the device needs to be positioned away from a mains socket.

Connect it to an IEEE 802.3af PoE source and the POE10R separates the incoming power and data. Its switchable DC output lets you select 5V, 9V or 12V to suit the connected device, while the Ethernet connection supports Gigabit speeds. With plug-and-play installation, it needs no configuration, and power can be delivered over a cable run of up to 100 metres. Built-in short circuit protection and automatic disconnection for over-voltage, under-voltage or over-current help protect the connected equipment.

Key features

• Complies with IEEE 802.3af for use with compatible PoE power sourcing equipment.

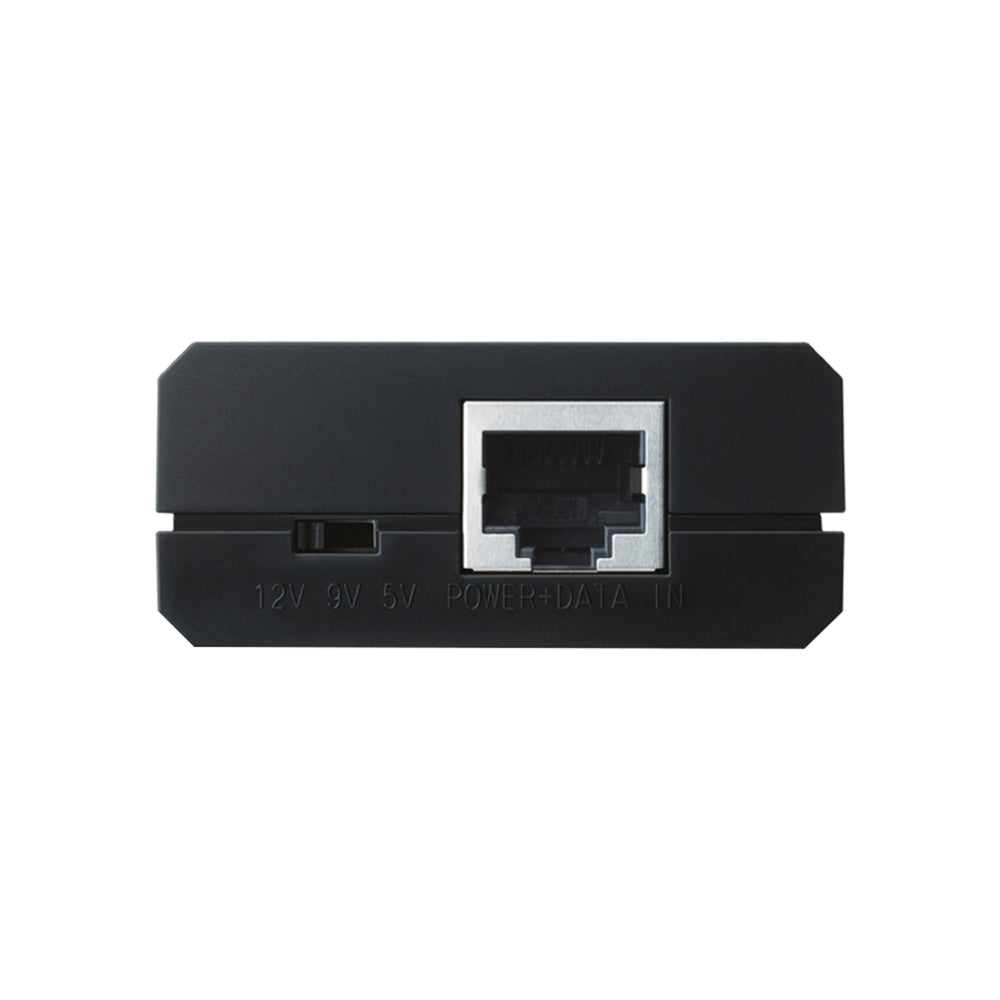

• Selectable 5VDC, 9VDC or 12VDC output to match different devices.
• Provides up to 10W at 5VDC, 9W at 9VDC or 12W at 12VDC.
• Gigabit Ethernet ports support data rates up to 1000Mbps.
• Separates power and data so non-PoE equipment can be installed where mains power is unavailable.
• Auto-sensing, power detection and classification support operation with a compatible PoE source.
• Plug-and-play setup requires no configuration.

Compatibility

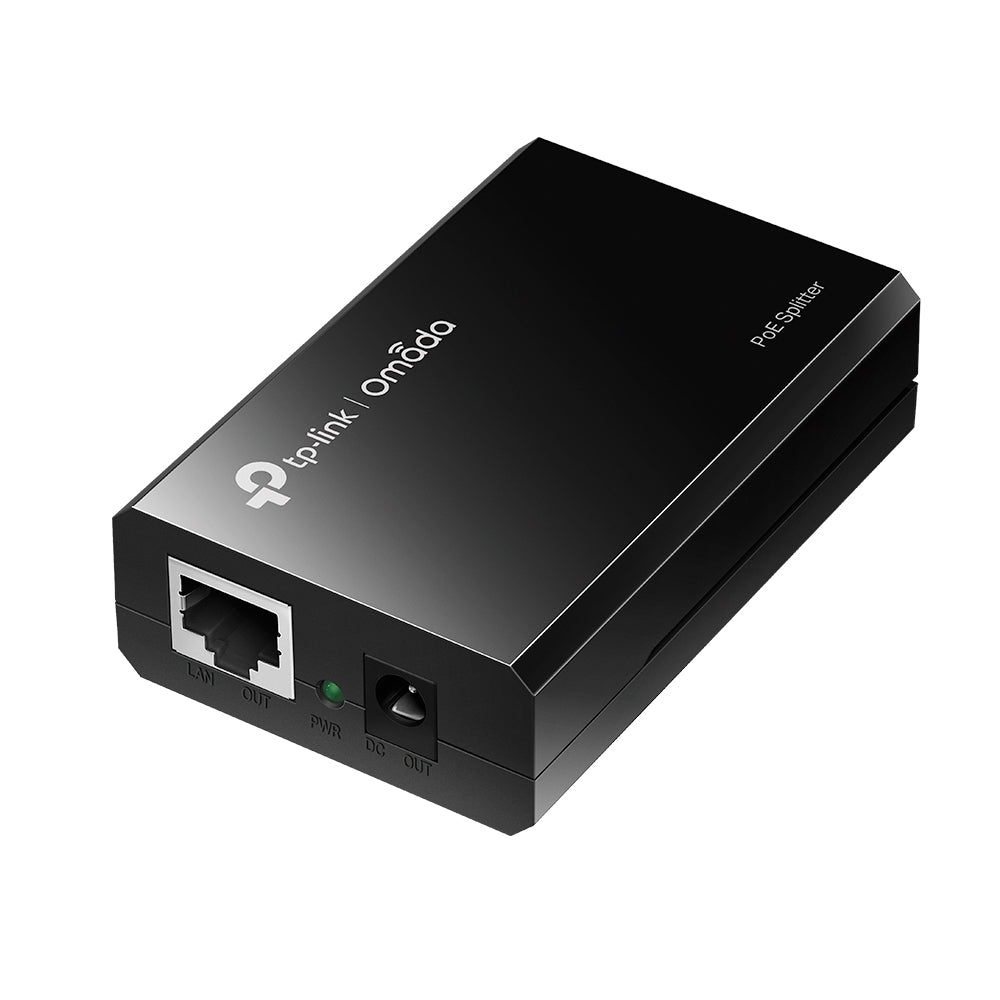

Use with an IEEE 802.3af compliant PoE switch or injector, and check that the connected device accepts the selected DC voltage and current. The splitter has a PoE input RJ45 port, a LAN output RJ45 port and a DC power output socket. Good to know: a PoE source and any Ethernet cables needed for the installation are separate, and the splitter's selected voltage and DC connector must match the powered device.

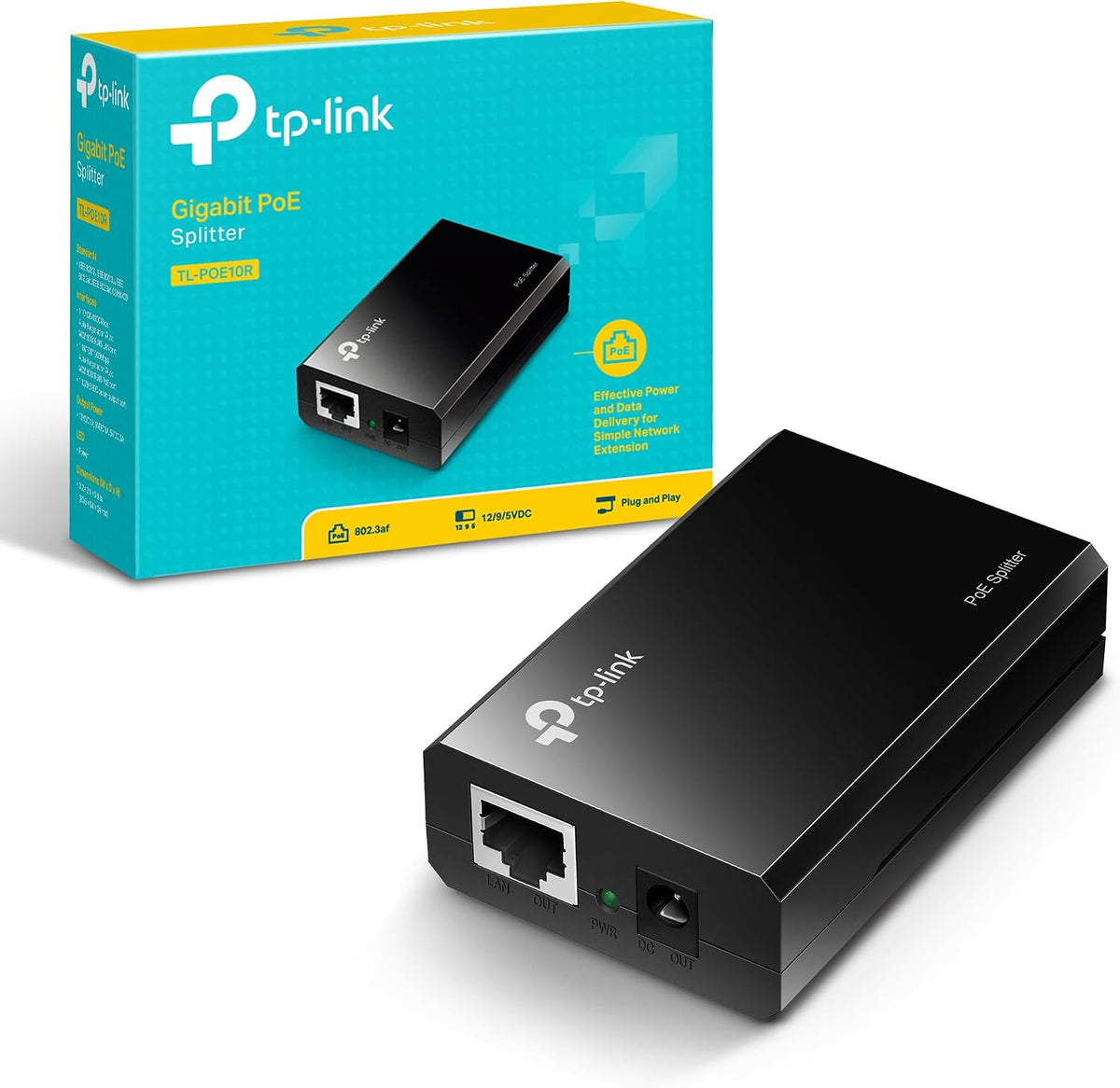

In the box

• TP-Link Omada POE10R
• Power cord
• Installation guide

Specifications

For network extensions to access points, cameras and phones, the POE10R combines a straightforward setup with selectable DC power and Gigabit data in one compact splitter.
