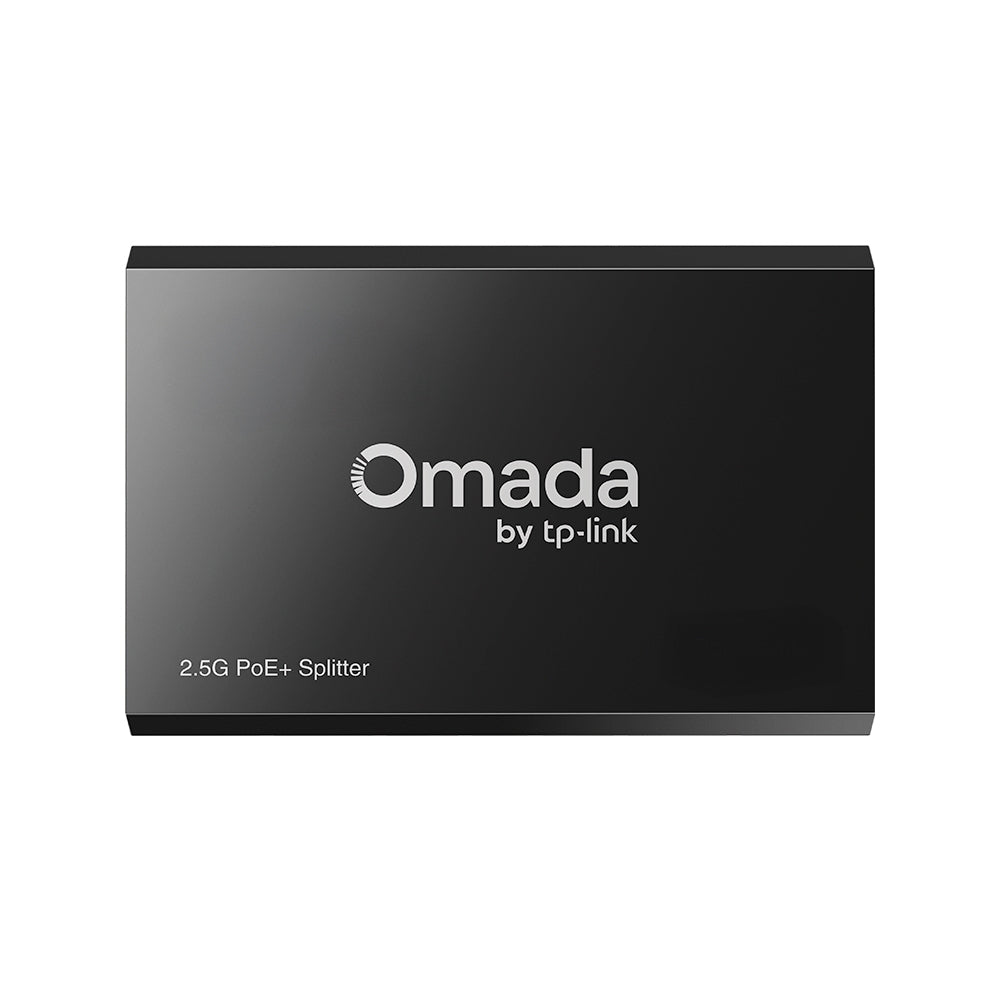

The TP-Link Omada POE260R is a PoE+ splitter for adding power and network access to a non-PoE device over an Ethernet connection. It suits network installers and small business users connecting equipment such as an access point, camera or IP phone where a separate power adapter is inconvenient.

It takes PoE+ power and data through its RJ45 input, then passes data through a second RJ45 port while providing a selectable 5V, 9V or 12V DC output. The two Ethernet ports support speeds up to 2.5Gbps, so the splitter can be used in multi-gigabit networks as well as standard Ethernet setups. Plug-and-play operation means no configuration is required.

Key features

• Converts IEEE 802.3af/at PoE input into DC power for a non-PoE device.
• Select 5V, 9V or 12V DC output to suit the connected equipment.
• Supports up to 2.5Gbps data transfer through its RJ45 ports.
• Supports Ethernet auto-negotiation at 10M, 100M, 1000M and 2.5Gbps.
• Designed for use with Cat 5e or higher cable for 1000BASE-T and 2.5GBASE-T connections.
• Plug-and-play setup requires no network configuration.

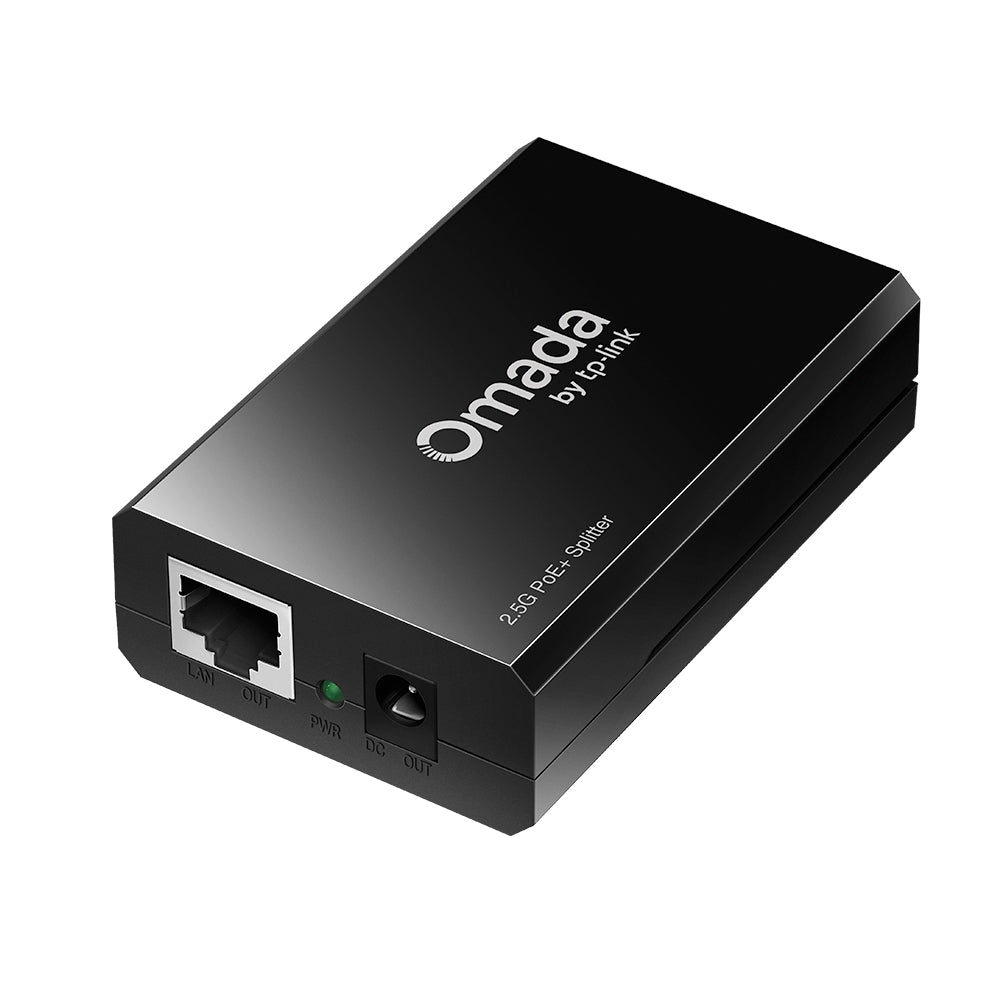

• A PWR indicator shows whether the splitter is connected correctly to power sourcing equipment.

Compatibility

Connect the POWER+DATA IN port to a PoE switch or injector that supports IEEE 802.3af/at, and connect the non-PoE device to LAN OUT and DC OUT. The connected device must match the selected voltage and stay within the splitter's supported power output. Good to know: a PoE switch or injector and the Ethernet cables are required for use and are not included with the splitter.

In the box

• TP-Link Omada POE260R

Specifications

The POE260R offers a practical way to power compatible non-PoE network equipment while retaining a fast Ethernet data link, making it useful when a nearby mains outlet is unavailable.
