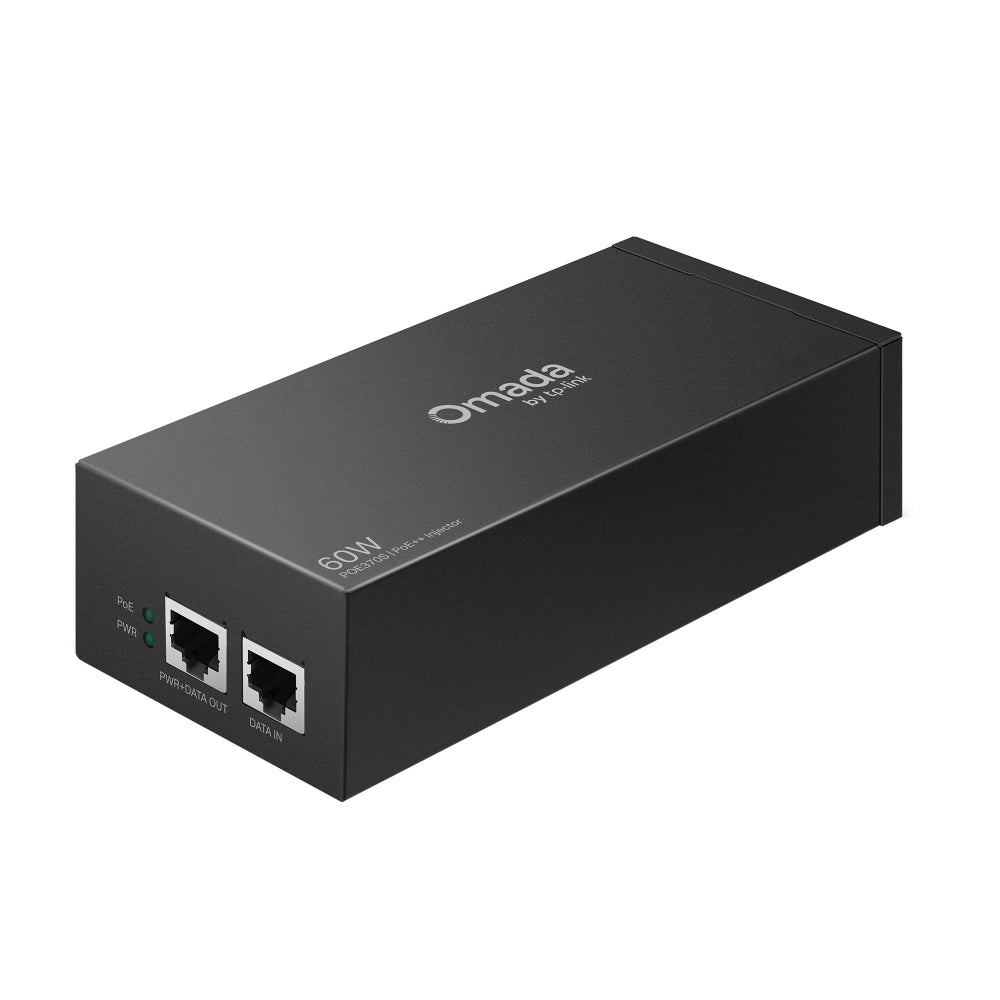

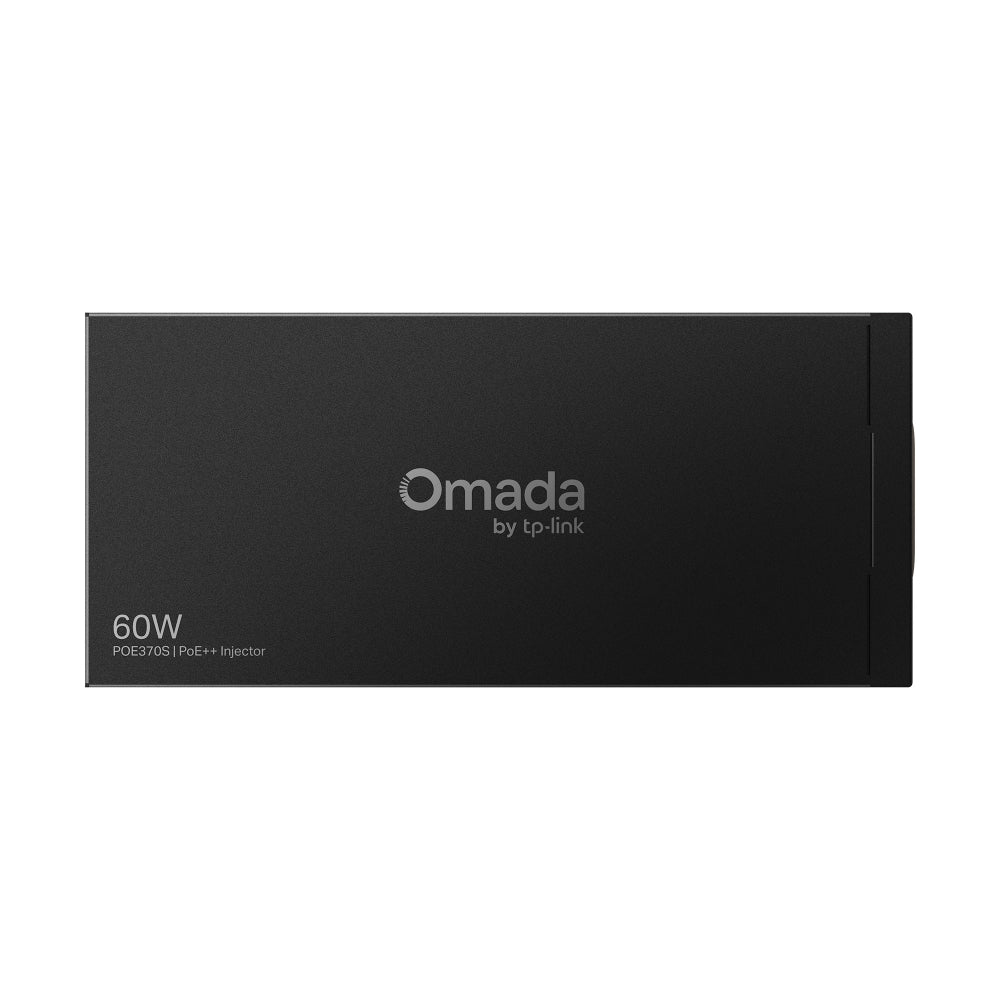

The TP-Link Omada POE370S is a PoE++ injector for network installations where a compatible device needs both power and data over Ethernet but a power outlet is not available nearby. It suits home or business users connecting equipment such as PTZ IP cameras, access points or LED lighting.

With two multi-gigabit RJ45 ports supporting speeds from 10Mbps to 10Gbps, the injector can work with a range of network equipment. It supports IEEE 802.3af/at/bt (Type 3) and supplies up to 60W, automatically matching power to the connected device. Its integrated power supply, plug-and-play setup and desktop or wall-mounting design make it straightforward to add where needed.

Key features

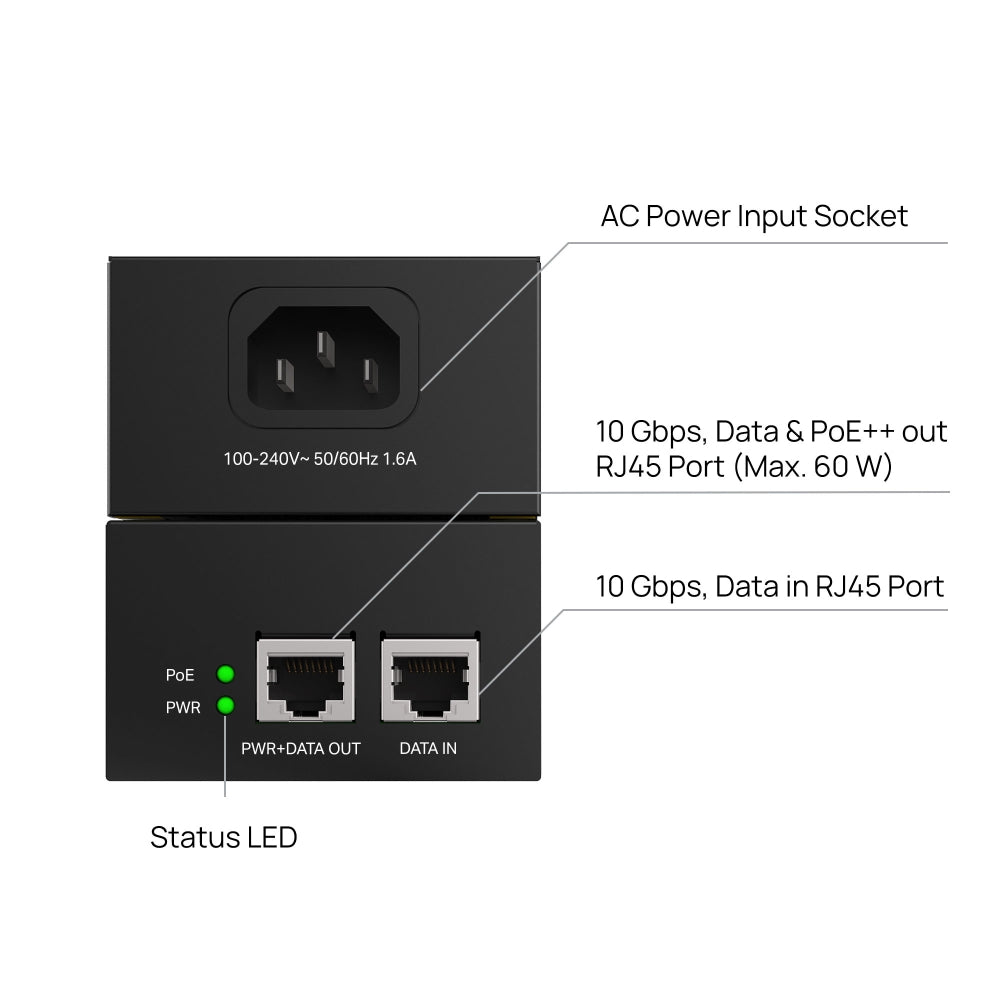

• Two RJ45 ports support link speeds up to 10Gbps.
• Supplies up to 60W of PoE power.
• Complies with IEEE 802.3af/at/bt standards.
• Automatically determines the power required by the connected device.
• Carries data and power together over an Ethernet cable.
• Plug-and-play installation requires no configuration.
• Can be placed on a desktop or mounted on a wall.
• Metal casing and integrated power supply suit a range of installation settings.

Compatibility

Connect a network source to the LAN input and a compatible PoE device to the PoE output. Ethernet cable category requirements vary by link speed: 10GBase-T supports category 6 cable up to 50m or category 6a shielded cable up to 90m. Good to know: this injector is incompatible with Passive PoE and other non-standard PoE devices.

In the box

• TP-Link Omada POE370S
• Power Cord
• Installation Guide

Specifications

For extending a standards-compliant network connection and powering a compatible device from one location, the POE370S combines 10Gbps connectivity with up to 60W of PoE in a simple, flexible unit.
