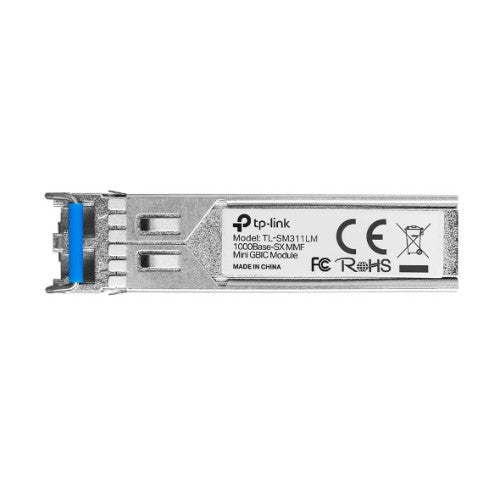

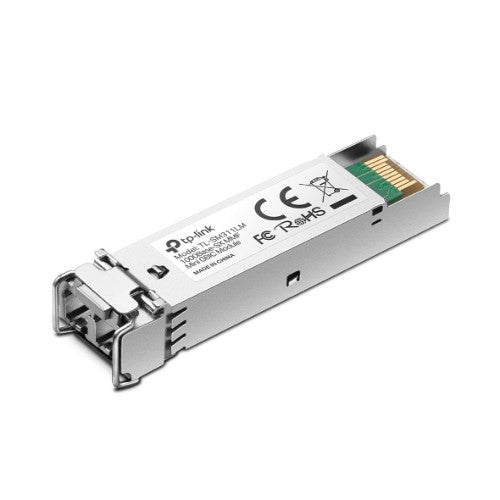

SFP 1000BASE-SX LC MiniGBIC Mm

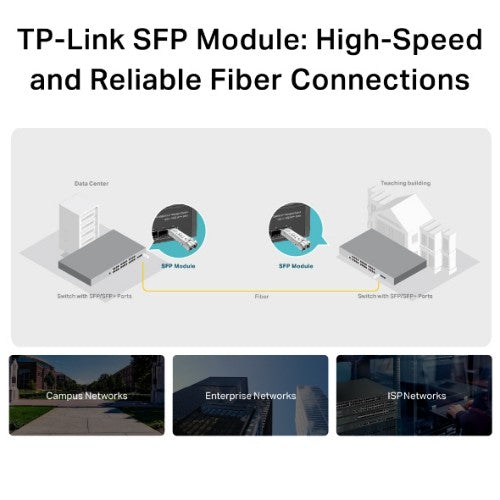

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Key Features
- Multi-mode MiniGBIC module
- Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
Description
What This Product DoesThe TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC (UPC) |
| Networking standards | IEEE 802.3z |

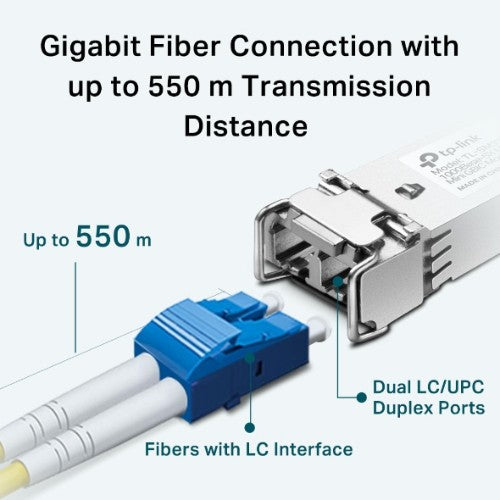

| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Product colour | Metallic |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Metallic |
| Certification | FCC, CE |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | FCC, CE |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC (UPC) |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Weight & dimensions | |
| Width | 55.4 mm |
| Depth | 13.7 mm |
| Height | 12.9 mm |
| Package depth | 207 mm |
| Package width | 38 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| User guide | Yes |
| Technical details | |
| Package width | 38 mm |
| Package height | 38 mm |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 207 mm |
| Package width | 38 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| User guide | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
-
