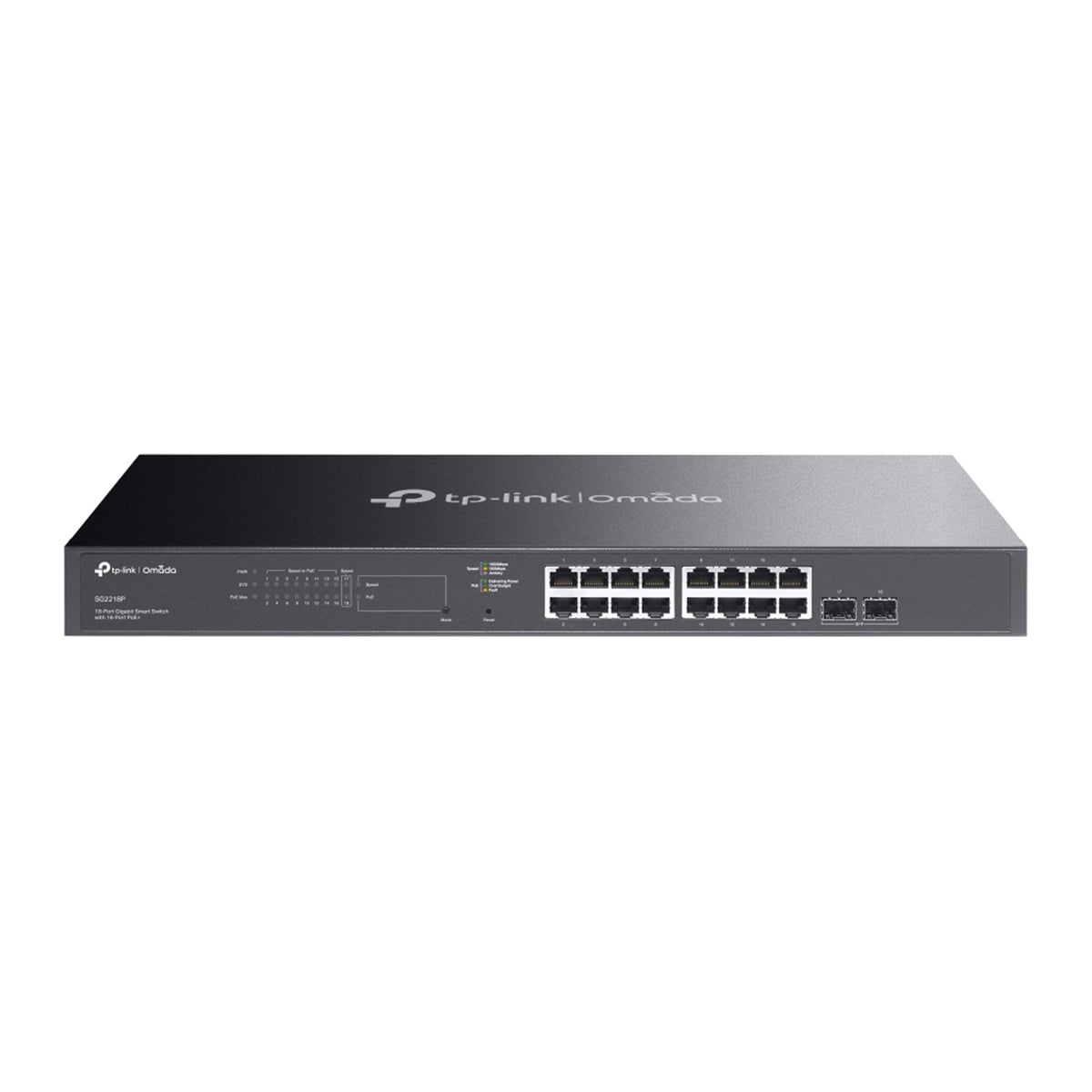

TP-Link Omada SG2218P | Gigabit PoE+ switch | 16 ports and 2 SFP slots | 150 W

TP-Link

TP-Link Omada SG2218P | Gigabit PoE+ switch | 16 ports and 2 SFP slots | 150 W

SKU SG2218P

Regular price: £241.99 inc VAT

Regular price: £241.99 inc VAT

Excluding taxes

Quantity

TP-Link

TP-Link Omada SG2218P | Gigabit PoE+ switch | 16 ports and 2 SFP slots | 150 W

SKU SG2218P

Regular price: £241.99 inc VAT

Product Description

The TP-Link Omada SG2218P is a managed Gigabit switch for small and medium-sized business networks. It suits offices, shops and other sites connecting wired devices such as access points, IP cameras, phones and computers, with PoE+ power available on 16 ports.

Features

16x Gigabit 802.3af/at PoE+ ports and 2x Gigabit SFP Slots
150 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and rackmountable design

HARDWARE FEATURES

Interface
16x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2x Gigabit SFP Slots
Fan Quantity -Fanless Design
Physical Security Lockv
Power Supply100-240V AC, 50/60Hz
PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 150 W*
Dimensions ( W x D x H )17.3x7.1x1.7 in (440x180x44 mm)
MountingRack Mountable

L2 and L2+ Features

32 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED

Advanced Features

Management Features

Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

Specification

Specification	Detail
Software Defined Networking (SDN) with Cloud Access	Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
PERFORMANCE	Switching Capacity36 Gbps Packet Forwarding Rate26.78 Mpps MAC Address Table8K Packet Buffer Memory4.1 Mbit Jumbo Frame9 KB
Quality of Service	802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control - Port/Flow based Rating Limit Smoother Performance Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
L2 Multicast	511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering Limited IP Multicast (256 profiles and 16 entries per profile)
VLAN	VLAN Group - Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN: 12 Entries Protocol VLAN GVRP Voice VLAN
Access Control List	Support up to 230 entries Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation: Permit/Deny Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark ACL Rules Binding - Port Binding - VLAN Binding
Security	IP-MAC-Port Binding AAA 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection IP Source Guard - 253 Entries - Source IP+Source MAC IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control
IPv6	IPv6 Static Routing and ACL IPv6 Dual IPv4/IPv6 IPv6 Interface Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
Certification	CE, FCC, RoHS
Package Content	SG2218P Power Cord Installation Guide Rackmount Kit Rubber Feet
System Requirements	Microsoft Windows XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature: 0–45 C (32–113 F); Storage Temperature: -40–70 C (-40–158 F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
