TP-LINK

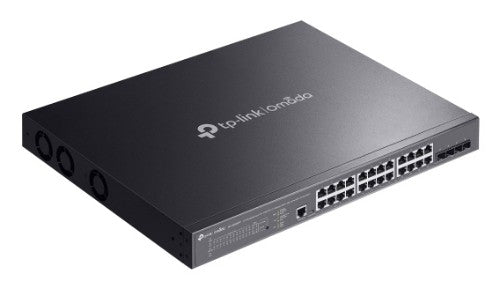

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

SKU SG3428XMPP
£465.61
£465.61
Excluding taxes
Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

Key Features

  • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
  • 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
  • 500 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design

Description

Empowering the High-Power Devices with Gigabit PoE++ Ports

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specifications

Management features
ARP inspection Yes
Reset button Yes
Switch type Managed
Web-based management Yes
System event log Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Switch layer L2+
Configuring Location Settings (CLI) Yes
Cloud-managed Yes
Ports & interfaces
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Console port RJ-45/Micro-USB
Power connector AC-in jack
Network
Networking standards IEEE 802.3af, IEEE 802.3at
Head-of-line (HOL) blocking Yes
VLAN support Yes
Spanning tree protocol Yes
Rate limiting Yes
Port mirroring Yes
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
10G support Yes
IGMP snooping Yes
Data transmission
Jumbo frames 9000
Packet buffer memory 12 MB
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Forwarding rate 95.23 Mpps
Security
IP-MAC-Port binding Yes
BPDU filtering/protection Yes
Authentication Auto VLAN, Guest VLAN
Static port security Yes
SSH/SSL support Yes
MAC address filtering Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP relay, DHCP server
Multicast features
Multicast support Yes
Design
Reset button Yes
Form factor 1U
Product colour Black
LED indicators Yes
Rack mounting Yes
Number of fans 3 fan(s)
Certification CE, FCC, RoHS
Power
Power consumption (max) 486.2 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power source AC
Power connector AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 16
Total Power over Ethernet (PoE) budget 500 W
Power over Ethernet (PoE) Yes
Power over Ethernet 4PPoE (PoE++) ports quantity 8
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 1658.78 BTU/h
Virtual LAN features
VLAN support Yes
Weight & dimensions
Width 440 mm
Depth 330 mm
Height 44 mm
Packaging content
Quick start guide Yes
Cables included AC
Performance
Packet buffer memory 12 MB
Technical details
Form factor 1U
Product colour Black
Rack mounting Yes
Memory
Packet buffer memory 12 MB
Certificates
Certification CE, FCC, RoHS
Indication
LED indicators Yes
Packaging data
Quick start guide Yes
Cables included AC
