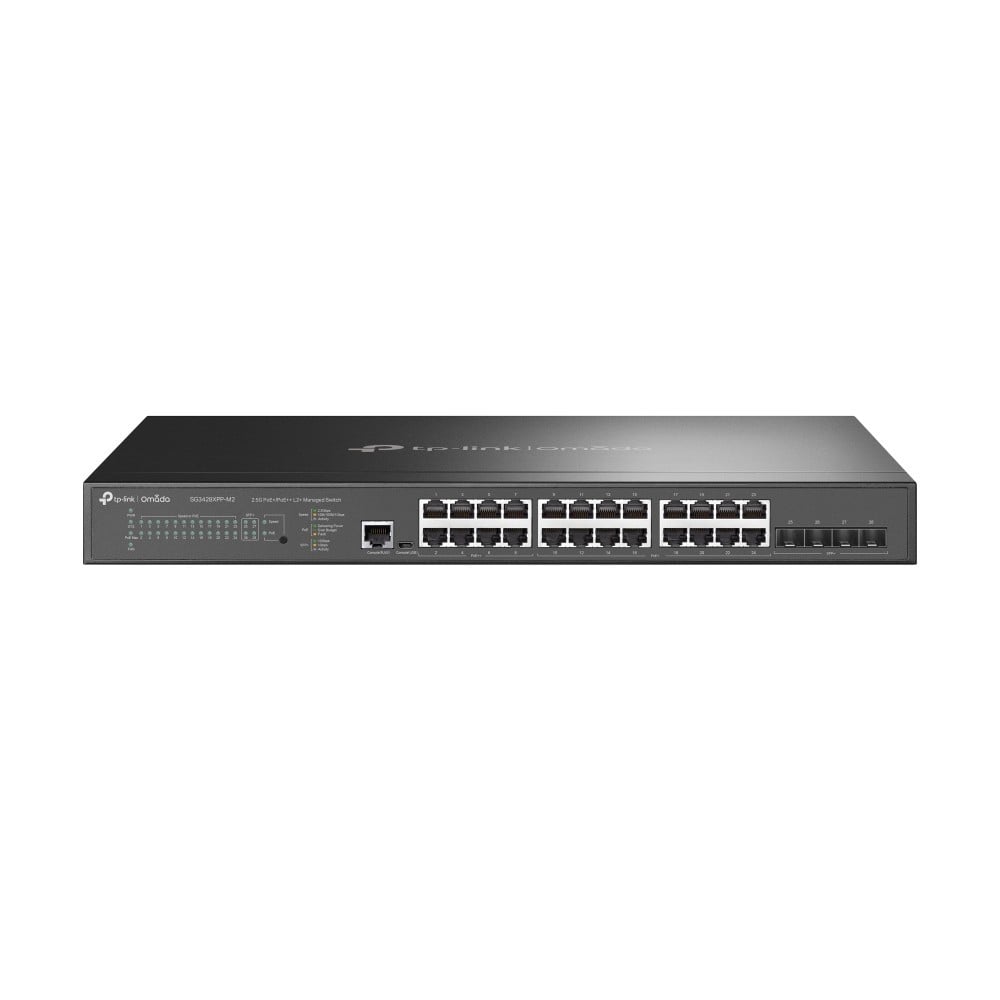

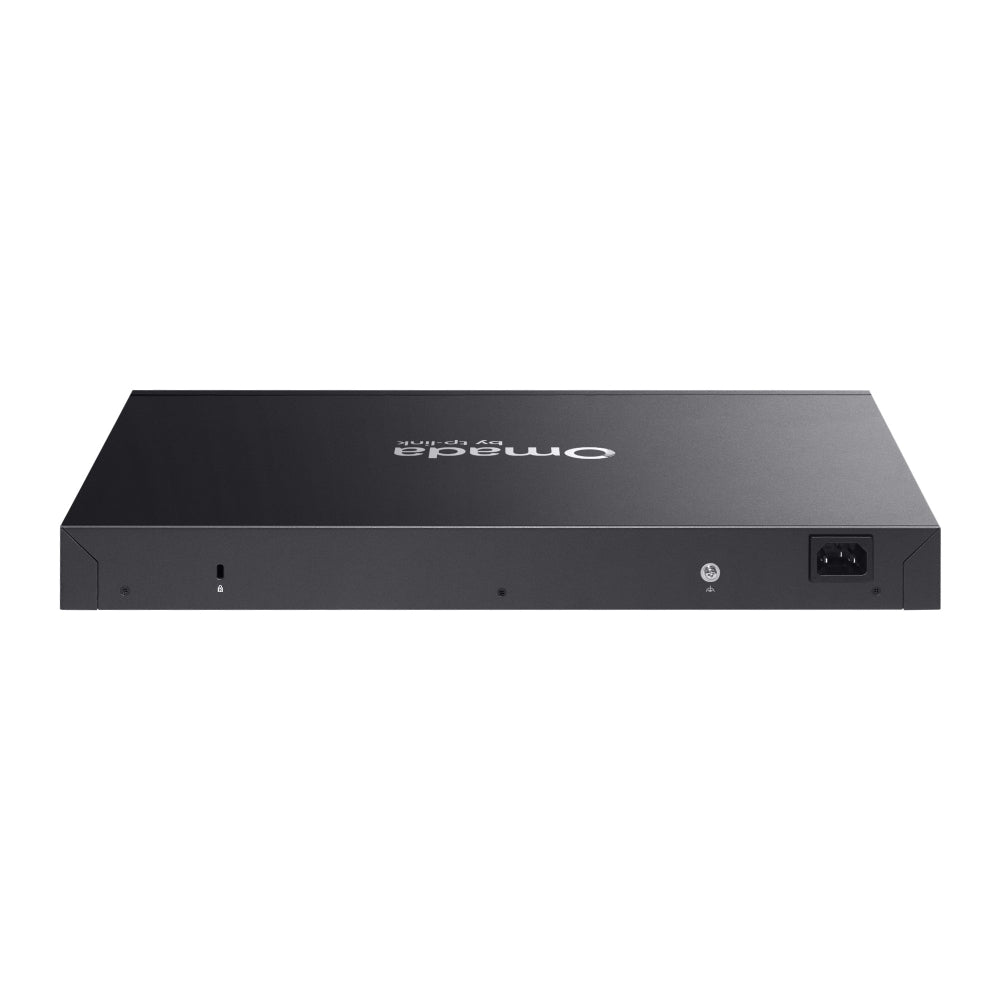

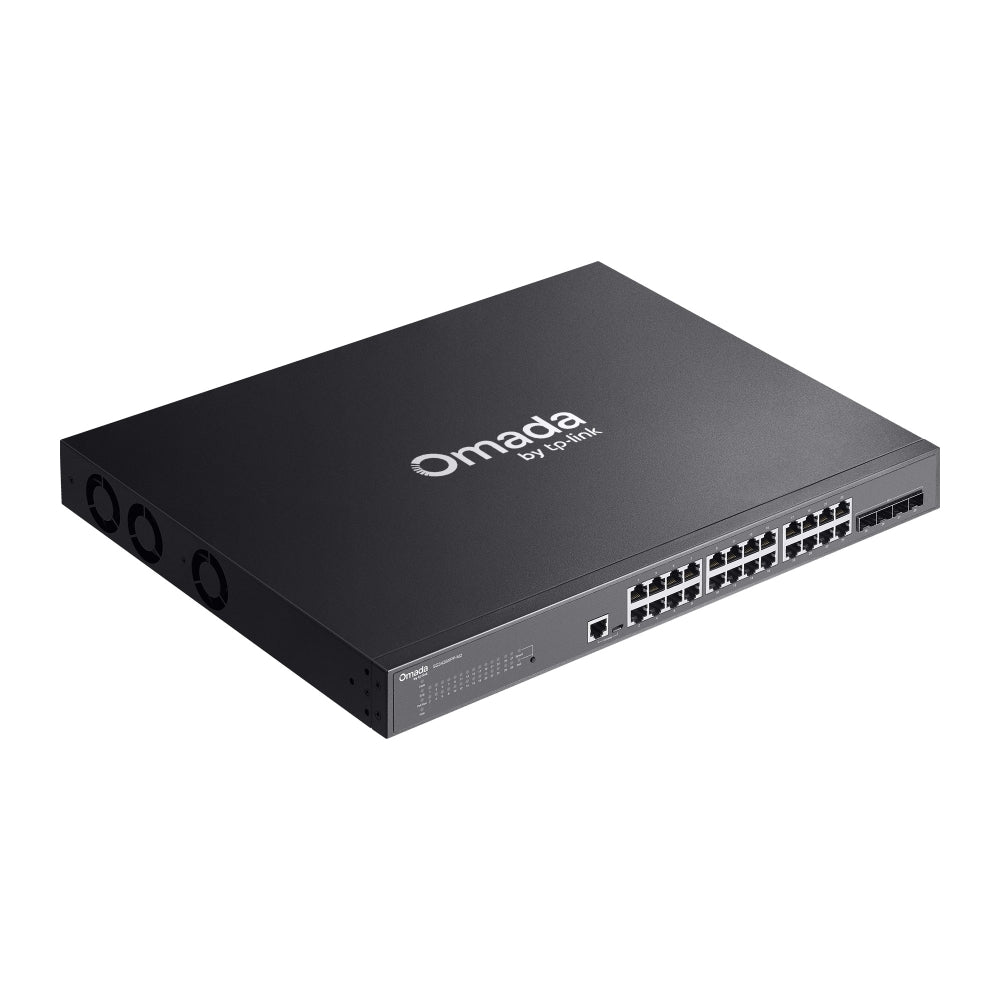

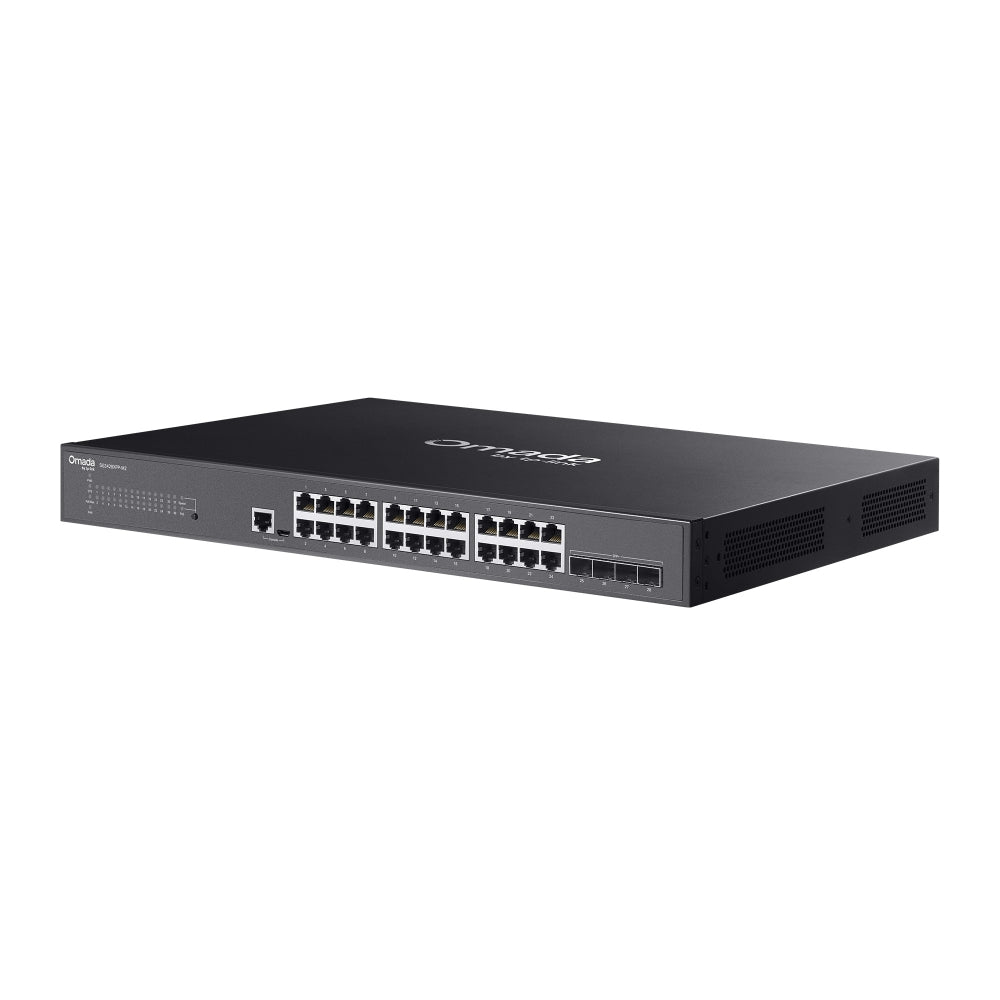

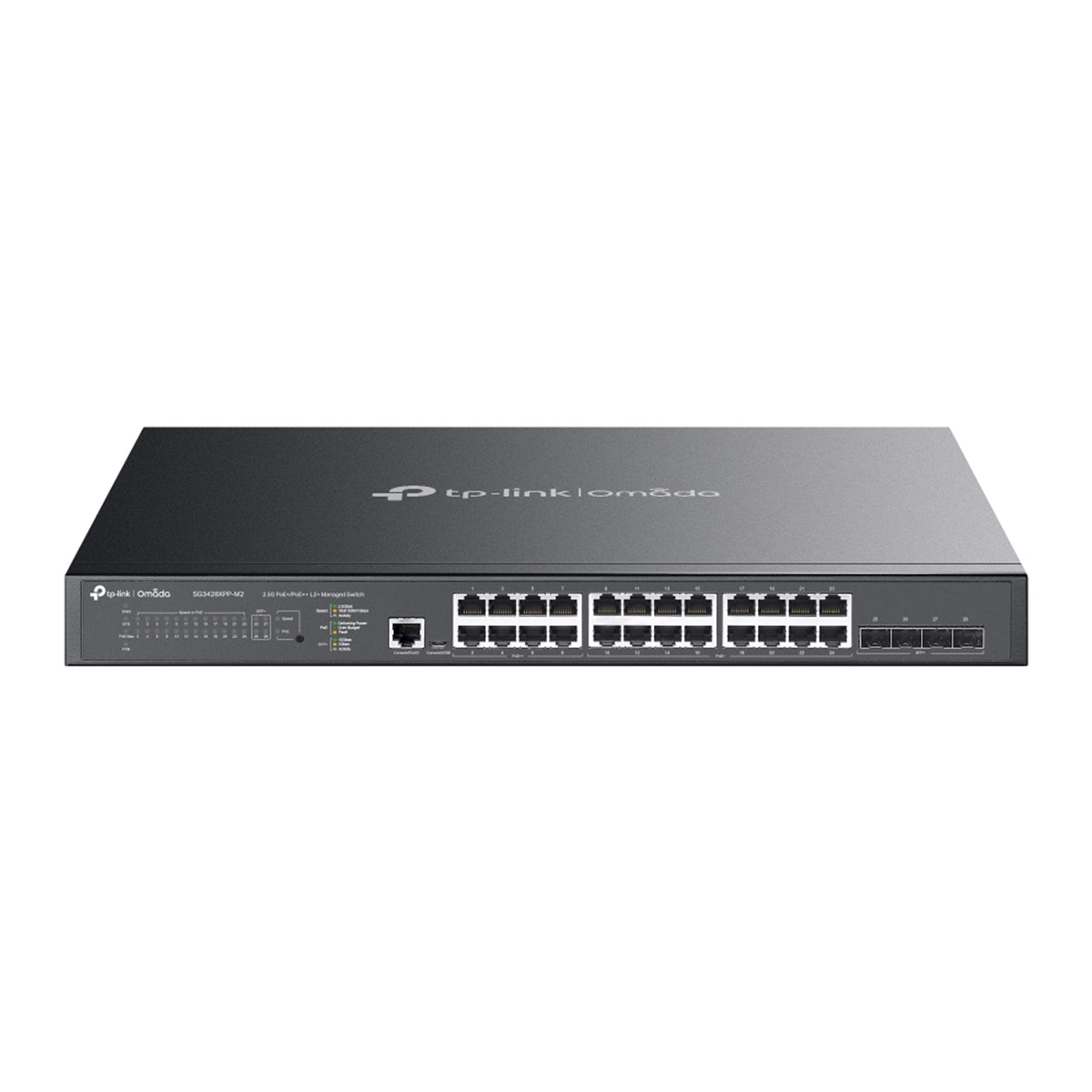

The TP-Link Omada SG3428XPP-M2 is a managed network switch for businesses upgrading wired networks for Wi-Fi 7 and other multi-gigabit devices. Its 24 copper ports provide 2.5 Gbps connectivity, with a mix of PoE+ and PoE++ to power compatible access points, cameras and phones over Ethernet.
Features
- 8x 2.5G PoE++ ports (up to 60 W PoE out per port)**
- 16x 2.5G PoE+ ports (up to 30 W PoE out per port)
- 4x 10G SFP+ slots
- 500 W total PoE budget*
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
Software Features
- Quality of Service
- 8 priority queues
- 802.1p CoS/DSCP priority
- Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
- Bandwidth Control: Port/Flow-based Rating Limiting
- Smoother Performance
- Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features
- 32 IP Interfaces: Support IPv4/IPv6 Interface
- Static Routing: 48 IPv4/IPv6 Static Routes
- Static ARP: 128 static entries
- 512 ARP Entries
- Proxy ARP
- Gratuitous ARP
- DHCP Server
- DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
- DHCP L2 Relay
- Link Aggregation
- Spanning Tree Protocol
- Loopback Detection
- 802.3x Flow Control
- Mirroring
ISP Features
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- PPPoE ID Insertion
- ERPS
- 802.3ah Ethernet Link OAM
- DDM
Specification
| Specification | Detail |
|---|---|
| Interface | 24x 2.5 Gbps RJ45 Ports (8x PoE++, 16x PoE+) 4x 10G SFP+ Slots 1x RJ45 Console Port 1x Micro-USB Console Port |
| Fan Quantity | 3 |
| Physical Security Lock | Yes |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | Standard: 802.3bt/at/af compliant PoE++ Ports (802.3bt/at/af PoE): 8 Ports, up to 60 W per port PoE+ Ports (802.3at/af PoE): 16 Ports, up to 30 W per port |
| Power Budget | 500 W |
| Dimensions ( W x D x H ) | 17.3x13.0x1.7 in (440x330x44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 629.1 W (110V/60Hz) |
| Max. Heat Dissipation | 2153.45 BTU/h (110 V/60 Hz) |
| Performance | Switching Capacity - 200 Gbps Packet Forwarding Rate - 148.80 Mpps MAC Address Table - 32 K Packet Buffer Memory - 16 Mbit Jumbo Frame - 9 KB |
| L2 Multicast | Supports 511 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP Authentication Multicast VLAN Registration (MVR) MLD Snooping Multicast Filtering: 256 profiles and 16 entries per profile Advanced Features Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule |
| VLAN | VLAN Group: Max 4K VLAN Groups 802.1q Tagged VLAN MAC VLAN: 256 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN: VLAN Mapping, VLAN Replace Voice VLAN Access Control List Time-based ACL MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS Combined ACL Packet Content ACL IPv6 ACL Policy: Mirroring, Redirect, Rate Limit, QoS Remark ACL applies to Port/VLAN |
| Security | IP-MAC-Port Binding 512 Entries DHCP Snooping ARP Inspection IPv4 Source Guard: 100 Entries IPv6-MAC-Port Binding 512 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Guard: 100 Entries DoS Defend DHCP Filter Static/Dynamic Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode 802.1X Port-based authentication Mac-base authentication VLAN Assignment MAB Guest VLAN Radius authentication and accountability support AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control IPv6 IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Web-based GUI | Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log |
| Certification | CE, FCC, RoHS |
| Package Content | SG3428XPP-M2 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux. |
| Environment | Operating Temperature: 0–40C (32–104 F); Storage Temperature: -40–70 C(-40–158 F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
-
