The TP-Link TD-W9960 is a VDSL/ADSL modem router for homes and small networks using a DSL broadband connection. It also suits a setup that connects through a fibre or cable modem, with wired and wireless access for computers, TVs, game consoles and mobile devices.

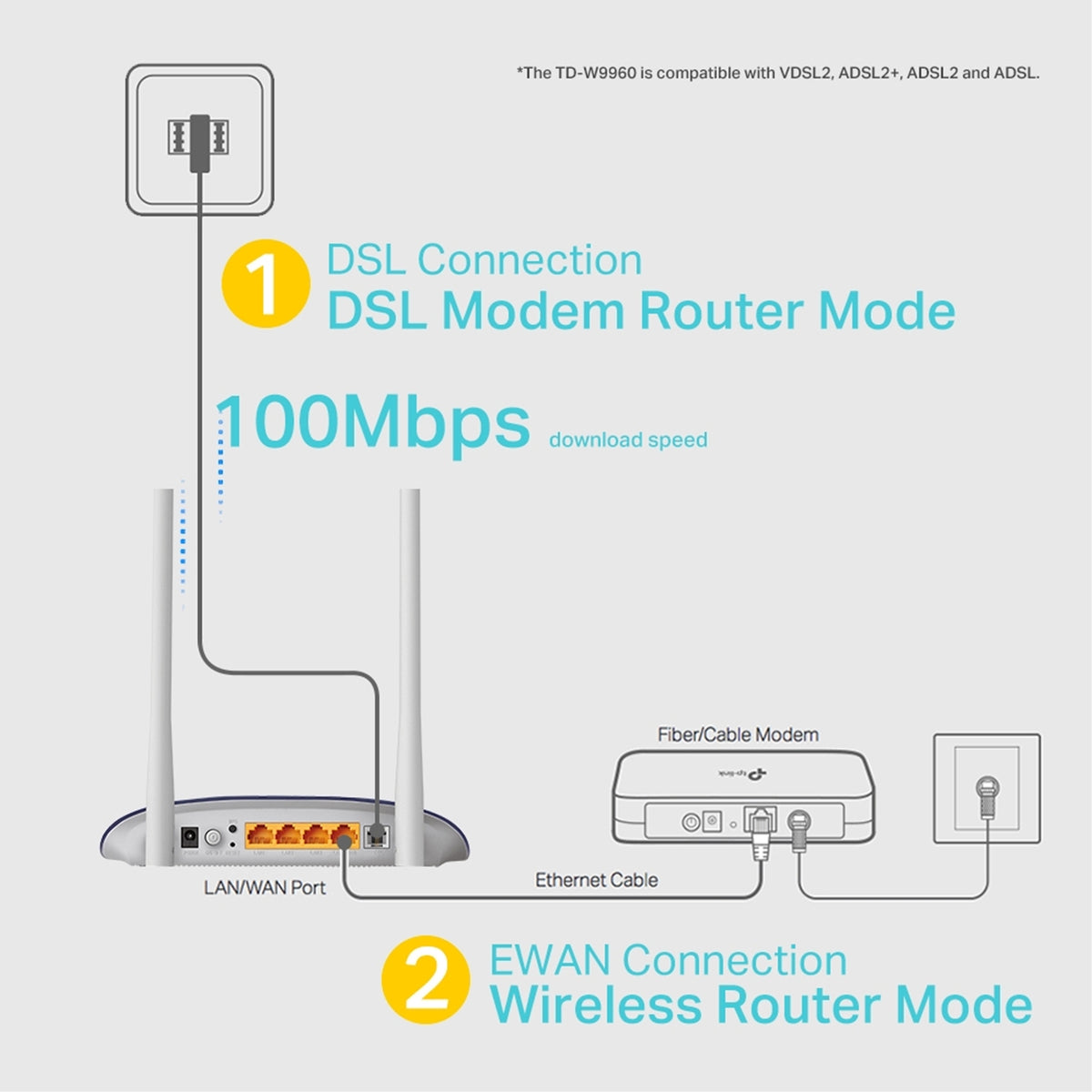

With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
Advanced Features
- Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
Management Features
- Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools
Specification
| Specification | Detail |
|---|---|
| Boosted Speeds | Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi. |
| Maximized Range | Powerful external antennas provide far-reaching wireless coverage in every direction. |
| Effortless Management | Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere. |
| Superfast VDSL Modem Router | VDSL2 technology delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections for compatibility with most ISPs. |
| Wi-Fi Speed Up to 300Mbps | With 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, the TD-W9960 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications. |
| Easy Setup and Management | Set up the TD-W9960 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are. |

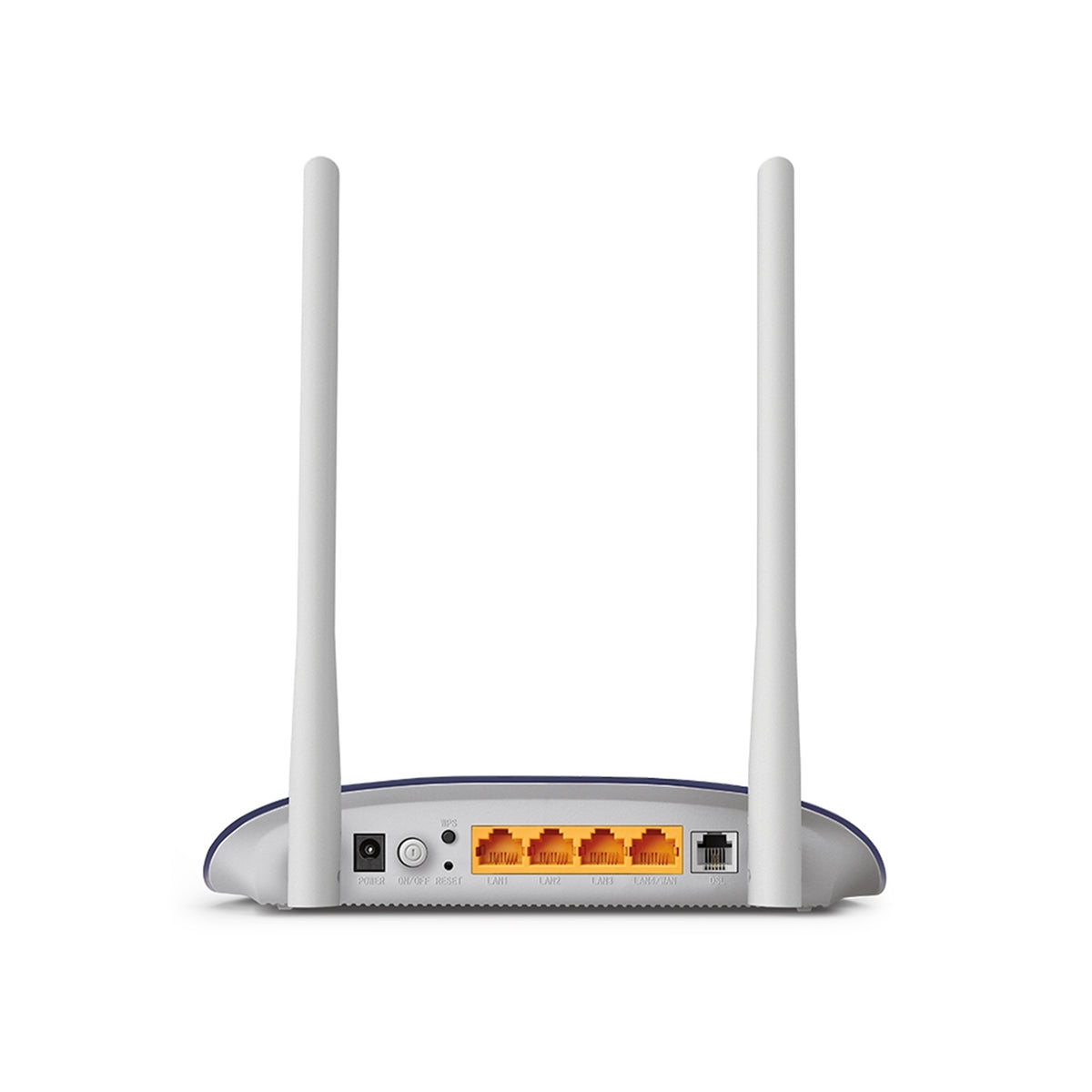

| Interface | 3x 10/100Mbps RJ45 LAN Ports 1x 10/100Mbps RJ45 LAN/WAN Port 1x RJ11 Port |
| Button | WPS Button RESET Button Power ON/OFF Button |
| External Power Supply | 9VDC/0.6A |
| IEEE Standards | IEEE 802.3, 802.3u |
| VDSL2 Standards | ITU-T G.993.2 ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
| Dimensions ( W x D x H ) | 181.6 x 129.7 x 36.2mm |
| Antenna | Omni directional, Fixed |
| Antenna Gain | 2 x 5dBi |
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Frequency | 2.400-2.4835GHz |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering |
| Transmission Power | <20dBm(EIRP) |
| Quality of Service | WMM, Bandwidth Control (IP QoS) |
| Security | NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls |
| Operating Mode | VDSL/ADSL Modem Router, Wireless Router, |
| VPN Pass-Through | IPSec VPN |
| Protocols | Supports IPv4 and IPv6 |
| ATM/PPP Protocols | PPPoE (RFC2516) PPPoA (RFC 2364) MER\IPoE (RFC 1483 Routed) IPoA (RFC1577/2225) Bridge (RFC1483 Bridge) |
| App | Tether App |
| NAT | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) Port: 67 Protocol: UDP DNS Port: 53 Protocol: TCP App management Manage and configure device through app Port: 22 Protocol: TCP Port: 20002 Protocol: TCP CWMP CPE WAN Management Protocol Port: 7553 Protocol: TCP |
| Certification | CE, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |

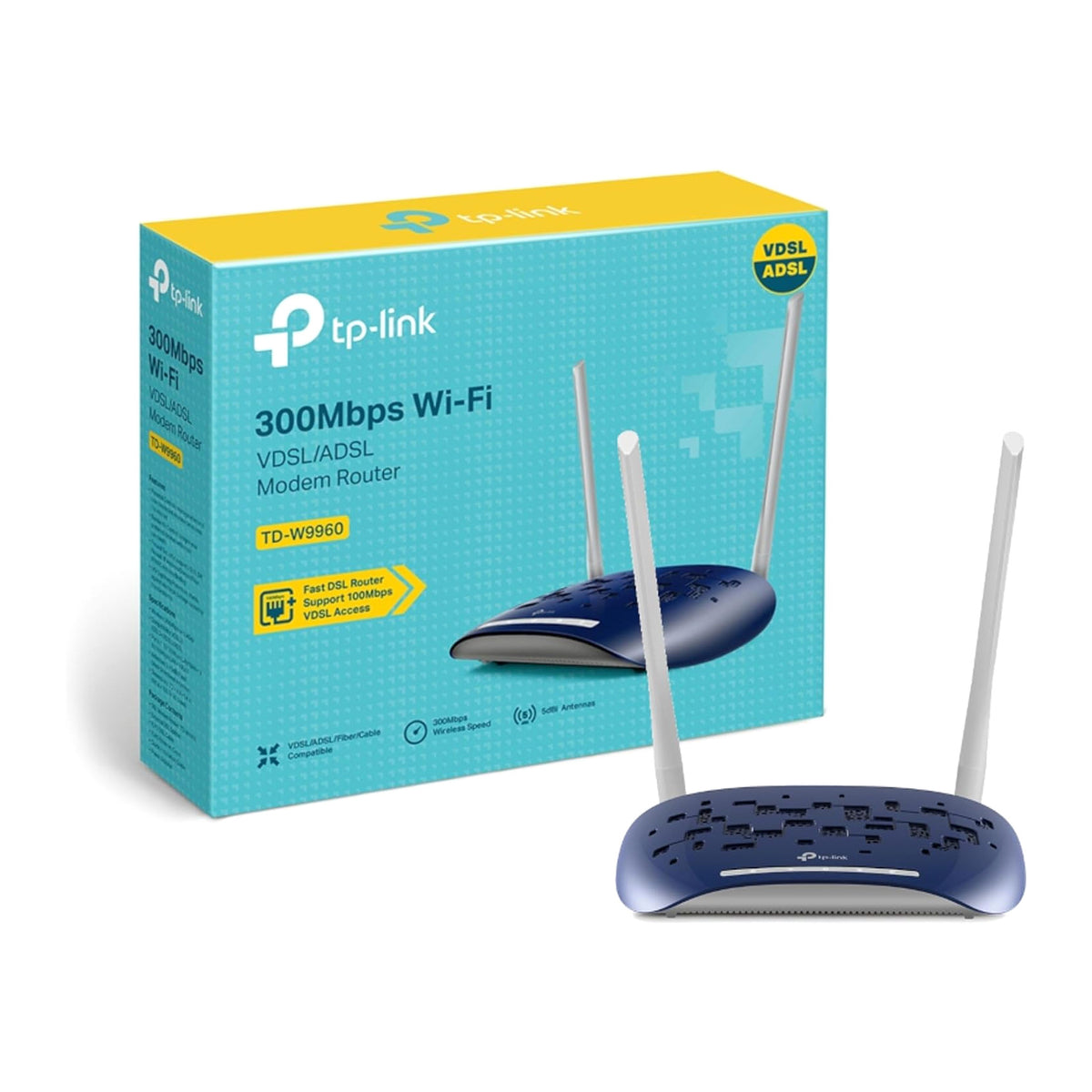

| Package Content | TD-W9960 External DSL Splitter RJ-11 DSL Cable RJ-45 Ethernet Cable Quick Installation Guide Power Adapter |
-
