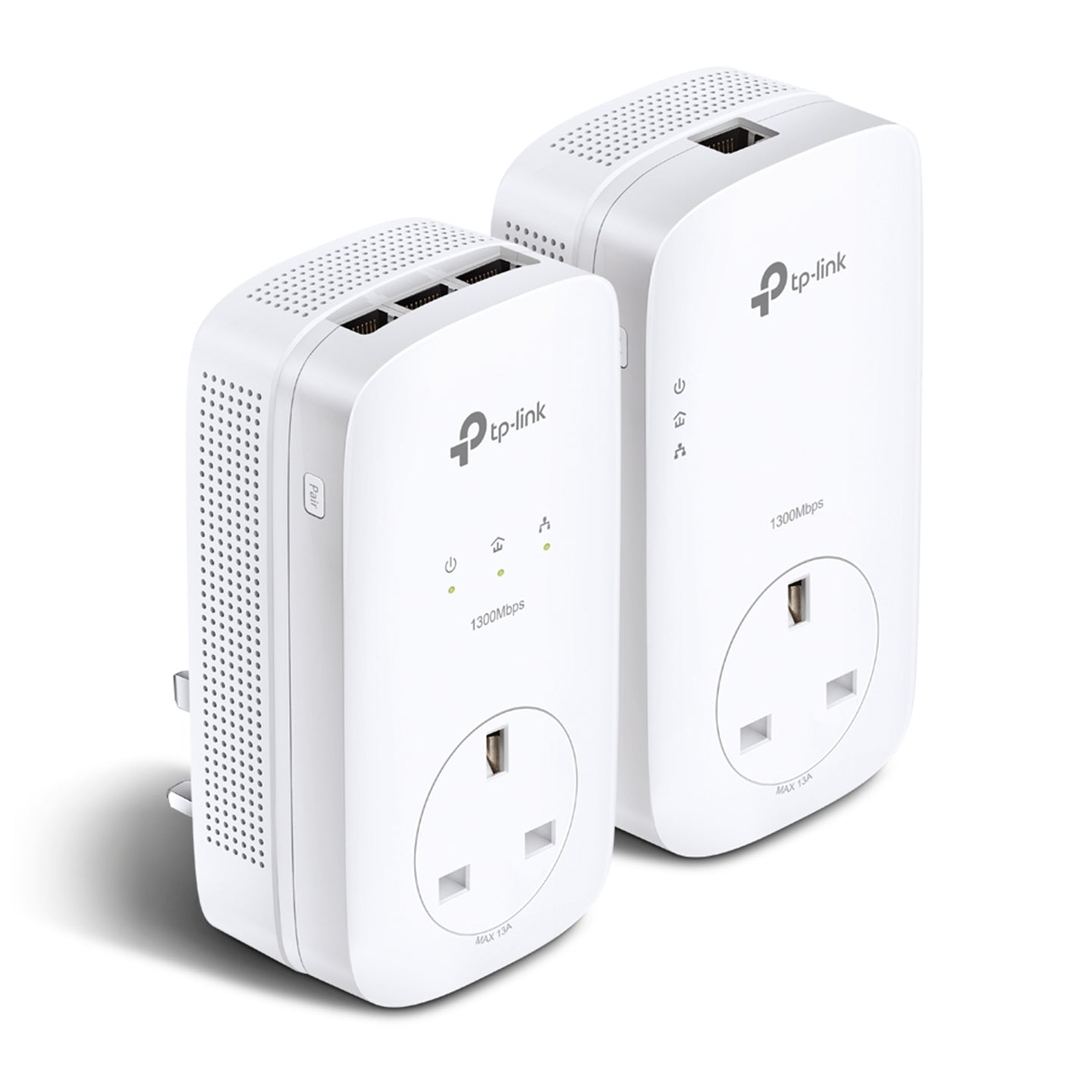

TP-Link TL-PA8033P KIT PowerLine network adapter 1300 Mbit/s Ethernet LAN White 2 pc(s)

HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1300Mbps, supports all your online needs
Line-Neutral/Line-Ground 2x2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connections
3 gigabit ports create secure wired networks for desktops, smart TVs or games consoles
Integrated power socket ensures no power outlet goes to waste
Plug and play, no configuration required
Patented Power-Saving Mode automatically reduces power consumption by up to 85%

Upgraded 1300Mbps!
Advanced HomePlug AV2 technology means the TL-PA8033P KIT supports 2x20 MIMO with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1300Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.

Larger Range
MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.

Higher Transmission Capacity & More Stable Connections
MIMO Technology means the TL-PA8033P KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.

3 Gigabit Ports for Maximum Connectivity
With 3 gigabit Ethernet ports, TL-PA8033P KIT can simultaneously connect up to 3 wired-only devices. This makes the TL-PA8033P KIT the perfect home entertainment companion. Connect any 3 devices from smart TVs and game consoles to NAS boxes and computers to the Internet at the same time. Just plug the Ethernet cable into the powerline and away you go!

Plug and Play, No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!

Extra Power Socket for Additional Devices
The integrated power socket, with power output of up to 13A, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.

Power Save by Up to 85%
TL-PA8033P KIT is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.

Specifications

Standards and Protocols
HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Interface
TL-PA8030P: 3 x Gigabit Ethernet Port, Power Socket
TL-PA8010P: 1 x Gigabit Ethernet Port, Power Socket

Button
Pair Button

Max. Power Consumption
Maximum: 5.53W
Typical: 5.32W
Standby: 1.36W

LED
Power, Powerline, Ethernet

Dimensions (W x D x H)
5.2 x 2.8 x 1.7 in. (131 x 72 x 42 mm)

Range
300 Meters over electrical circuit

Modulation Technology
OFDM (PLC)

System Requirements
Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux

Package Content
Powerline Adapter TL-PA8010P, TL-PA8030P
2 x 6.5 ft. (2 m) Ethernet Cable
Quick Installation Guide
