The TP-Link TL-POE150S is a Power over Ethernet injector for adding power to a wired network connection. It suits home and small business users who need to install an access point, IP camera or IP phone where a power socket is not available beside the device.

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Key features

  • IEEE 802.3af compliant
  • Delivers power up to 100 meters
  • Auto-determine the necessary power requirements
  • Plug-and-Play, requires no configuration
  • External power adapter supply

Specification

Specification Detail
Standards and Protocols IEEE 802.3, 802.3u, 802.3af
CSMA/CD, TCP/IP
Basic Function Compatible with IEEE 802.3af compliant PDs
Delivers power up to 100 meters
Auto-determine the necessary power requirements

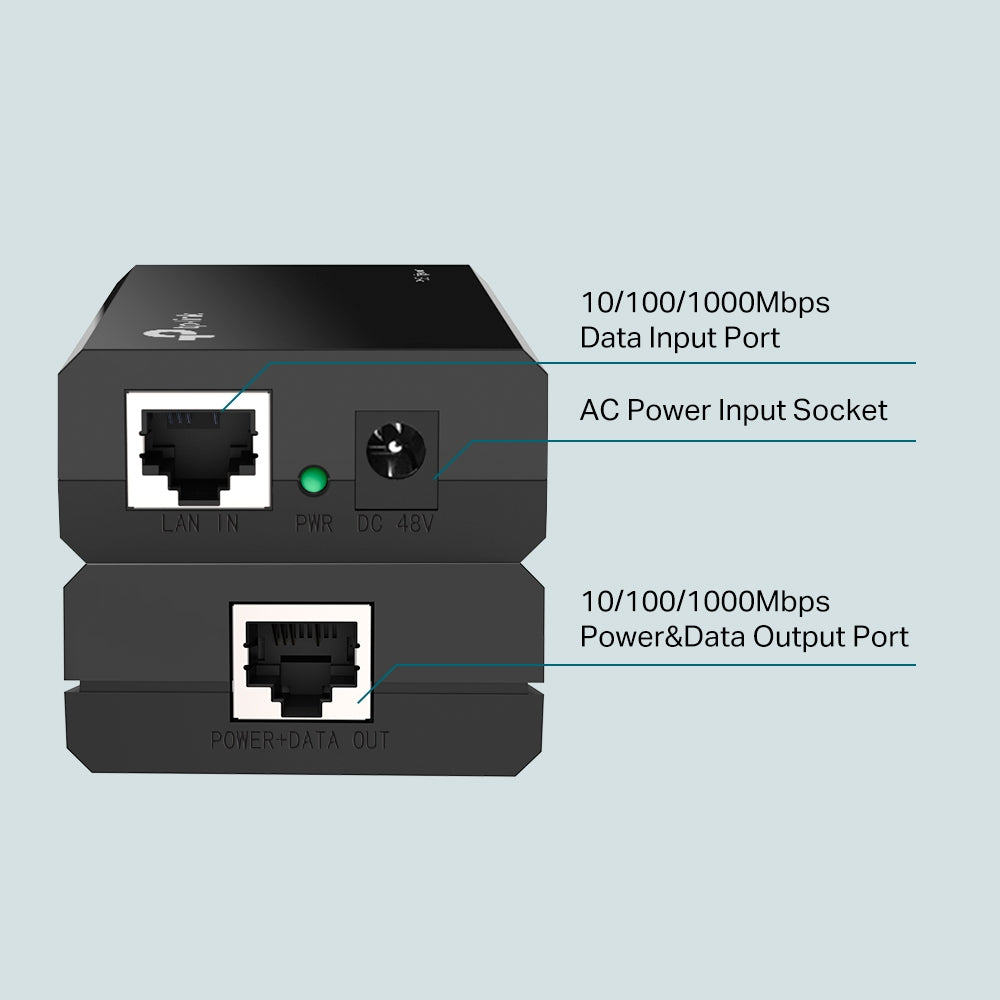

Plug-and-Play Ports LAN Port
1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)
PoE Port 1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
LED Indicator PWR
Safety & Emission FCC, CE, RoHS
Dimensions (W x D x H) 3.2 x 2.1 x 0.9 in.(80.8 x 54 x 24 mm)
Environment Operating Temperature: 0 degrees - 40 degrees
Storage Temperature: -40 degrees - 70 degrees
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing
Power Output 15.4W (Max. 48VDC)
Package Contents TL-POE150S PoE Supplier Adapter
One Ethernet (CAT.5 UTP) Cable
One Power Adapter
One Power Cable
User Guide
