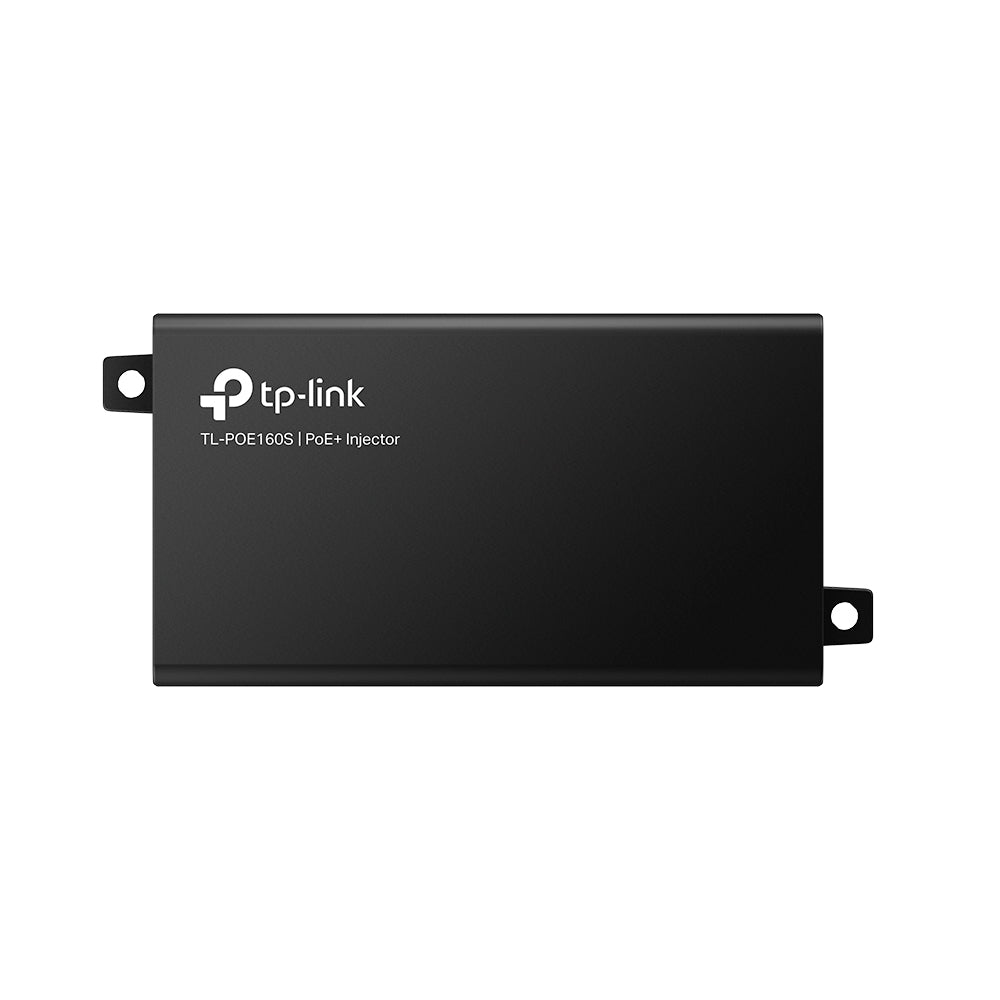

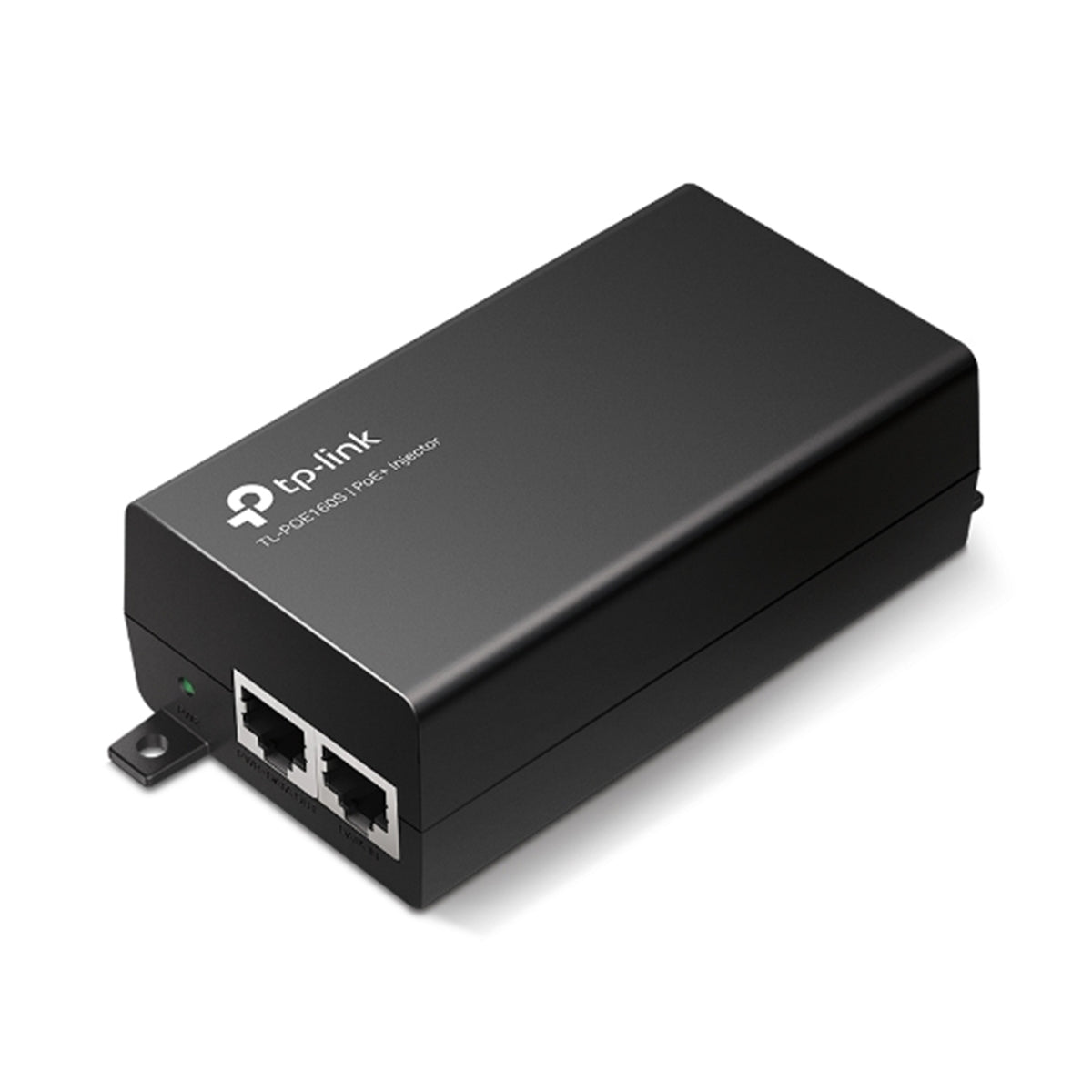

The TP-Link TL-POE160S is a Gigabit PoE+ injector for network installations where a powered device needs to be placed away from a power socket. It suits home and small business users adding a compatible access point, IP camera or IP phone where running a separate mains supply would be inconvenient.
Key features
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

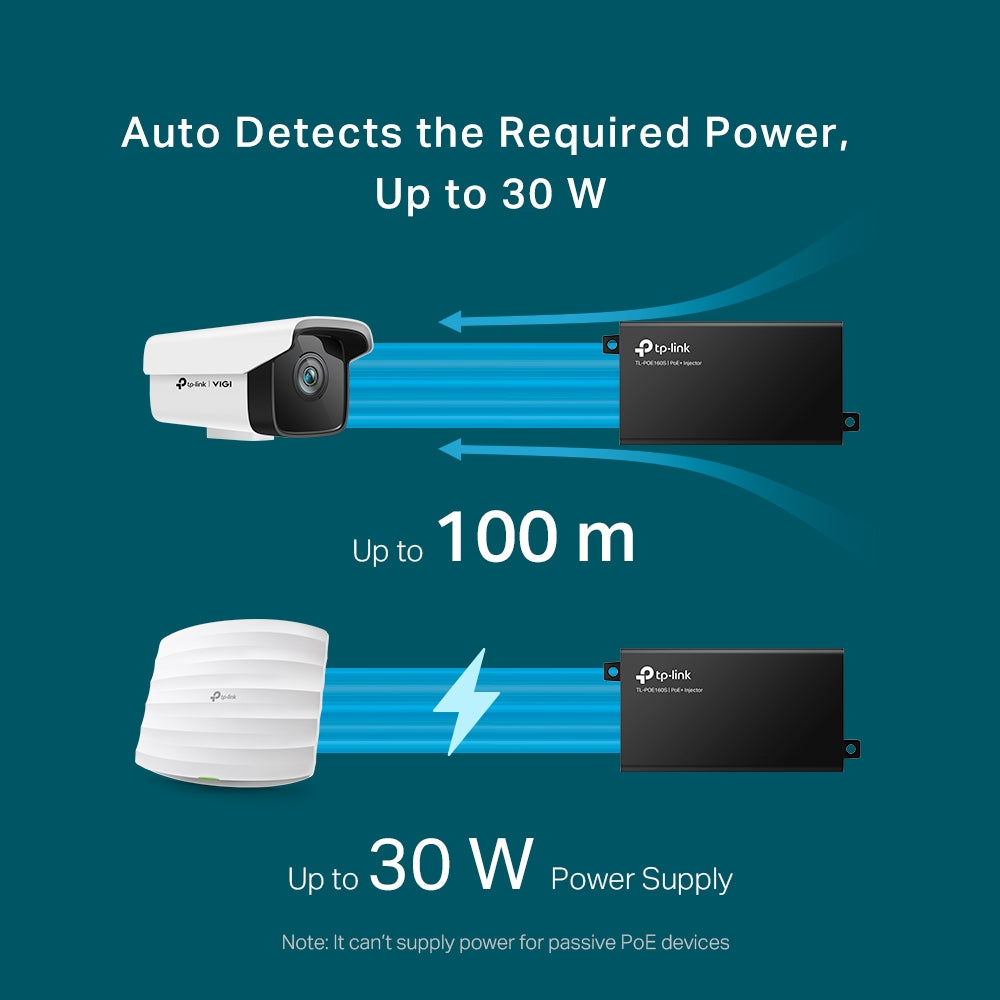

- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
Specification
| Specification | Detail |
|---|---|

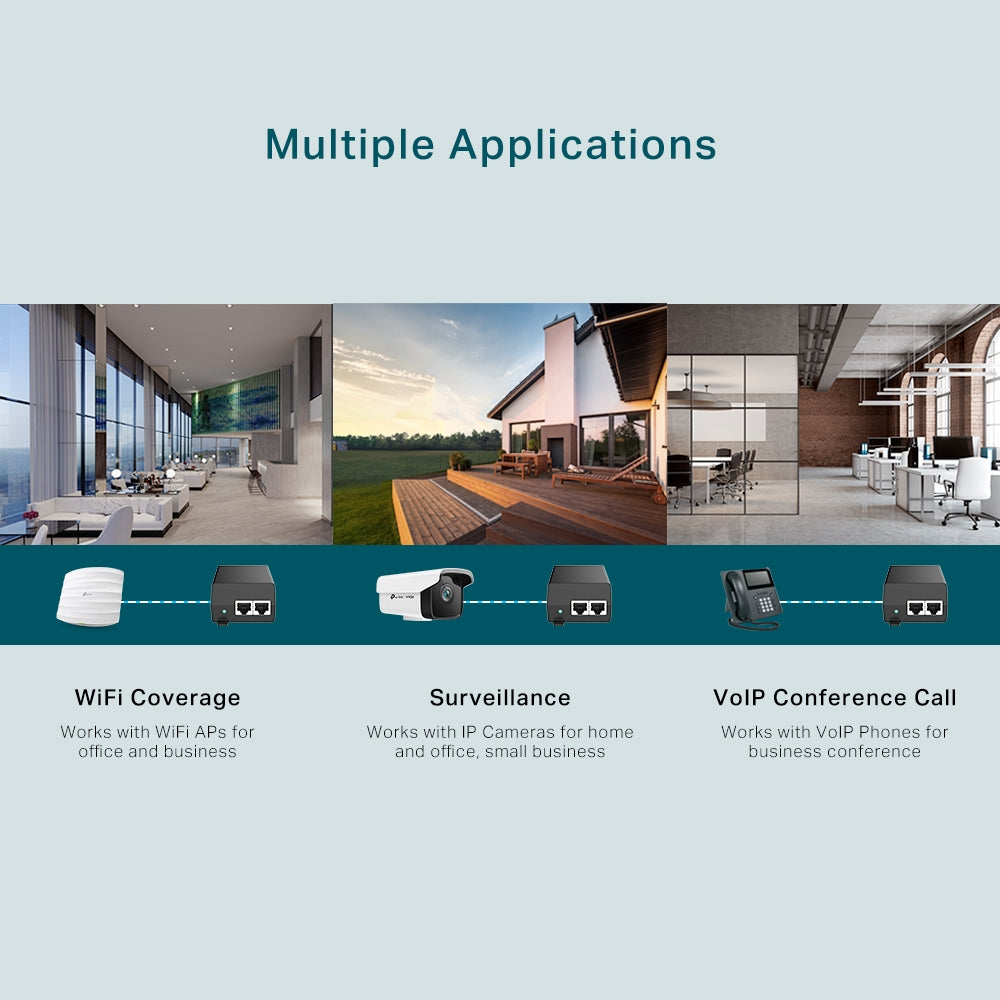

| What This Product Does | The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. |
| NETWORK | Standards and ProtocolsIEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
| Certification | FCC, CE, RoHS |
| Environment | 0°C to 40°C (32°F to 104°F) Operating Temperature Storage Temperature -40°C to 70°C (-40°F to 158°F) Operating Humidity 10% to 90%RH non-condensing Storage Humidity 5% to 90%RH non-condensing |

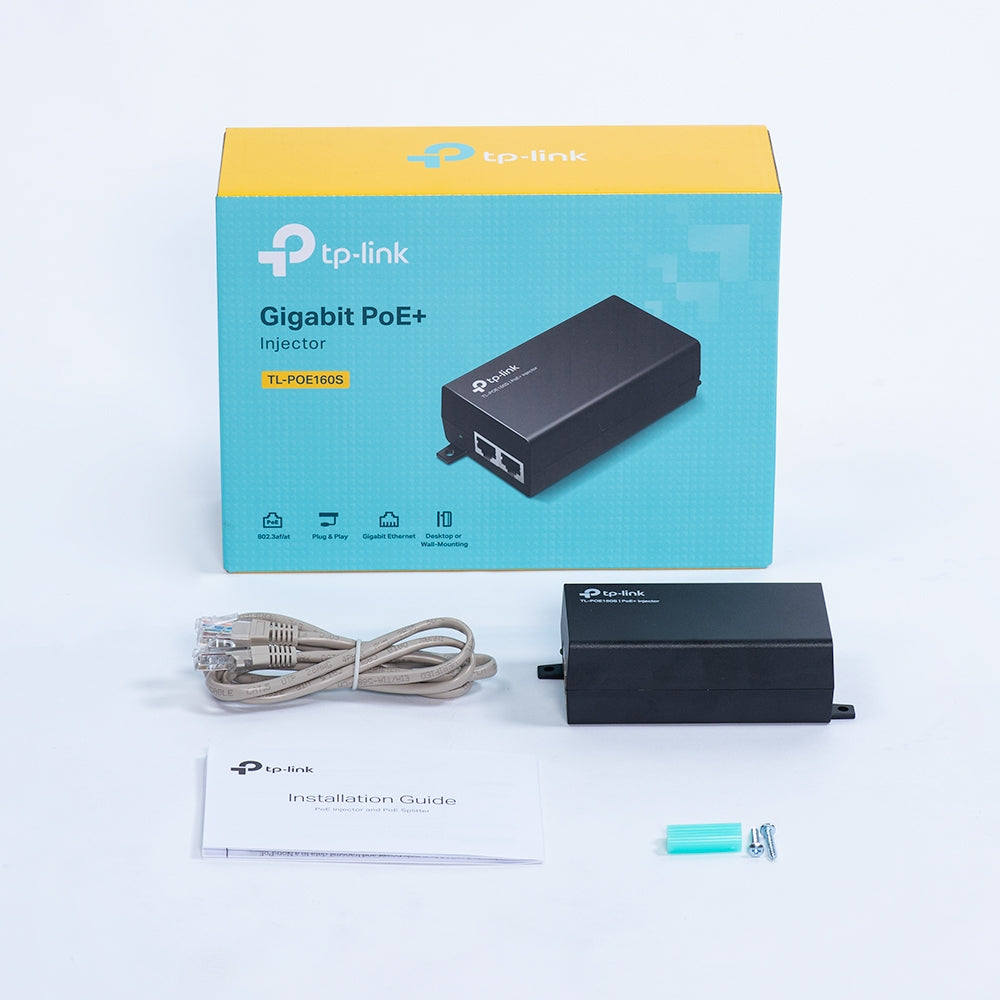

| PACKAGE CONTENTS | PoE+ Injector TL-POE160S Installation Guide Power Cord RJ45 Cable Wall Mounting Kits |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100O STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100O STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |

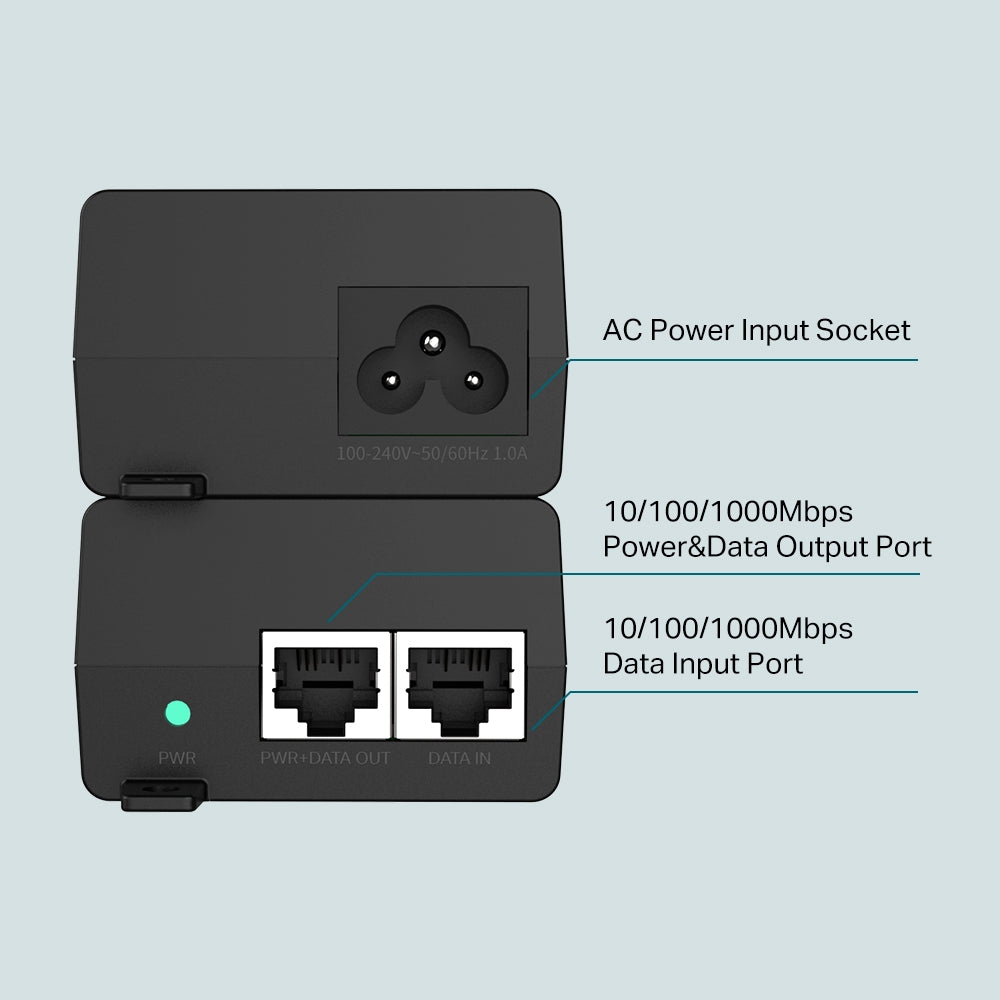

| Ports | 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
| Power Consumption | Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
| LED IndicatorON | Supplying power normally OFF: No power supply |
| Dimensions ( W x D x H ) | 4.9*2.3*1.4 in (125*59.4*36.8 mm) |
-
